Installation Procedure

WARNING: This page is about a different car, the 2003 GMC Safari and 2003 Chevrolet Astro. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the locator to the door.
    NOTE: Refer to FASTENER NOTICE in Cautions and Notices.
  2. Install the screws that retain the locator to the door.

    Tighten

    Tighten the screws that retain the locator to the door to 8 N.m (71 lb in).

  3. Install the locator to the vehicle.
  4. Install the bolts that retain the locator to the vehicle.

    Tighten

    Tighten the bolts that retain the locator to the vehicle to 8 N.m (71 lb in).

  5. Install the rear door frame garnish molding. Refer to GARNISH MOLDING REPLACEMENT - REAR UPPER in Interior Trim.

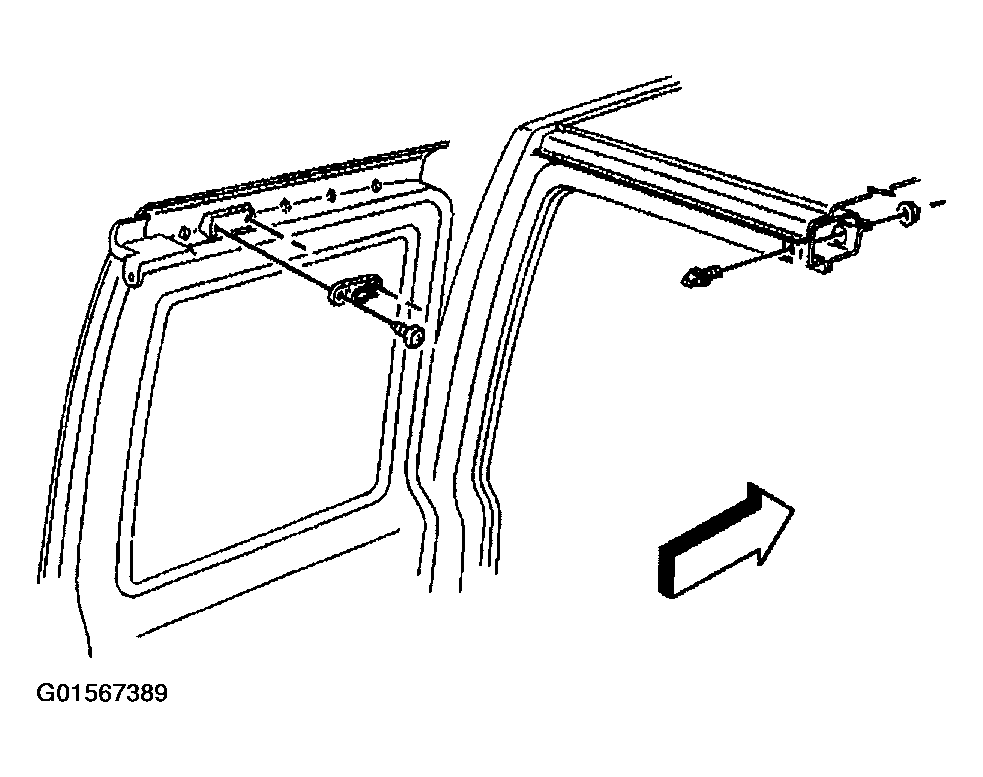

    Fig 1: Installing Upper Door Locator
    G01567389Courtesy of GENERAL MOTORS CORP.
