Door Adjustment - Rear (Cargo Doors)

WARNING: This page is about a different car, the 2003 GMC Safari and 2003 Chevrolet Astro. However, it is still accessible from the selected car via links, so may be relevant.

Important:  Door hinges on this vehicle are welded in place and the adjustment of this system is not recommended. However, with service bolt-on hinges, adjustment is possible.

  1. Loosen the left door striker first, and then the right door.
  2. Adjust the left door so that there is a 5.0 mm (0.196 in) 1.0 mm (0.039 in) gap between the door and the door frame at the top (1).

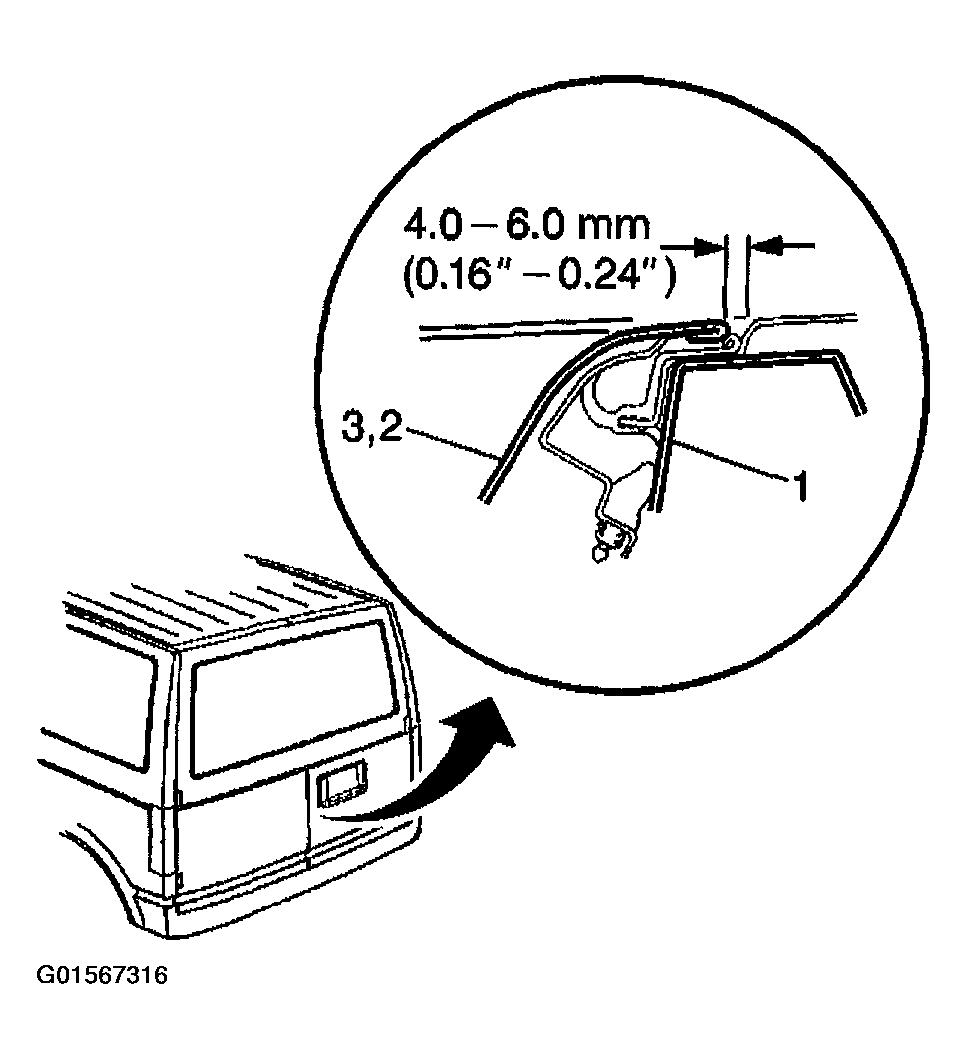

    Fig 1: Adjusting Door Hinges - Rear Cargo Doors (1 Of 7)
    G01567316Courtesy of GENERAL MOTORS CORP.
  3. Adjust the left door so that there is a 5.0 mm (0.196 in) 1.0 mm (0.039 in) gap between the door (3) and the door frame at the bottom (1).

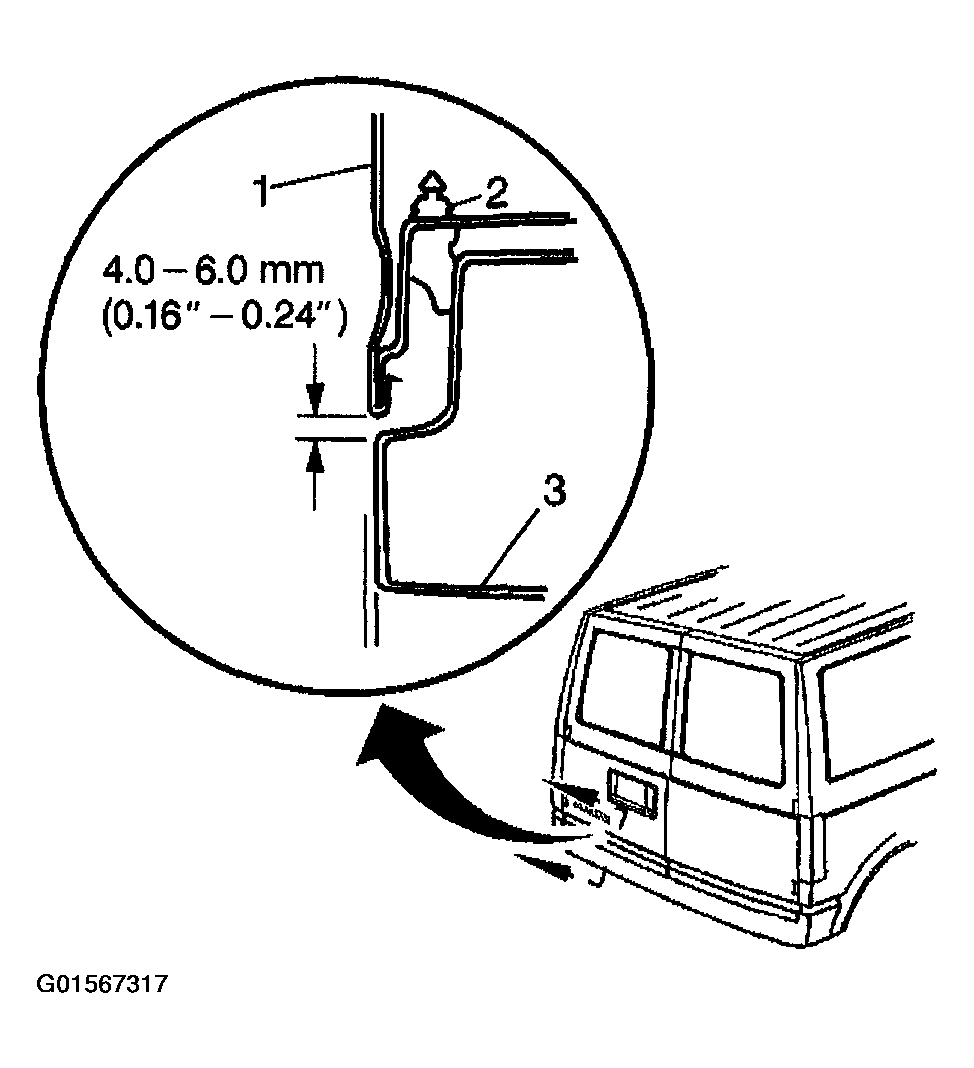

    Fig 2: Adjusting Door Hinges - Rear Cargo Doors (2 Of 7)
    G01567317Courtesy of GENERAL MOTORS CORP.
  4. Adjust the left door so that there is a 5.0 mm (0.196 in) 1.0 mm (0.039 in) gap between the door and the door frame at the side.
  5. Adjust the right door so that there is a 5.0 mm (0.196 in) 1.0 mm (0.039 in) gap between the doors (2).

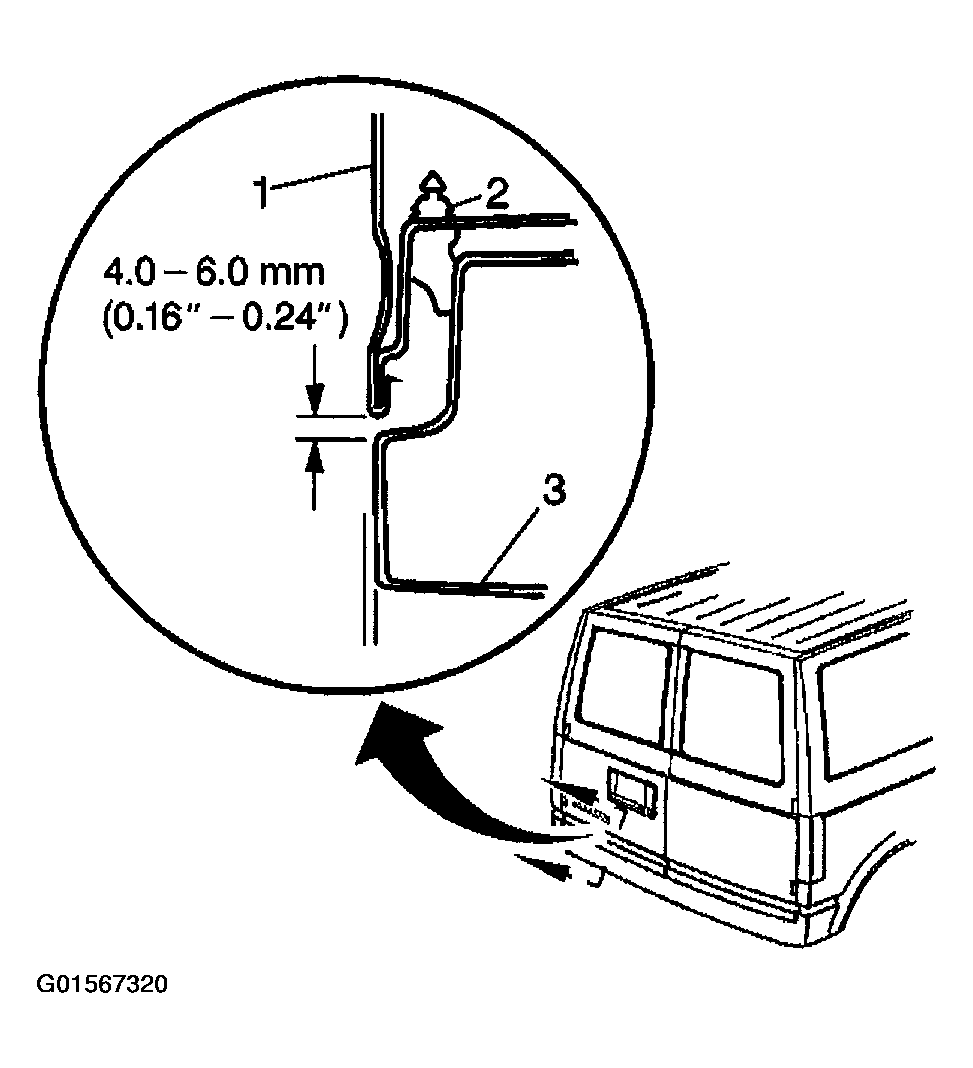

    Fig 3: Adjusting Door Hinges - Rear Cargo Doors (3 Of 7)
    G01567318Courtesy of GENERAL MOTORS CORP.
  6. Adjust the right door so that there is a 5.0 mm (0.196 in) 1.0 mm (0.039 in) gap between the right door and the door frame at the top (1).

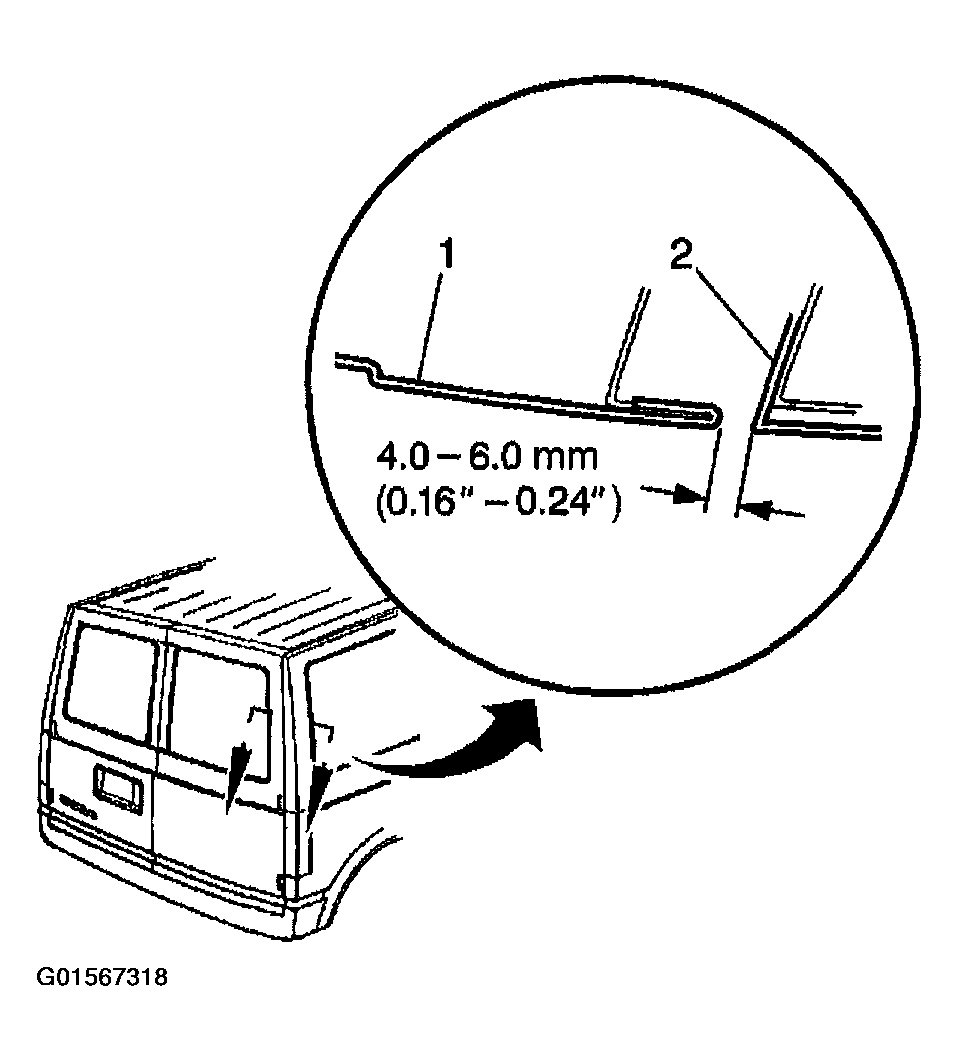

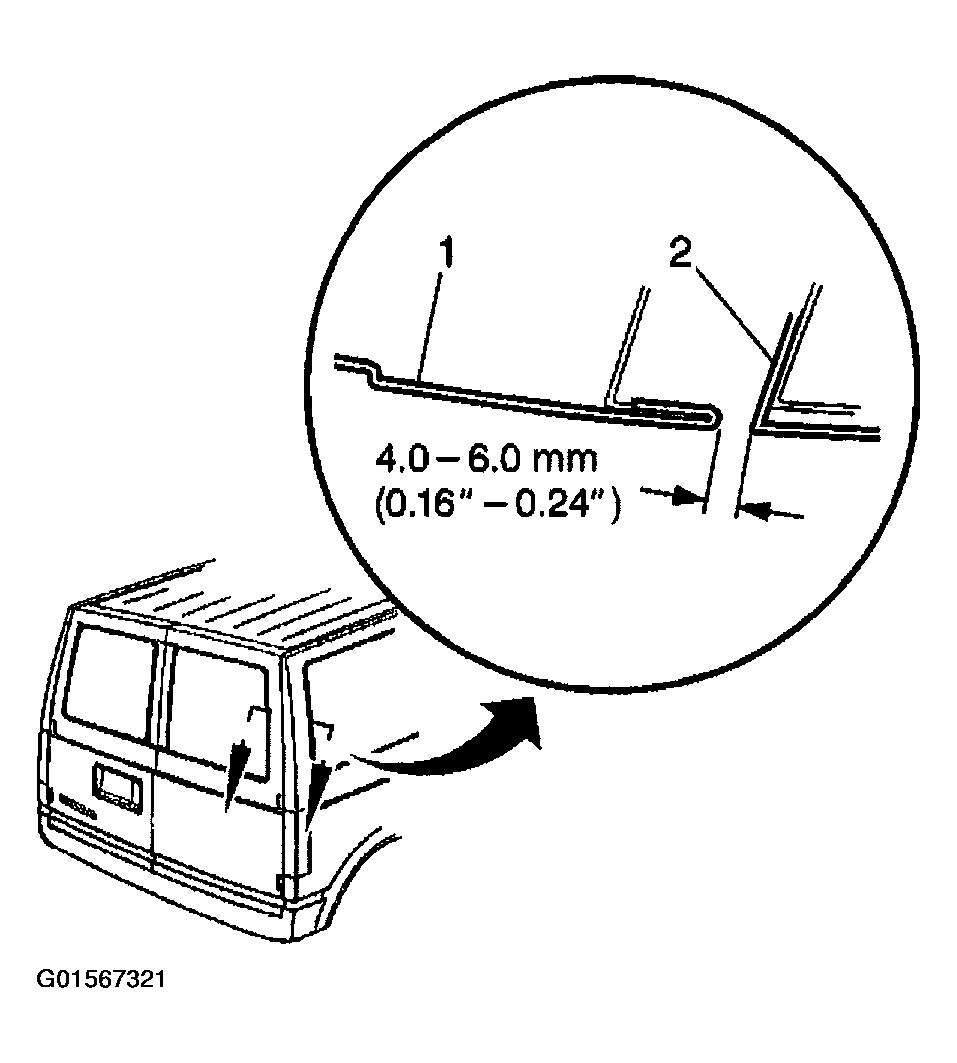

    Fig 4: Adjusting Door Hinges - Rear Cargo Doors (4 Of 7)
    G01567319Courtesy of GENERAL MOTORS CORP.
  7. Adjust the right door so that there is a 5.0 mm (0.196 in) 1.0 mm (0.039 in) gap between the right door (3) and the door frame at the bottom (1).

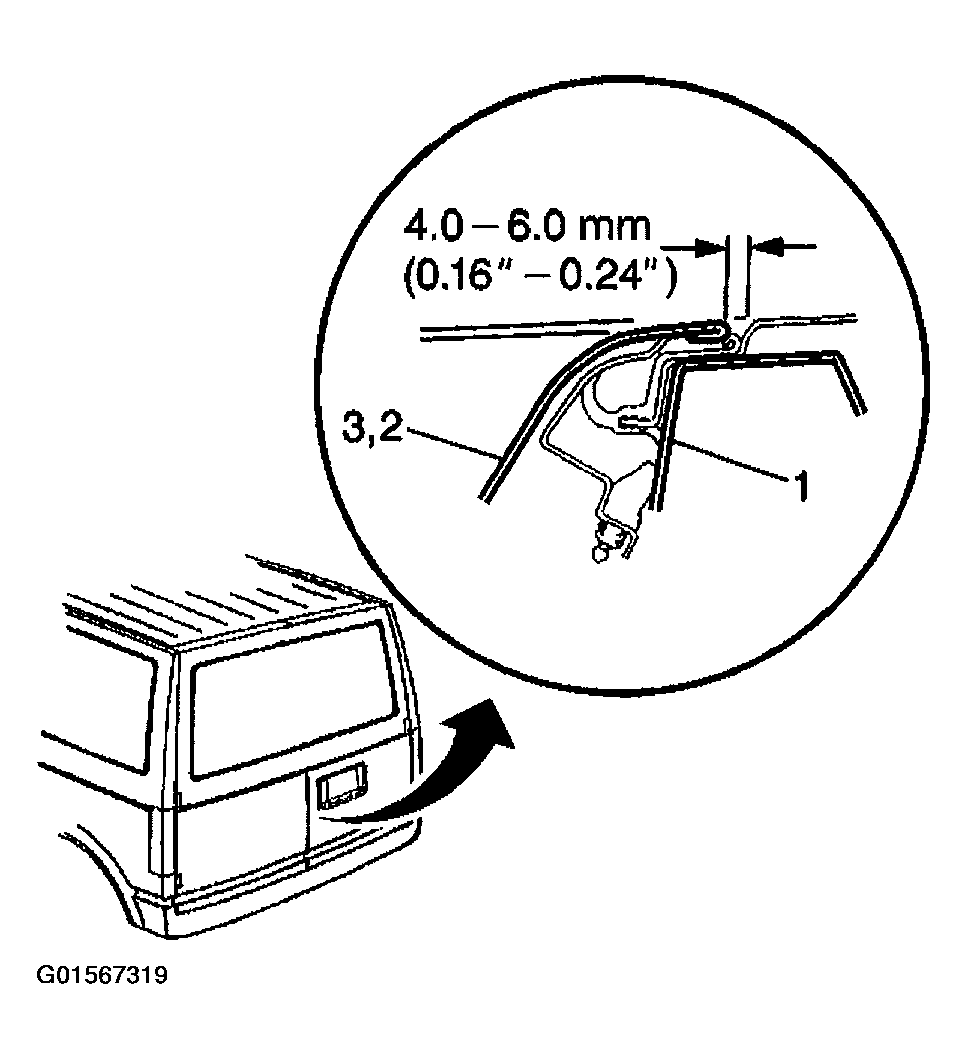

    Fig 5: Adjusting Door Hinges - Rear Cargo Doors (5 Of 7)
    G01567320Courtesy of GENERAL MOTORS CORP.
  8. Adjust the right door so that there is a 5.0 mm (0.196 in) 1.0 mm (0.039 in) gap between the right door and the door frame (2) at the side.
    Fig 6: Adjusting Door Hinges - Rear Cargo Doors (6 Of 7)
    G01567321Courtesy of GENERAL MOTORS CORP.
  9. Adjust both doors so that the surface of the doors to the door frame and each other is flush within 1.0 mm (0.039 in).
  10. Adjust the door striker in order to hold the right door flush with the left door (1) within 1.0mm (0.039 in).

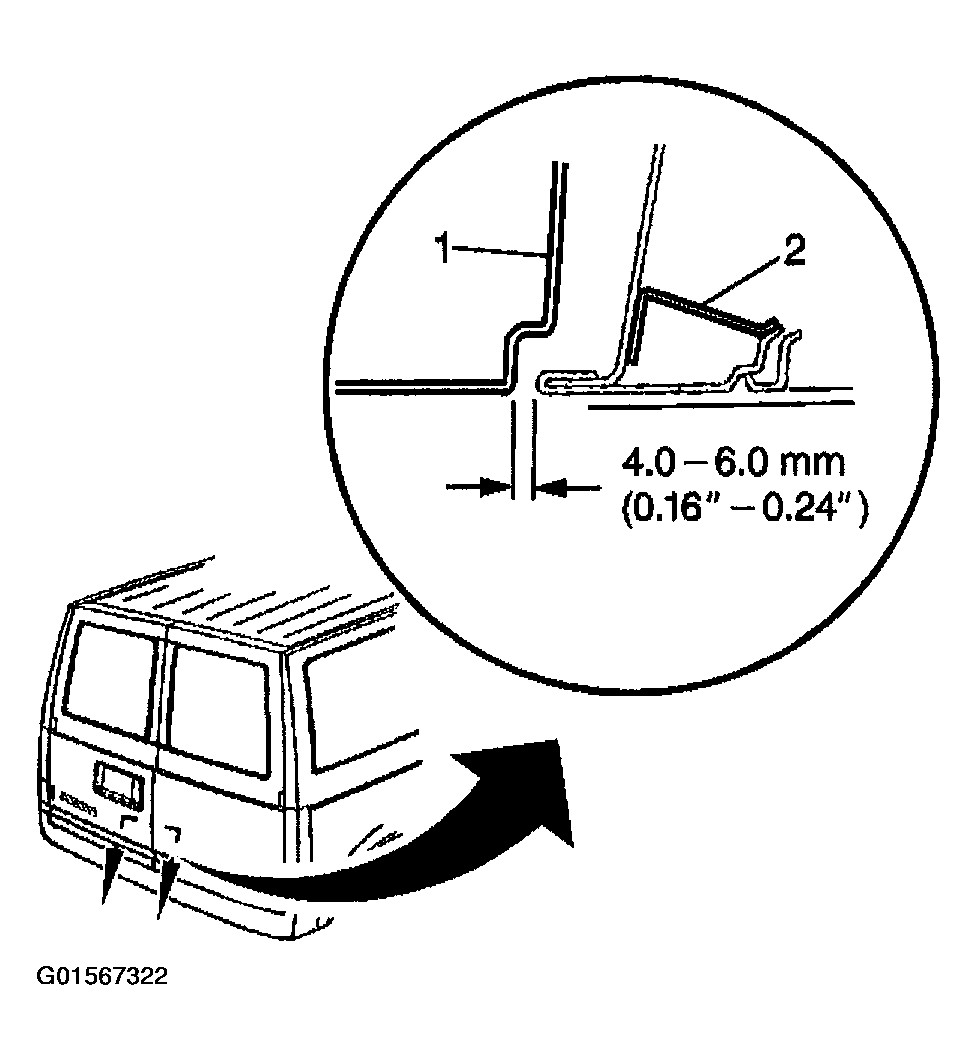

    Fig 7: Adjusting Door Hinges - Rear Cargo Doors (7 Of 7)
    G01567322Courtesy of GENERAL MOTORS CORP.
