Installation Procedure

WARNING: This page is about a different car, the 2003 GMC Safari and 2003 Chevrolet Astro. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the check link (5) to the door.
  2. Install the check link boot to the door (6).
    NOTE: Refer to FASTENER NOTICE in Cautions and Notices.
  3. Install the check link boot bolts to the door.

    Tighten

    Tighten the check link bolts to the door to 6 N.m (53 lb in).

  4. Install the check link bracket (1) and the check link lock spring.
  5. Install the check link bracket screws (2).

    Tighten

    Tighten the check link bracket screws to 4 N.m (35 lb in).

  6. Install the water deflector.
  7. Install the trim panel. Refer to TRIM PANEL REPLACEMENT - DOOR .

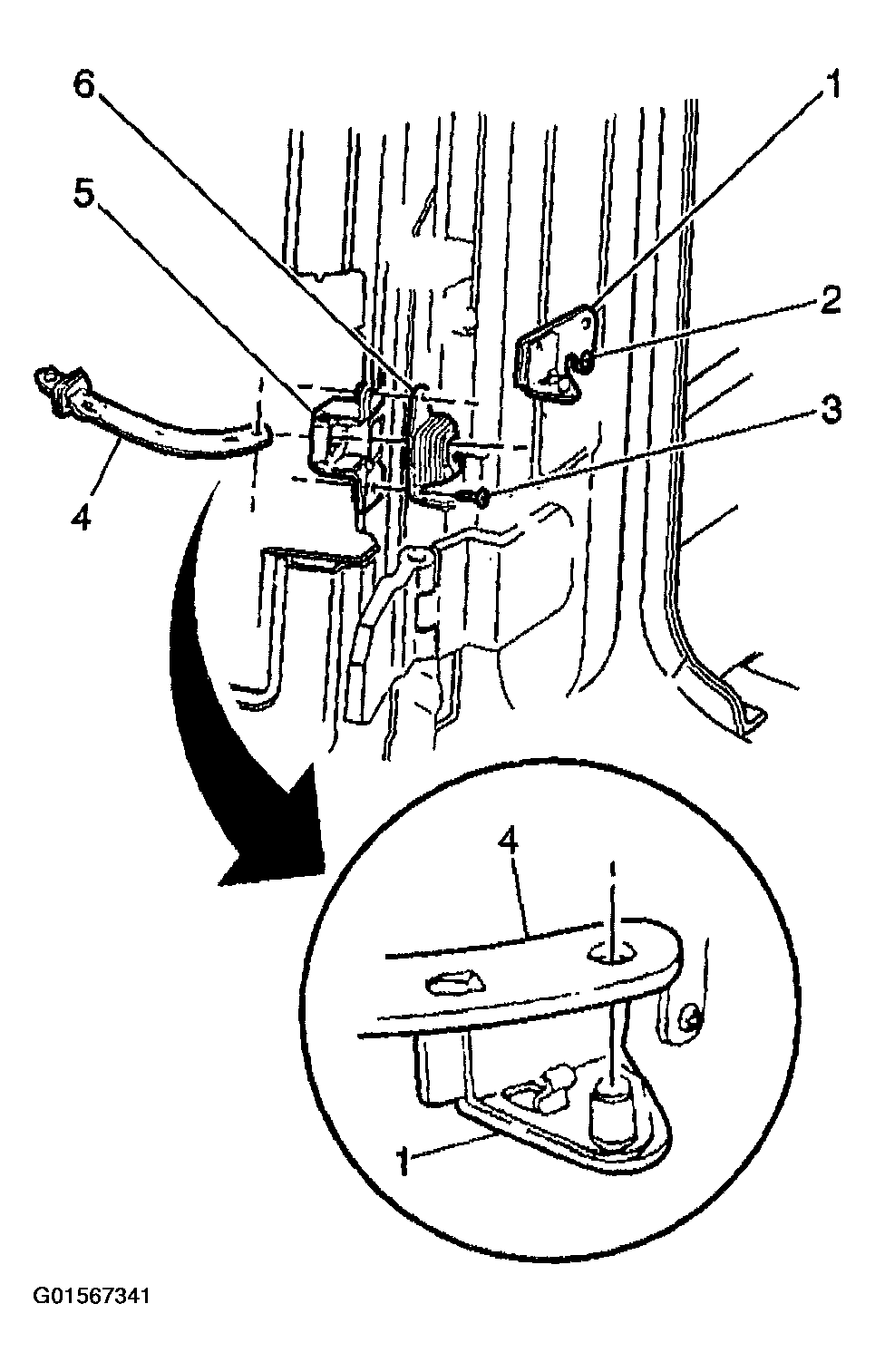

    Fig 1: Installing Rear Door (Cargo Door) Link
    G01567341Courtesy of GENERAL MOTORS CORP.
