Installation Procedure

WARNING: This page is about a different car, the 2003 GMC Safari and 2003 Chevrolet Astro. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the panel to the vehicle:
    1. 1.1. Align the C- pillar retaining clips with the holes in the body.
    2. 1.2. Press the panel in order to seat the fasteners into place.
    NOTE: Refer to FASTENER NOTICE in Cautions and Notices.
  2. Install the C- pillar retaining screw.

    Tighten

    Tighten the C- pillar retaining screw to 2 N.m (18lb in).

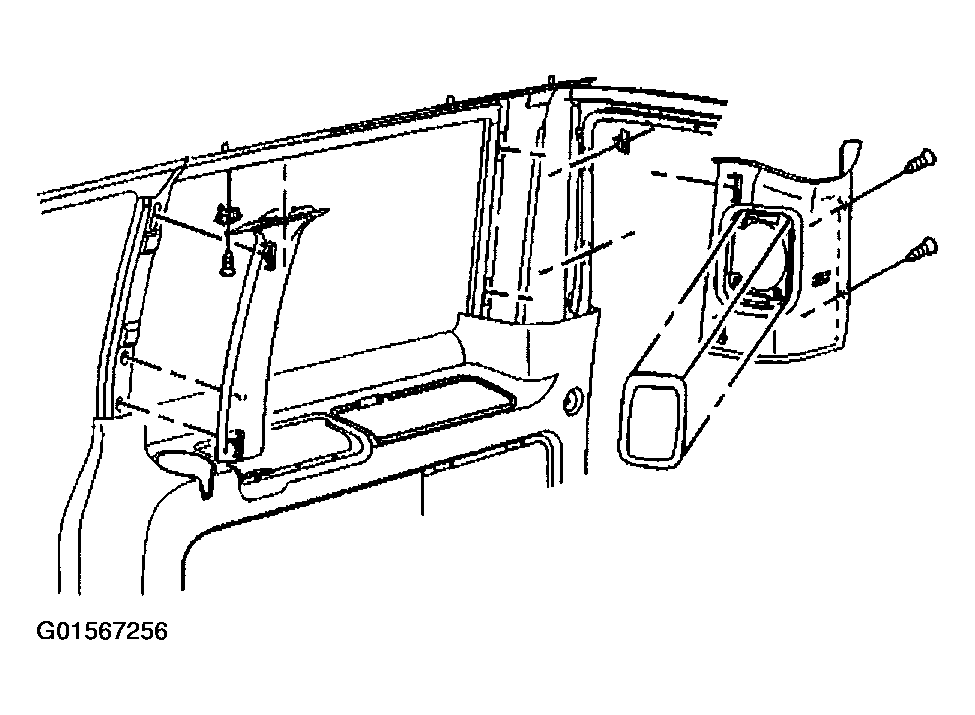

    Fig 1: Installing Third Pillar Trim - Right
    G01567256Courtesy of GENERAL MOTORS CORP.
