Installation Procedure

WARNING: This page is about a different car, the 2003 GMC Safari and 2003 Chevrolet Astro. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the panel to the vehicle:
    1. 1.1. Align the retaining clips with the holes in the body.
    2. 1.2. Press the panel in order to seat the fasteners into place.
    NOTE: Refer to FASTENER NOTICE in Cautions and Notices.
  2. Install the retaining screw.

    Tighten

    Tighten the retaining screw to 2 N.m (18 lb in).

  3. Install the seat belt upper mount. Refer to SEAT BELT SYSTEM in Seat Belts.

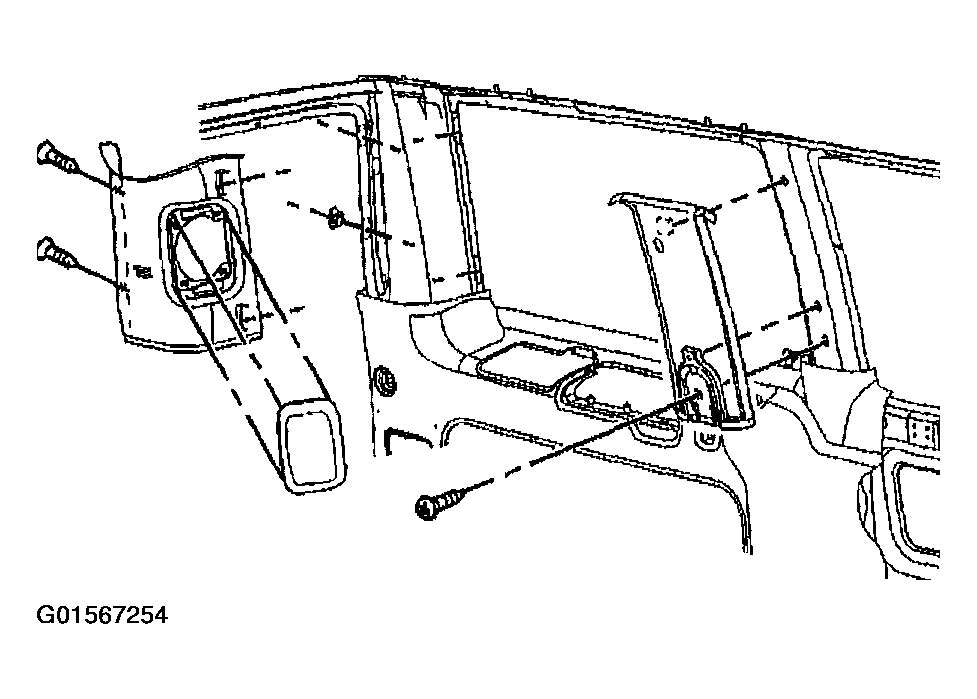

    Fig 1: Installing Third Pillar Trim - Left
    G01567254Courtesy of GENERAL MOTORS CORP.
