Installation Procedure

WARNING: This page is about a different car, the 2003 GMC Safari and 2003 Chevrolet Astro. However, it is still accessible from the selected car via links, so may be relevant.
  1. Connect the speaker electrical connector, if equipped.
  2. Install the panel to the vehicle:
    1. 2.1. Align the retaining clips with the holes in the body.
    2. 2.2. Press the panel down in order to seat the fasteners into place.
    NOTE: Refer to FASTENER NOTICE in Cautions and Notices.
  3. Install the screws to the panel in the rear door opening.

    Tighten

    Tighten the screws to the panel in the rear door opening to 2 N.m (18 lb in).

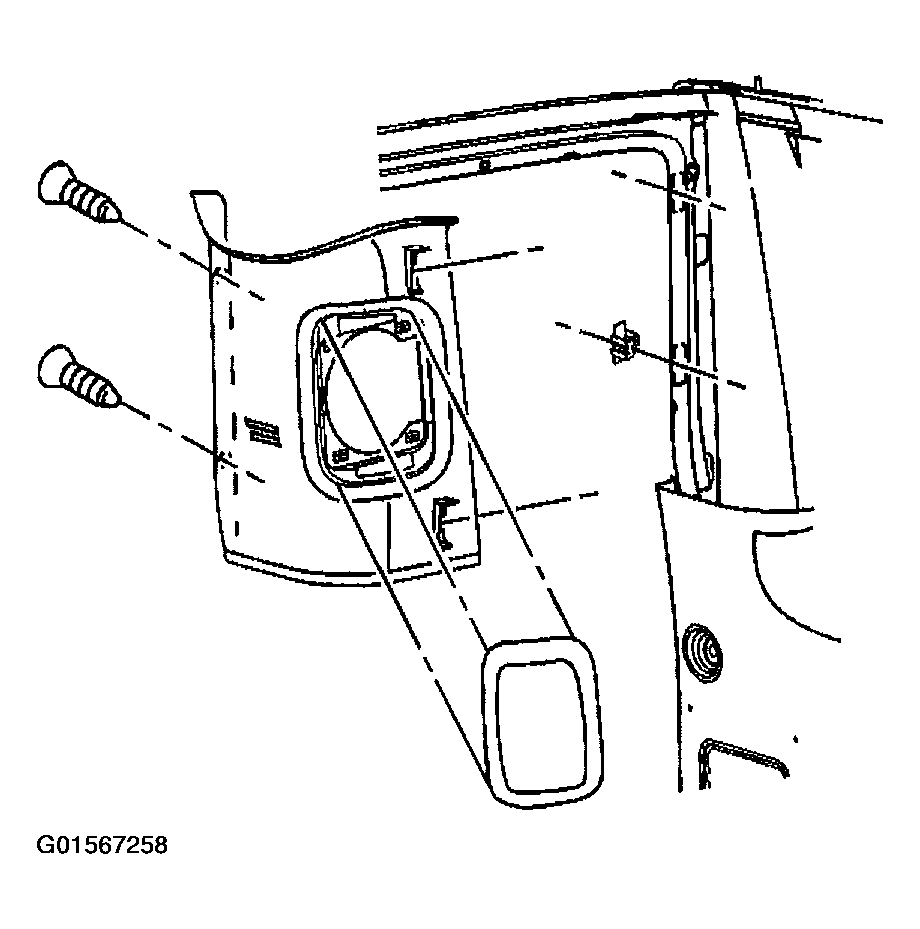

    Fig 1: Installing Fourth Pillar Trim - Left
    G01567258Courtesy of GENERAL MOTORS CORP.
