Installation Procedure

WARNING: This page is about a different car, the 2003 GMC Safari and 2003 Chevrolet Astro. However, it is still accessible from the selected car via links, so may be relevant.

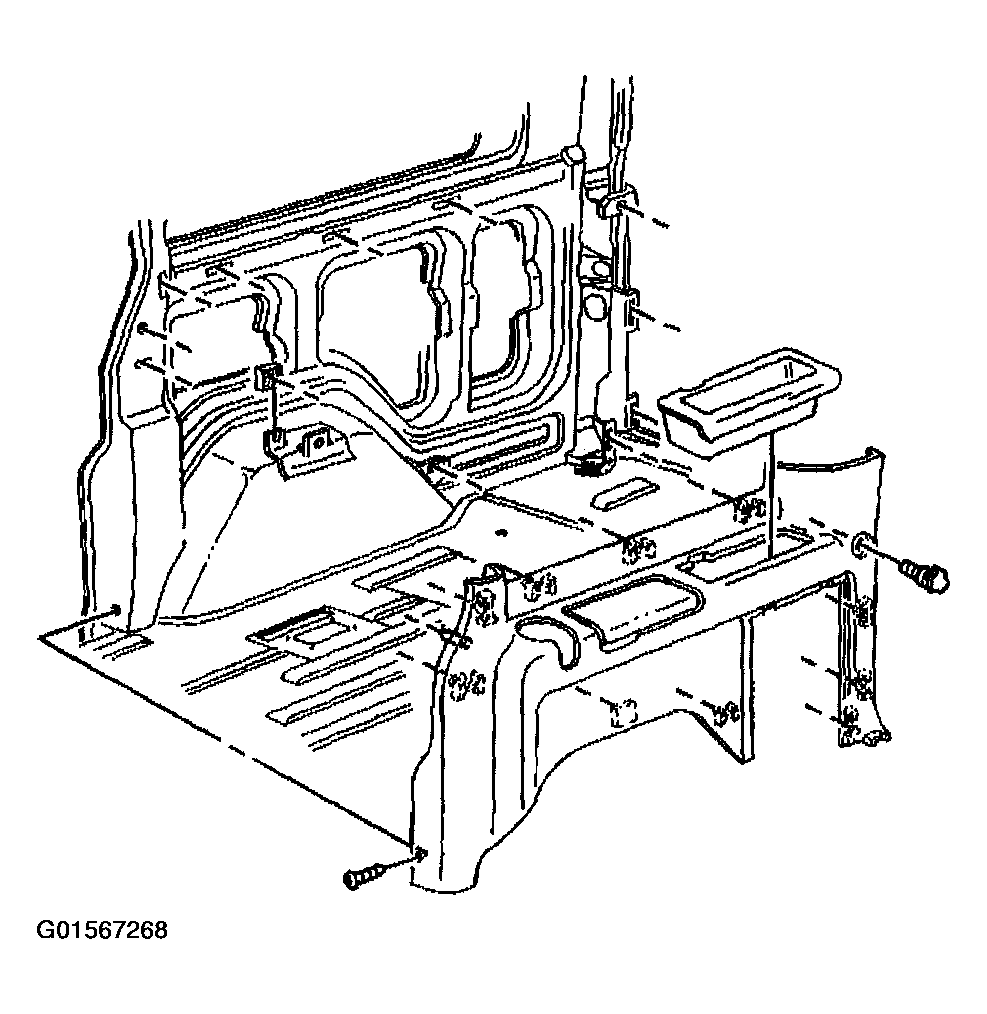

  1. Install the panel to the vehicle:
    1. 1.1. Align the retaining clips with the holes in the body.
    2. 1.2. Press the panel down in order to seat the fasteners into place.
    NOTE: Refer to FASTENER NOTICE in Cautions and Notices.
  2. Install the screw that retains the panel to the C pillar.

    Tighten

    Tighten the screw that retains the panel to the C pillar to 2 N.m (18lb in).

  3. Install the cargo net bolt.

    Tighten

    Tighten the cargo net bolt to 2 N.m (18 lb in).

  4. Install the jack access panel.
  5. Install the upper and the lower mounting bolts for the rear seat belt. Refer to SEAT BELT SYSTEM in seat belts.
  6. Install the C and the D pillar trim. Refer to the appropriate procedure:
