Installation Procedure

WARNING: This page is about a different car, the 2003 GMC Safari and 2003 Chevrolet Astro. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the panel to the vehicle.
  2. Install the retractor through the trim panel.
  3. Press the storage tray into place in order to install the storage tray to the trim panel.
  4. Install the seat belt retractor to the body side panel.
  5. Install the trim panel to the body side panel:
    1. 5.1. Align the retaining clips with the holes in the body.
    2. 5.2. Press the panel in order to seat the fasteners into place.
    NOTE: Refer to FASTENER NOTICE in Cautions and Notices.
  6. Install the cargo net bolt.

    Tighten

    Tighten the cargo net bolt to 2 N.m (18 lb in).

  7. Install the seat belt upper anchor.
  8. Remove the rear clip on the body side front lower trim panel. Refer to TRIM PANEL REPLACEMENT - BODY SIDE FRONT LOWER  .
  9. Install the rear clips on the body side front trim panel, upper and lower. Refer to TRIM PANEL REPLACEMENT BODY SIDE FRONT LOWER  and TRIM PANEL REPLACEMENT BODY SIDE FRONT UPPER  .
  10. Install the third and the fourth pillar trim. Refer to TRIM REPLACEMENT THIRD PILLAR RIGHT  and TRIM REPLACEMENT FOURTH PILLAR LEFT  .
  11. Install the quarter panel swing out window latch. Refer to STATIONARY WINDOW SYSTEM in Stationary Windows.

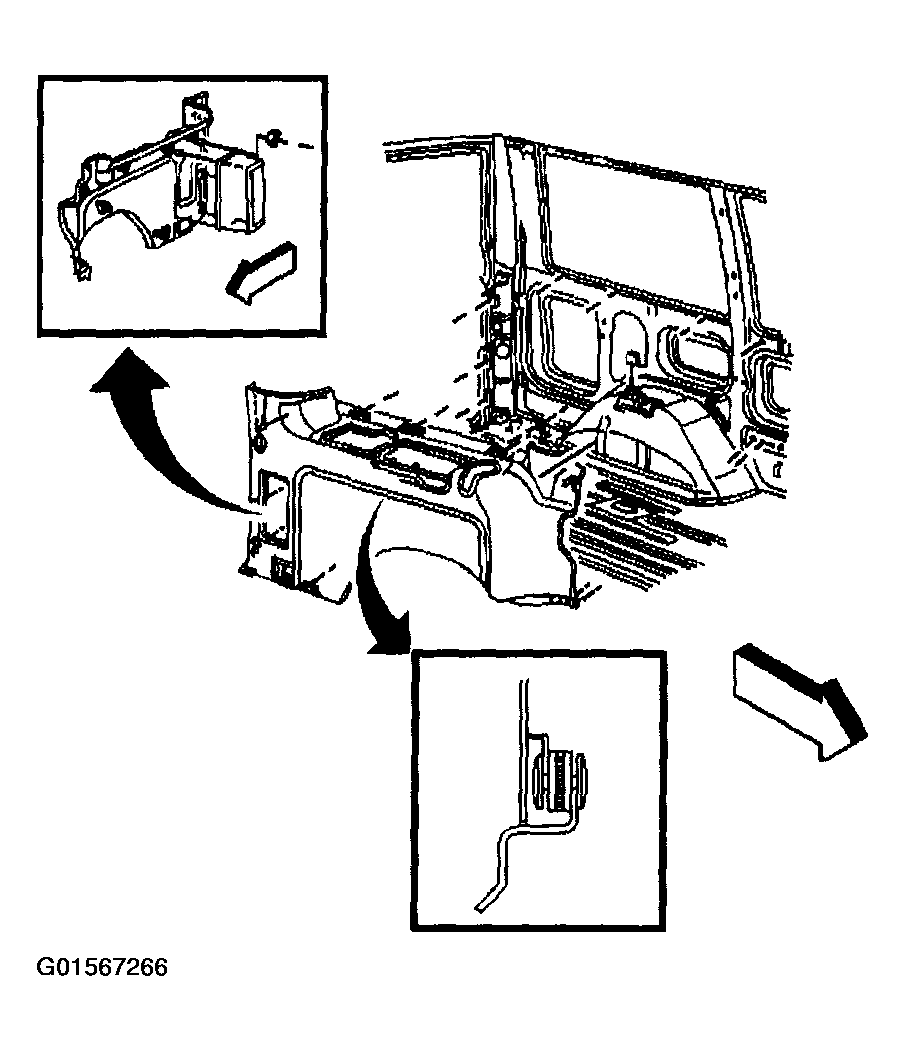

    Fig 1: Installing Trim Panel To The Vehicle (Left Body Side)
    G01567266Courtesy of GENERAL MOTORS CORP.
