Installation Procedure

WARNING: This page is about a different car, the 2003 GMC Safari and 2003 Chevrolet Astro. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the rear audio controls to the trim panel, if equipped. Refer to AUDIO CONTROL REPLACEMENT - REAR SEAT in Entertainment.
  2. Connect the electrical connector to the rear audio controls.
  3. Install the body side front upper trim panel to the vehicle:
    1. 3.1. Align the retaining clips with the holes in the body.
    2. 3.2. Press the panel in order to seat the fasteners into place.
    NOTE: Refer to FASTENER NOTICE in Cautions and Notices.
  4. Install the retaining screw to the B pillar.

    Tighten

    Tighten the retaining screw to the B pillar to 2 N.m (18lb in).

  5. Install the intermediate swing-out window latch. Refer to STATIONARY WINDOW SYSTEM in Stationary Windows.
  6. Install the body side front lower trim panel. Refer to TRIM PANEL REPLACEMENT BODY SIDE FRONT LOWER .

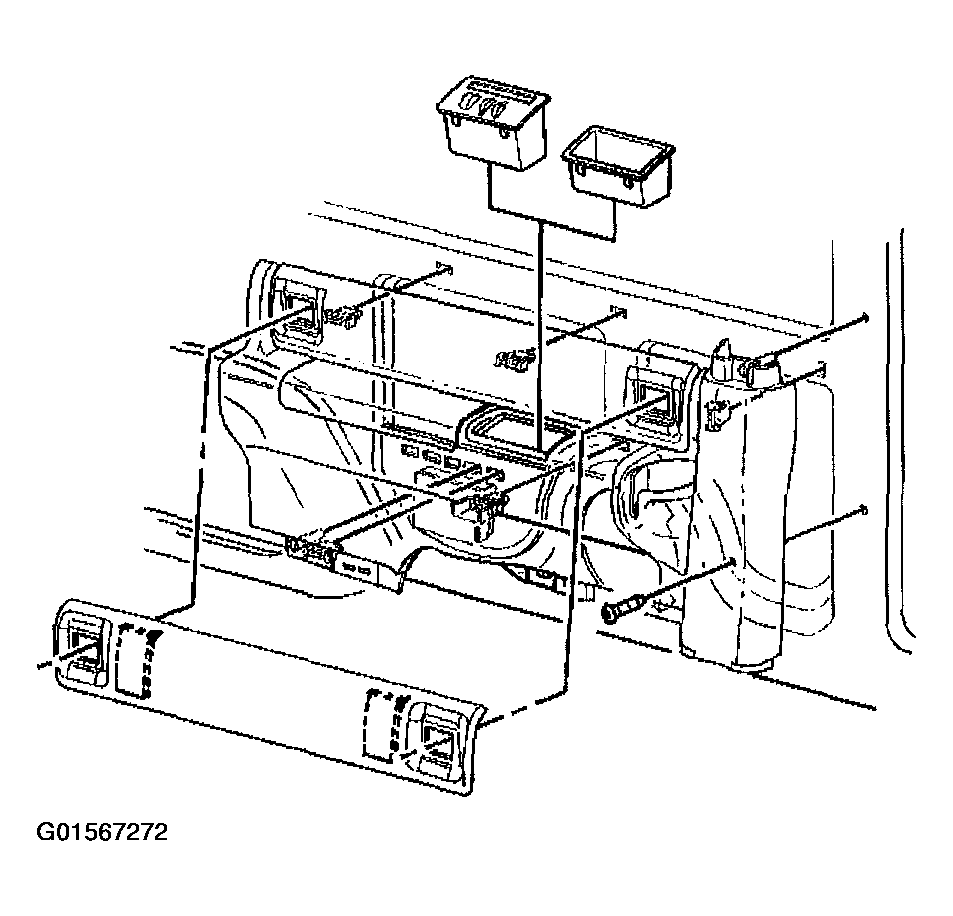

    Fig 1: Installing Body Side Front Upper Trim Panel
    G01567272Courtesy of GENERAL MOTORS CORP.
