Installation Procedure

WARNING: This page is about a different car, the 2003 GMC Safari and 2003 Chevrolet Astro. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the trim panel to the vehicle.
    NOTE: Refer to FASTENER NOTICE in Cautions and Notices.
  2. Install the screws that retain the trim panel to the cowl side.

    Tighten

    Tighten the screws that retain the trim panel to the cowl side to 2 N.m (18 lb in).

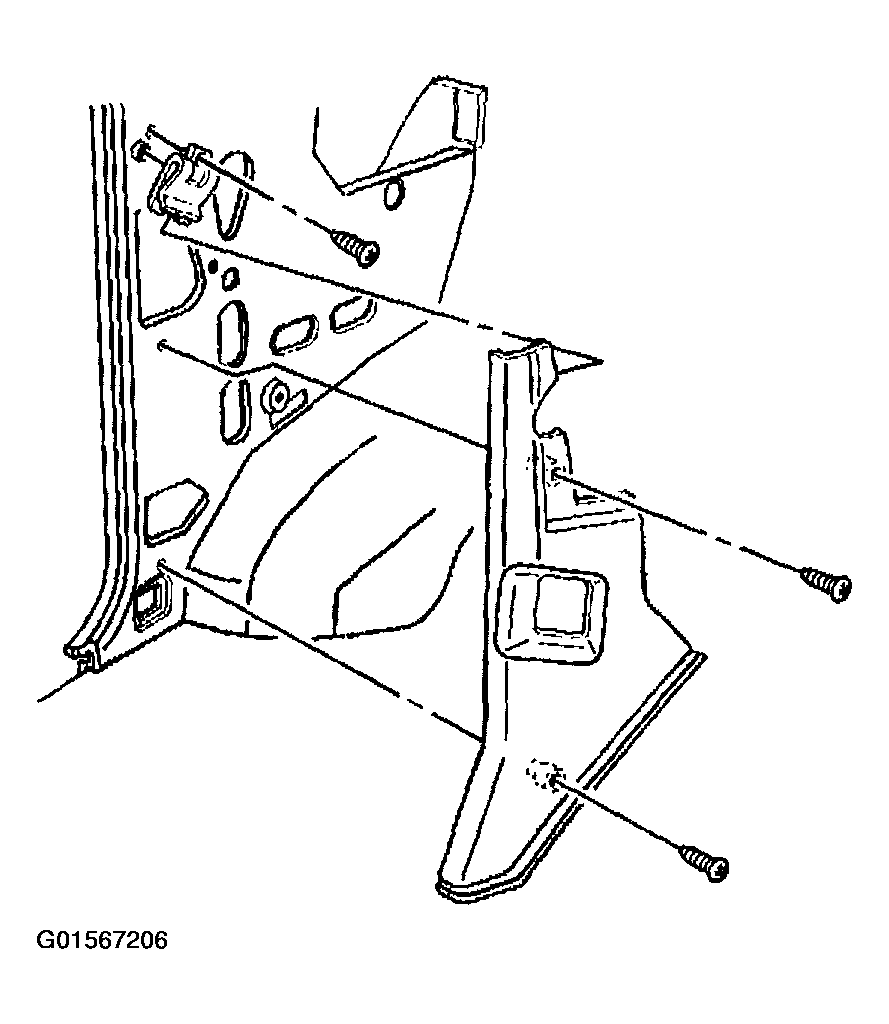

    Fig 1: Installing Trim Panel - Cowl Side
    G01567206Courtesy of GENERAL MOTORS CORP.
