Installation Procedure

WARNING: This page is about a different car, the 2003 GMC Safari and 2003 Chevrolet Astro. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the body side front lower trim panel to the vehicle:
    1. 1.1. Align the fasteners.
    2. 1.2. Snap the fasteners into place.
  2. Install the driver's door stepwell lamp assembly to the body side lower storage pocket.
    NOTE: Refer to FASTENER NOTICE in Cautions and Notices.
  3. Install the stepwell lamp cover retaining screw.

    Tighten

    Tighten the stepwell lamp cover retaining screw to 2 N.m (18lb in).

  4. Install the intermediate seat. Refer to SEAT SYSTEM in Seats.

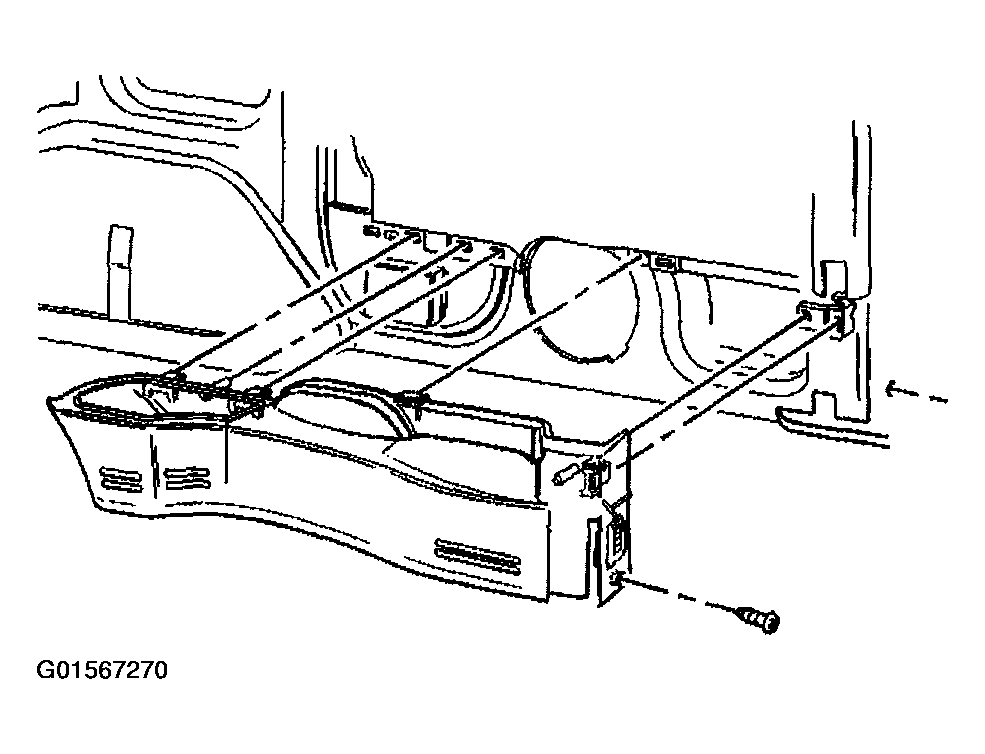

    Fig 1: Installing Body Side Front Lower Trim Panel
    G01567270Courtesy of GENERAL MOTORS CORP.
