Installation Procedure

WARNING: This page is about a different car, the 2003 GMC Safari and 2003 Chevrolet Astro. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the sunshade to the vehicle.
    NOTE: Refer to FASTENER NOTICE in Cautions and Notices.
  2. Install the sunshade retaining screws, connect the sunshade wiring harness (if equipped).

    Tighten

    Tighten the sunshade retaining screws to 2N.m (18lb in).

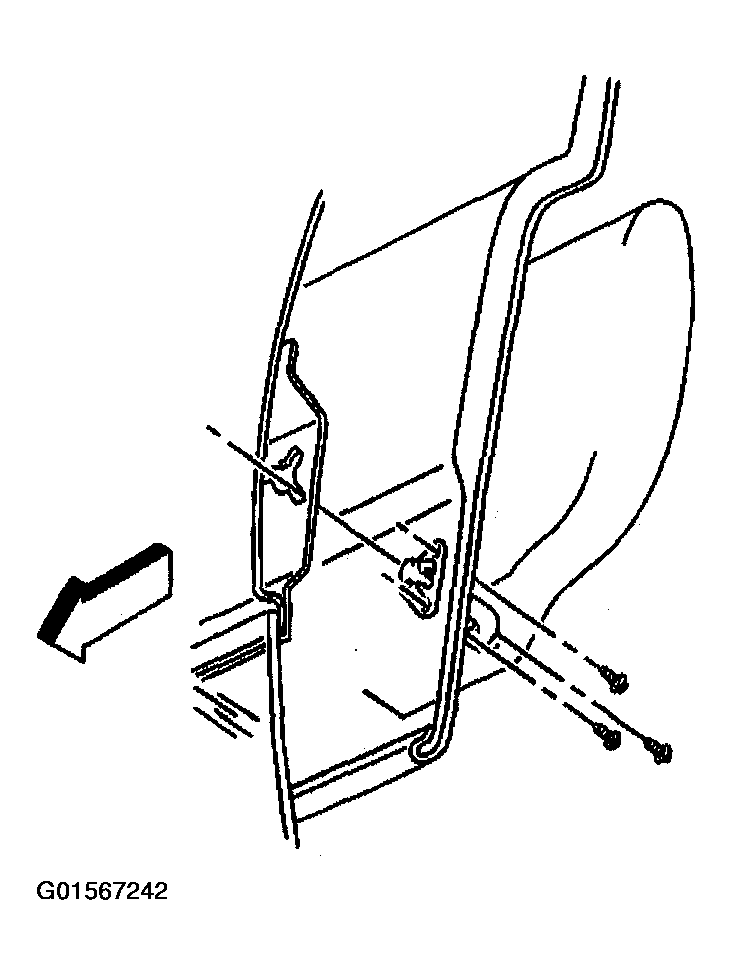

    Fig 1: Installing Sunshade
    G01567242Courtesy of GENERAL MOTORS CORP.
