Installation Procedure

WARNING: This page is about a different car, the 2003 GMC Safari and 2003 Chevrolet Astro. However, it is still accessible from the selected car via links, so may be relevant.

CAUTION: In order to avoid personal injury or vehicle damage when you repair or replace the carpet, use the same thickness and material size as the original installation. Always return the carpet to the original location.

Install the wheelhouse carpet to the vehicle.
Install the body side trim panel. Refer to the following procedures:
- TRIM PANEL REPLACEMENT BODY SIDE FRONT LOWER
- TRIM PANEL REPLACEMENT LEFT BODY SIDE
- TRIM PANEL REPLACEMENT RIGHT BODY SIDE

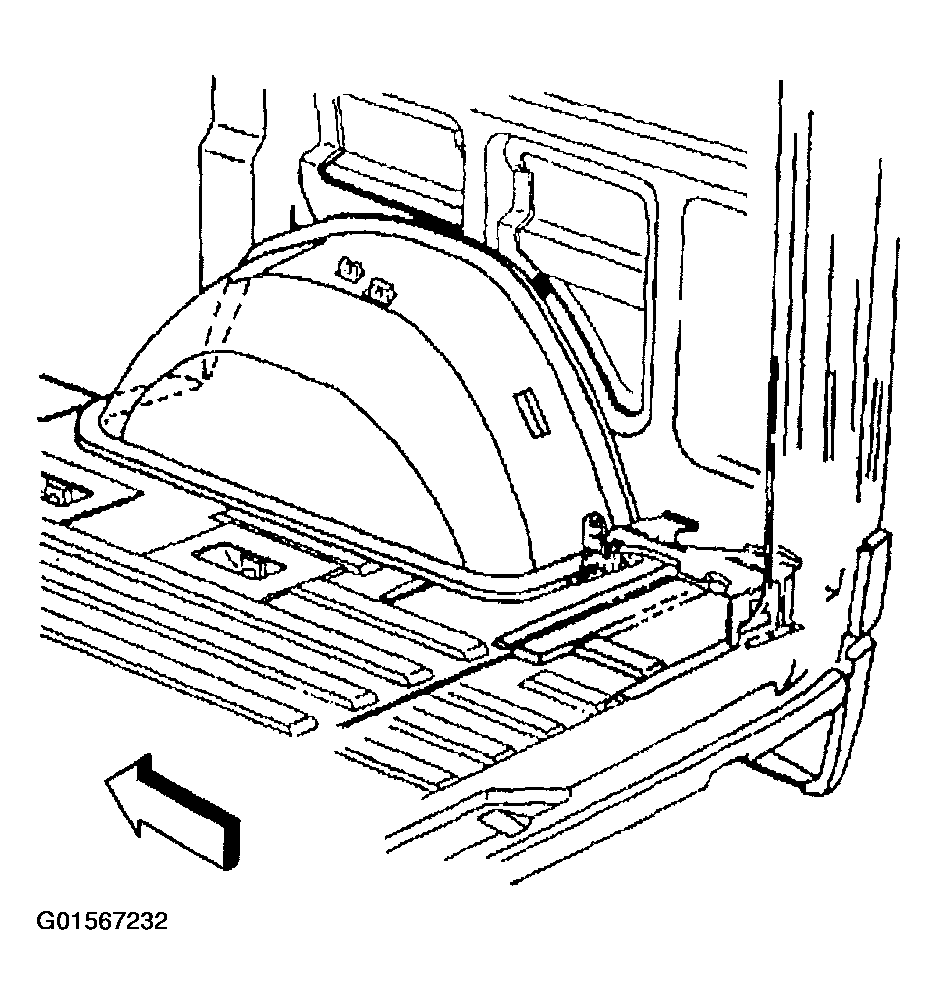

  Fig 1: Installing Rear Wheelhouse Carpet
  Courtesy of GENERAL MOTORS CORP.
