Installation Procedure

WARNING: This page is about a different car, the 2003 GMC Safari and 2003 Chevrolet Astro. However, it is still accessible from the selected car via links, so may be relevant.
CAUTION: In order to avoid personal injury or vehicle damage when you repair or replace the carpet, use the same thickness and material size as the original installation. Always return the carpet to the original location.
  1. Install the carpet into the vehicle.
    NOTE: Refer to FASTENER NOTICE in Cautions and Notices.
  2. Install the bolt that retains each cargo net anchor to the floor of the vehicle, if equipped.

    Tighten

    Tighten the bolt to 2 N.m (18 lb in).

  3. Install the body side front lower trim panel, if removed. Refer to TRIM PANEL REPLACEMENT - BODY SIDE FRONT LOWER  .
  4. Install the front and the rear door trim plates. Refer to CARPET RETAINER REPLACEMENT .
  5. Install the seats to the vehicle. Refer to SEAT SYSTEM in Seats.
  6. Snap the seat belts to the second seat belt latches.

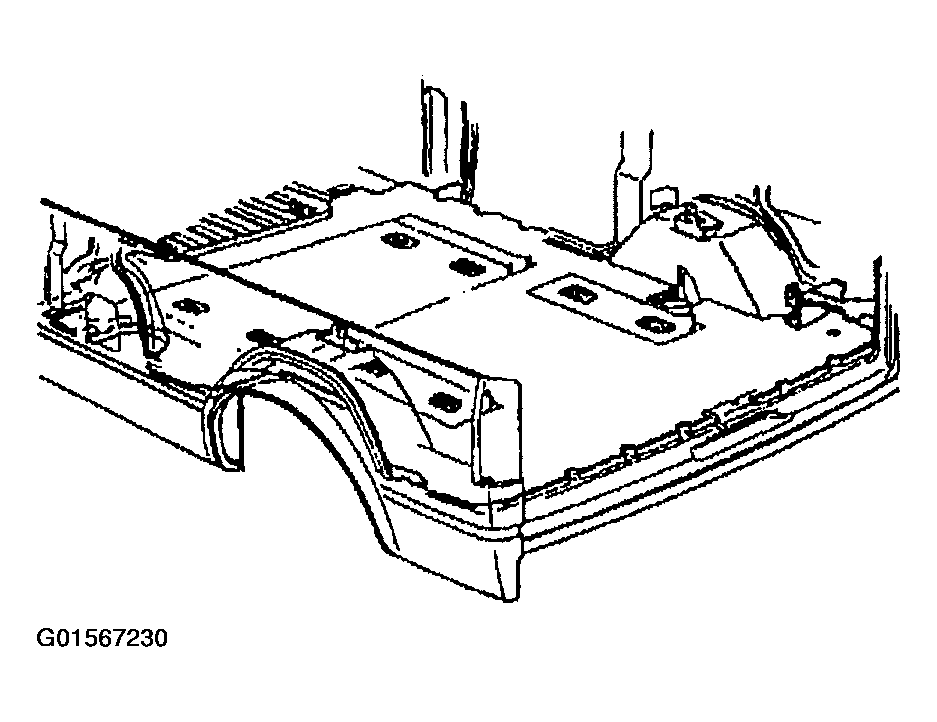

    Fig 1: Installing Rear Floor Carpet
    G01567230Courtesy of GENERAL MOTORS CORP.
