Installation Procedure
WARNING: This page is about a different car, the 2003 GMC Safari and 2003 Chevrolet Astro. However, it is still accessible from the selected car via links, so may be relevant.

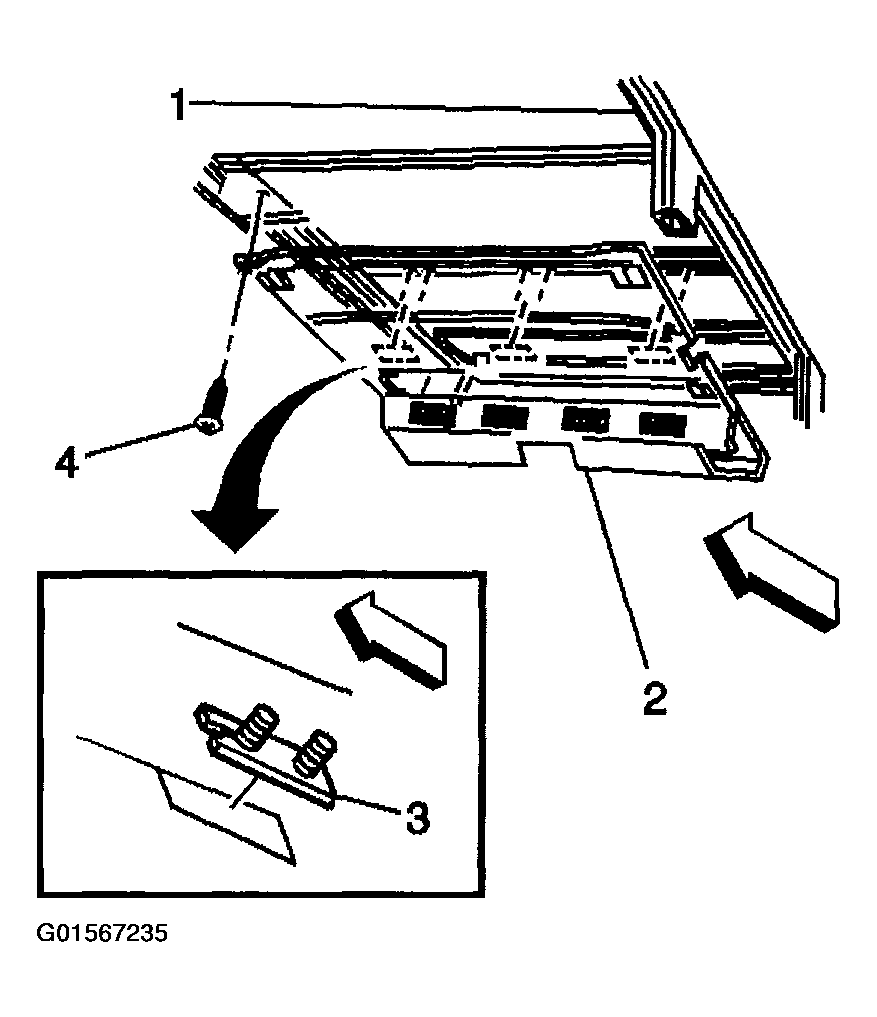

- Install the rear headliner to the retaining strips.
- Install the 2 push-in retainers at the front edge of the rear headliner.

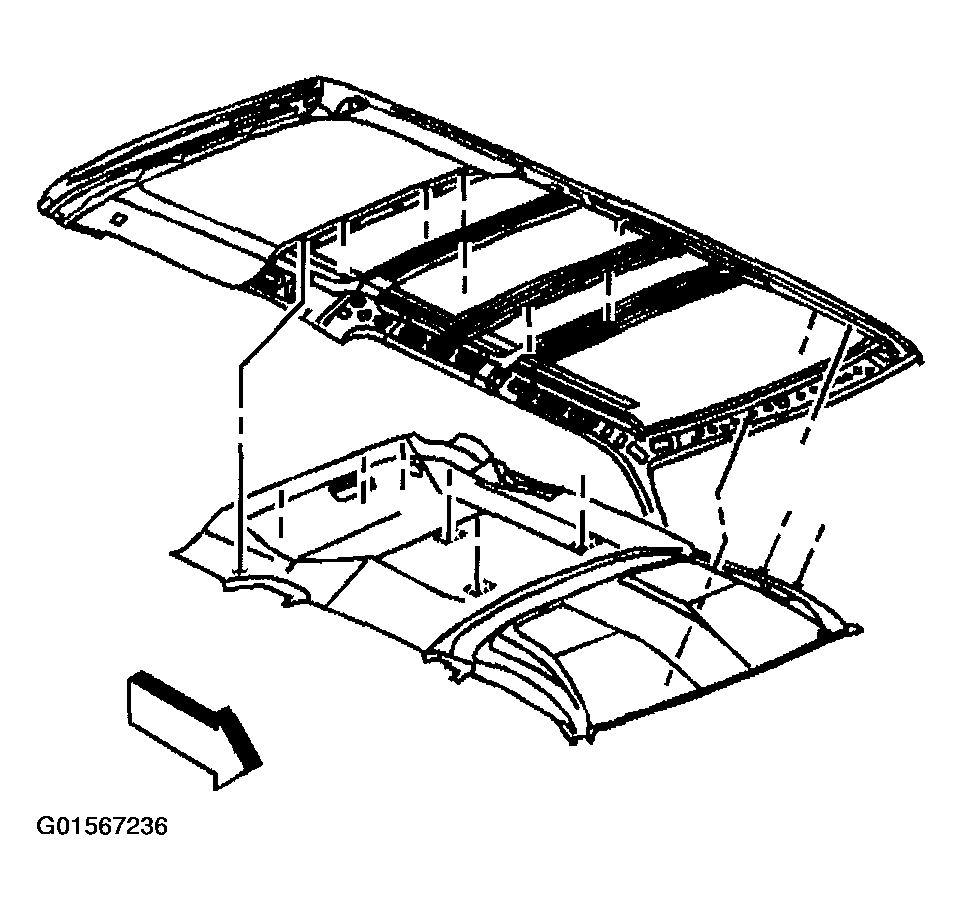

- With the aid of an assistant, install the front headliner.
- Fasten the front headliner to the roof panel, ensuring that the retaining strips are fully engaged.
- Install the coat hooks. Refer to COAT HOOK REPLACEMENT .
- Install the sliding door track garnish molding. Refer to GARNISH MOLDING REPLACEMENT - SLIDING DOOR .
- Install the dome lamp to the front headliner. Refer to DOME LAMP REPLACEMENT in Lighting Systems.
- Install the right seat belt retractor. Refer to SEAT BELT SYSTEM in Seat Belts.
- Install the necessary moldings. Refer to the following procedures:
- TRIM REPLACEMENT FOURTH PILLAR RIGHT
- TRIM REPLACEMENT FOURTH PILLAR LEFT
- TRIM REPLACEMENT THIRD PILLAR RIGHT
- TRIM REPLACEMENT THIRD PILLAR LEFT
- GARNISH MOLDING REPLACEMENT RF LOCK PILLAR
- GARNISH MOLDING REPLACEMENT LF LOCK PILLAR
- GARNISH MOLDING REPLACEMENT - REAR UPPER
- GARNISH MOLDING REPLACEMENT SIDE DOOR OPENING FRAME
- Install the overhead console. Refer to CONSOLE REPLACEMENT OVERHEAD .
- Install the sunshades. Refer to SUNSHADE REPLACEMENT .
