Installation Procedure

WARNING: This page is about a different car, the 2003 GMC Safari and 2003 Chevrolet Astro. However, it is still accessible from the selected car via links, so may be relevant.
  1. Align the fasteners with the slots in the body.
  2. Press the panel firmly into position, ensuring that all fasteners are fully seated.
    NOTE: Refer to FASTENER NOTICE in Cautions and Notices.
  3. Install the retaining screws to the upper garnish molding.

    Tighten

    Tighten the retaining screws to the upper garnish molding to 2 N.m (18 lb in).

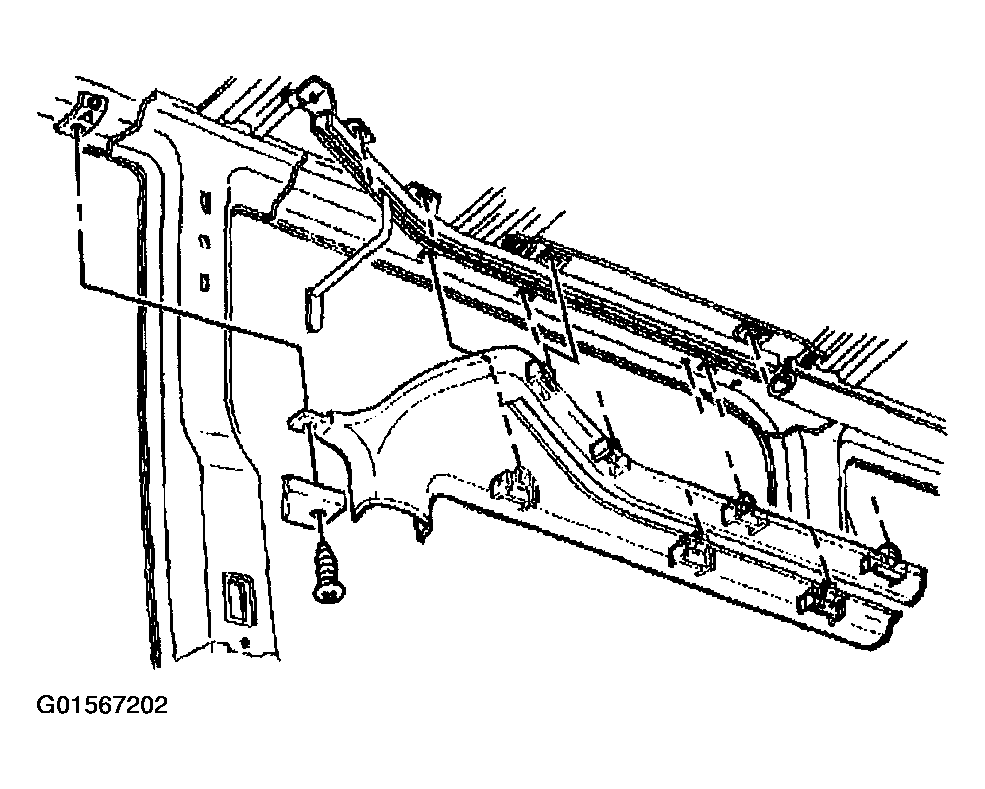

    Fig 1: Installing Retaining Screws To Upper Garnish Molding
    G01567202Courtesy of GENERAL MOTORS CORP.
