Installation Procedure

WARNING: This page is about a different car, the 2003 GMC Safari and 2003 Chevrolet Astro. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the door garnish molding to the vehicle:
    1. 1.1. Align the retainers to the holes in the door.
    2. 1.2. Press the panel in order to engage the retainers into the door.
  2. Install the door handle bezel to the door.
    NOTE: Refer to FASTENER NOTICE in Cautions and Notices.
  3. Install the door handle bezel screws.

    Tighten

    Tighten the door handle bezel screws to 2 N.m (18 lb in).

  4. Install the swing-out window latch to the door, if equipped. Refer to WINDOW REPLACEMENT - SWING OUT .

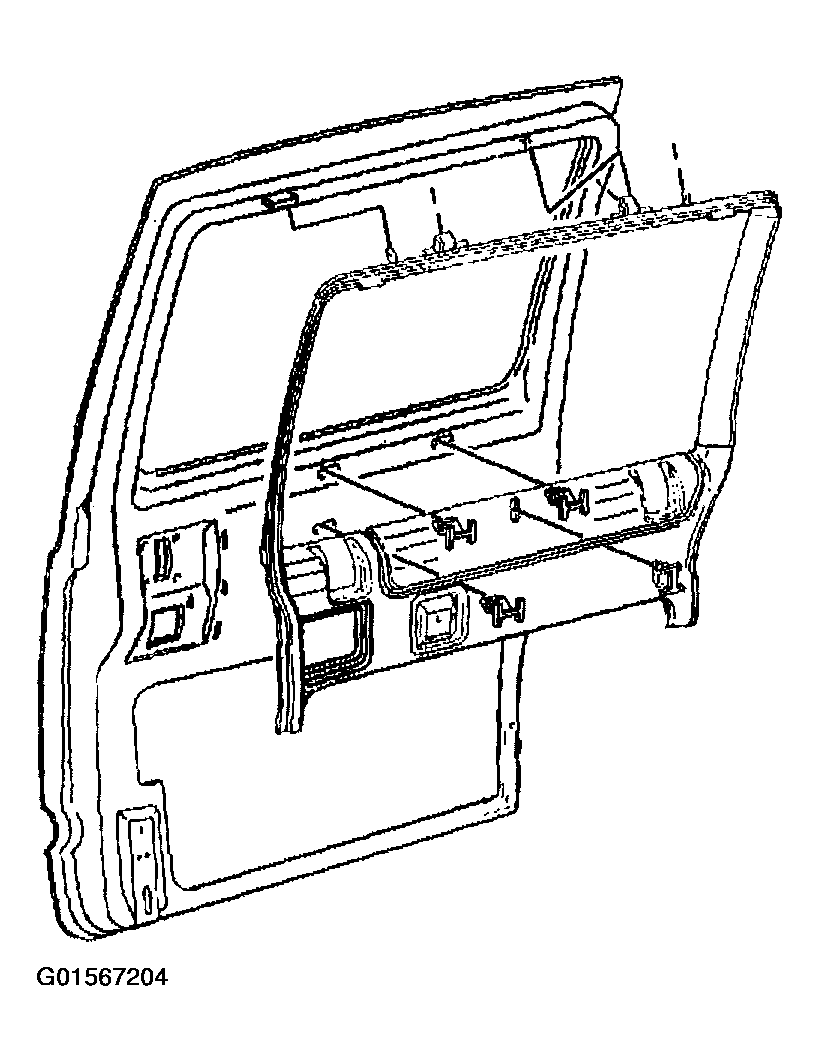

    Fig 1: Installing Garnish Molding - Sliding Door
    G01567204Courtesy of GENERAL MOTORS CORP.
