Installation Procedure

WARNING: This page is about a different car, the 2003 GMC Safari and 2003 Chevrolet Astro. However, it is still accessible from the selected car via links, so may be relevant.
  1. Slide the molding past the following components in order to install the molding to the vehicle:
    • The instrument panel
    • The knee bolster
    • Behind the cowl side panel trim
  2. Align the fasteners at the windshield pillar.
  3. Press the fasteners into place until the fasteners seat fully.
  4. Install the tab on the molding in the clip in the center of the door opening.
    NOTE: Refer to FASTENER NOTICE in Cautions and Notices.
  5. Install the screw that retains the end of the molding to the vehicle.

    Tighten

    Tighten the screw that retains the end of the molding to 2 N.m (18 lb in).

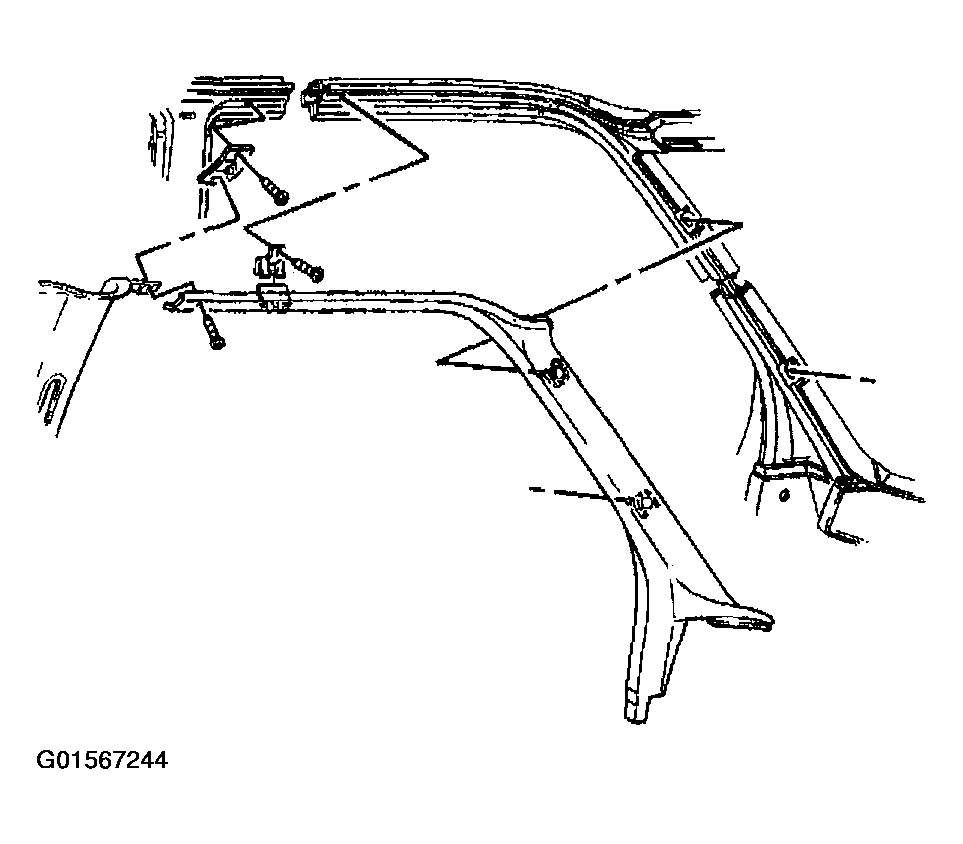

    Fig 1: Installing Garnish Molding - Side Door Opening Frame
    G01567244Courtesy of GENERAL MOTORS CORP.
