Installation Procedure

WARNING: This page is about a different car, the 2003 GMC Safari and 2003 Chevrolet Astro. However, it is still accessible from the selected car via links, so may be relevant.
  1. Connect the electrical connector.
  2. Install the molding to the roof.
    NOTE: Refer to FASTENER NOTICE in Cautions and Notices.
  3. Install the roof retaining screws.

    Tighten

    Tighten the roof retaining screws to 2 N.m (18 lb in).

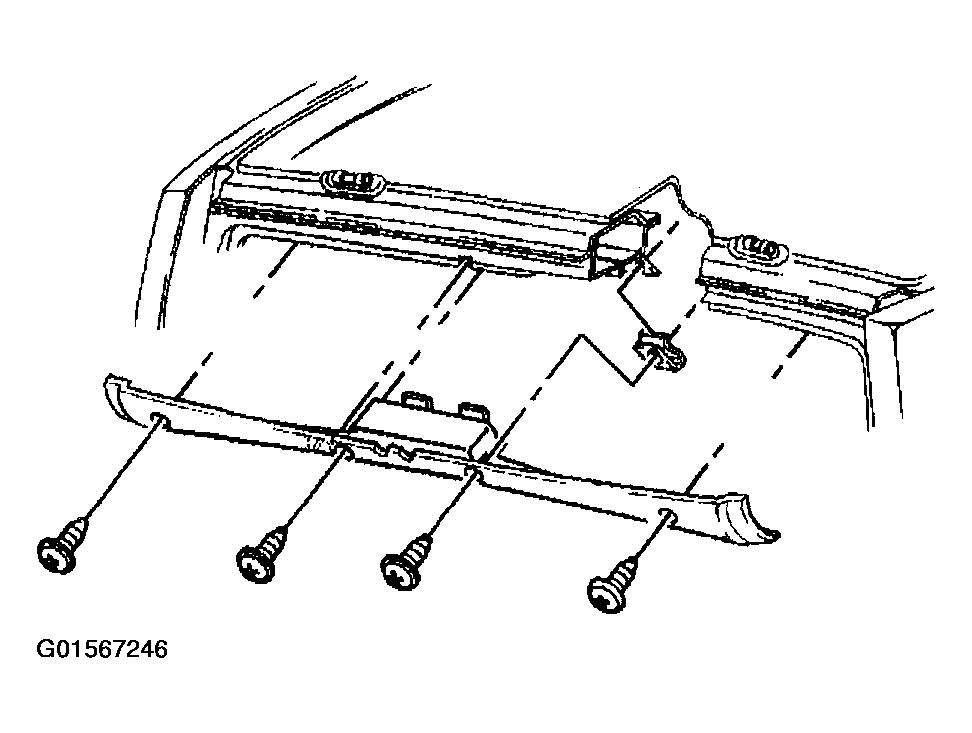

    Fig 1: Installing Door Frame Garnish Molding - Rear Upper
    G01567246Courtesy of GENERAL MOTORS CORP.
