Installation Procedure

WARNING: This page is about a different car, the 2003 GMC Safari and 2003 Chevrolet Astro. However, it is still accessible from the selected car via links, so may be relevant.

Connect the electrical connector to the rear side door stepwell lamp.
Install the molding to the pillar:
1. 2.1. Align the fasteners with the slots in the pillar.
2. 2.2. Press firmly until the fasteners are fully seated.

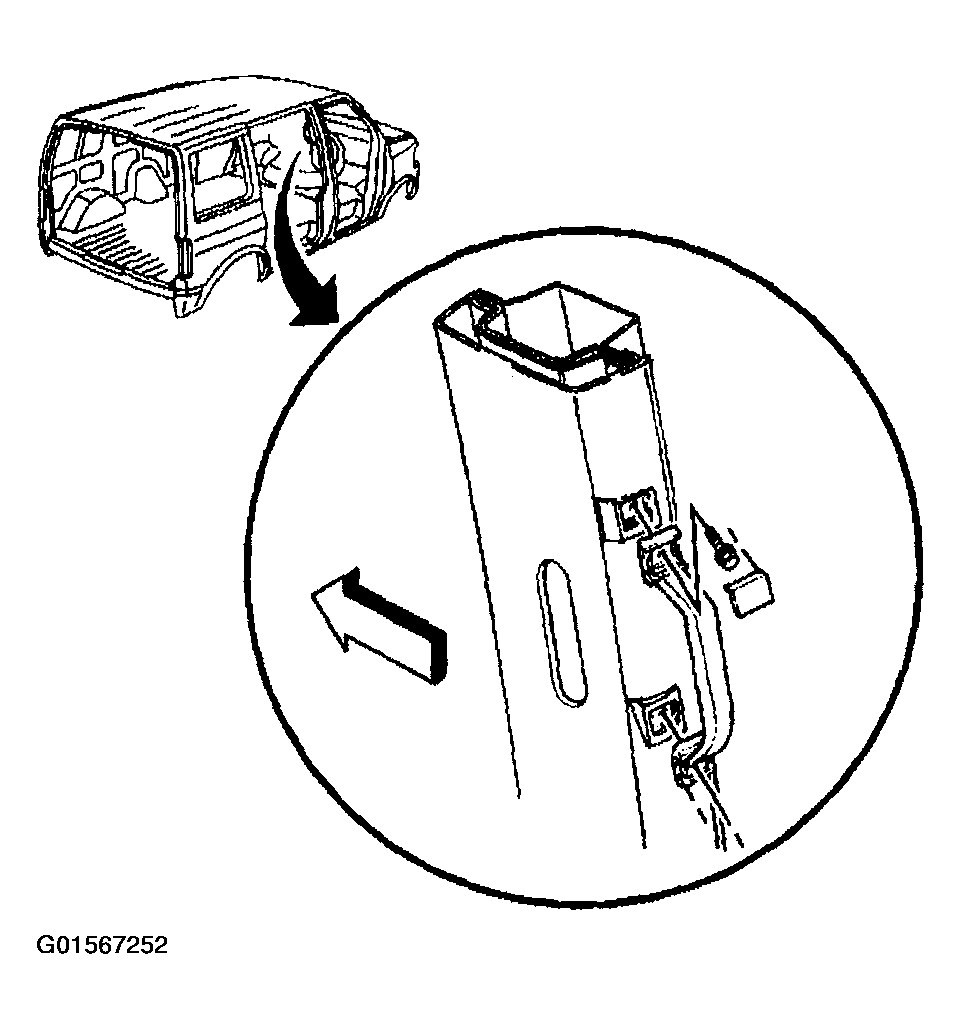

  Fig 1: Installing Garnish Molding - RF Lock Pillar
  Courtesy of GENERAL MOTORS CORP.
NOTE: Refer to FASTENER NOTICE in Cautions and Notices.
Install the bolts that retain the assist handle to the pillar.
Tighten

Tighten the bolts that retain the assist handle to the pillar to 8 N.m (71 lb in).

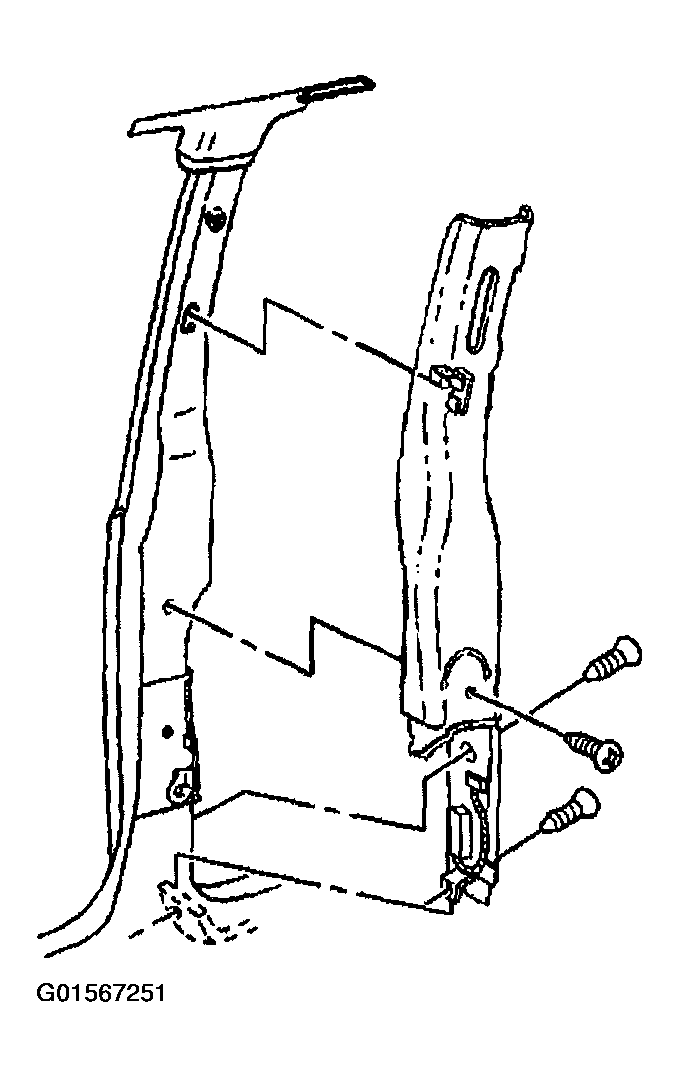

Fig 2: Installing Assist Handle
Courtesy of GENERAL MOTORS CORP.
Install the front passenger's seat belt upper retainer. Refer to SEAT BELT SYSTEM in Seat Belts.
Install the retaining screws.
Tighten

Tighten the retaining screws to 2 N.m (18 lb in).
