Installation Procedure

WARNING: This page is about a different car, the 2003 GMC Safari and 2003 Chevrolet Astro. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the coat hook to the vehicle.
    NOTE: Refer to FASTENER NOTICE in Cautions and Notices.
  2. Install the screw through the coat hook and the panel.

    Tighten

    Tighten the screw to the coat hook to 2 N.m (18 lb in).

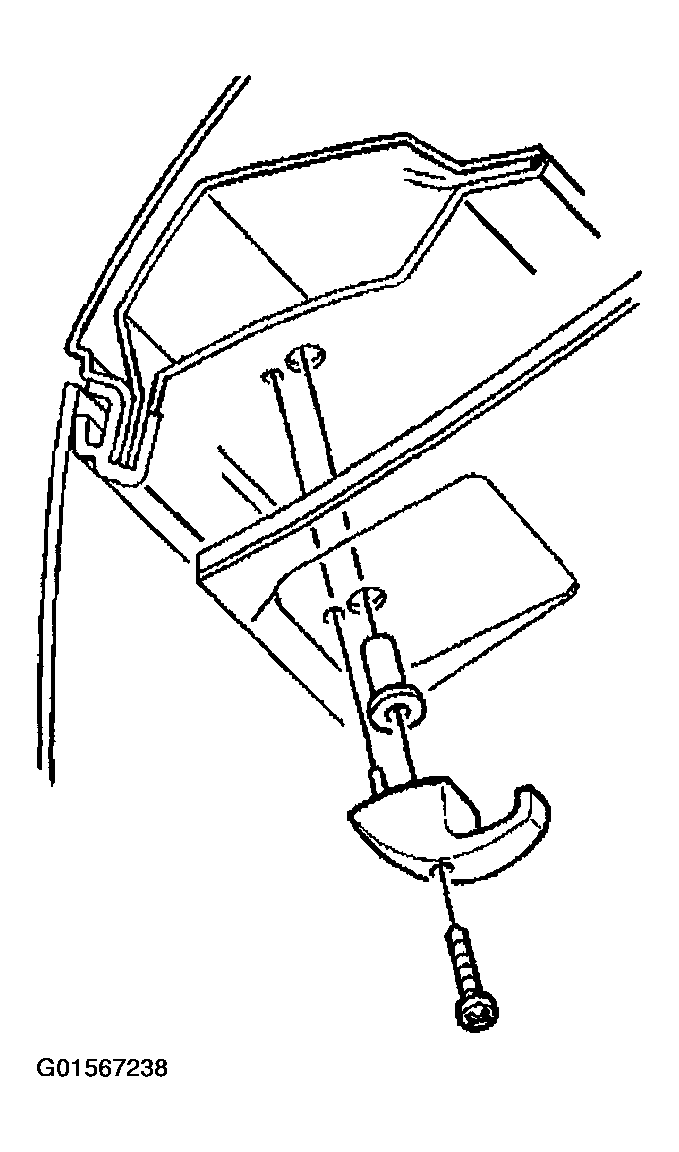

    Fig 1: Installing Coat Hook
    G01567238Courtesy of GENERAL MOTORS CORP.
