Installation Procedure

WARNING: This page is about a different car, the 2003 GMC Safari and 2003 Chevrolet Astro. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the trim plate to the vehicle.
    NOTE: Refer to FASTENER NOTICE in Cautions and Notices.

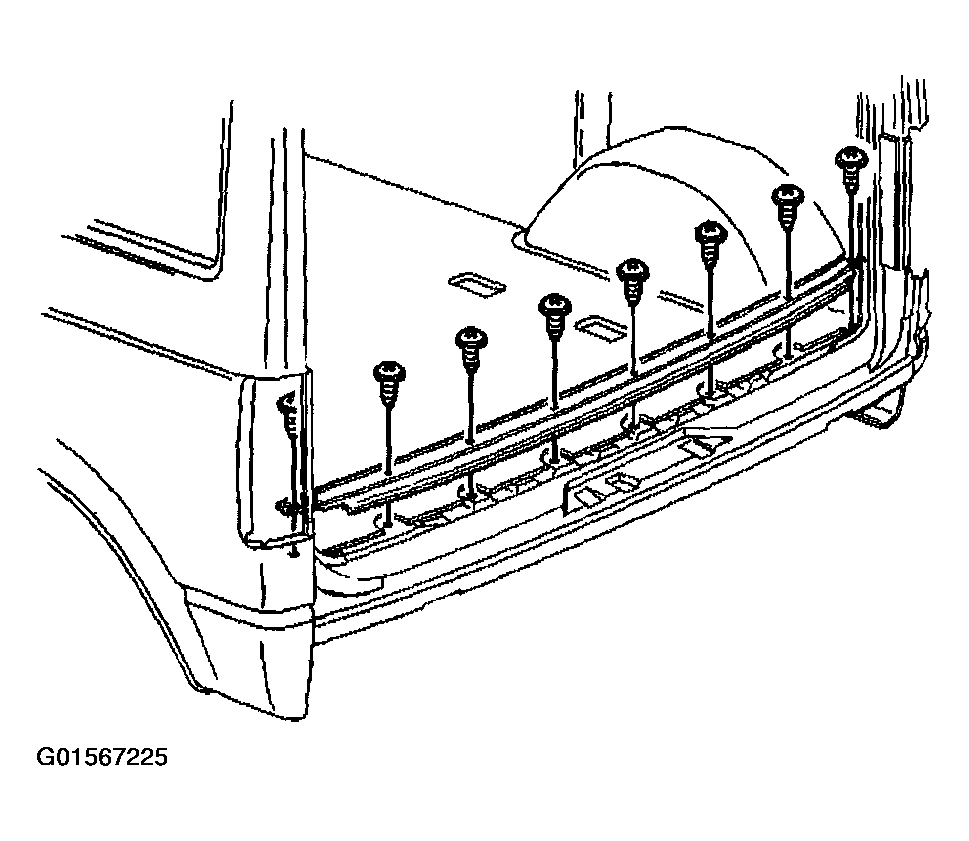

    Fig 1: Installing Rear Trim Plate
    G01567225Courtesy of GENERAL MOTORS CORP.
  2. Install the screws that retain the left front door step trim plate to the vehicle.

    Tighten

    Tighten the screws that retain the left front door step trim plate to 2 N.m (18 lb in).

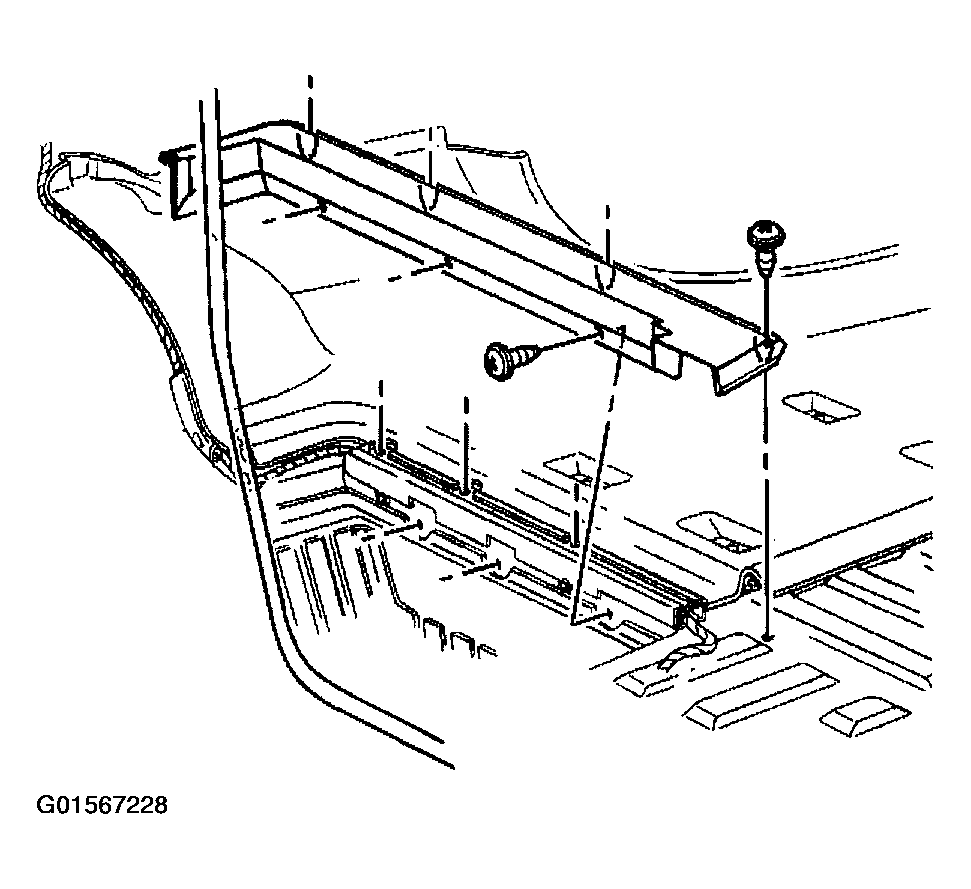

    Fig 2: Installing Left Front Door Step Trim Plate
    G01567228Courtesy of GENERAL MOTORS CORP.
  3. Install the screws that retain the right front door step trim plate.

    Tighten

    Tighten the screws that retain the right front door step trim plate to 2 N.m (18 lb in).

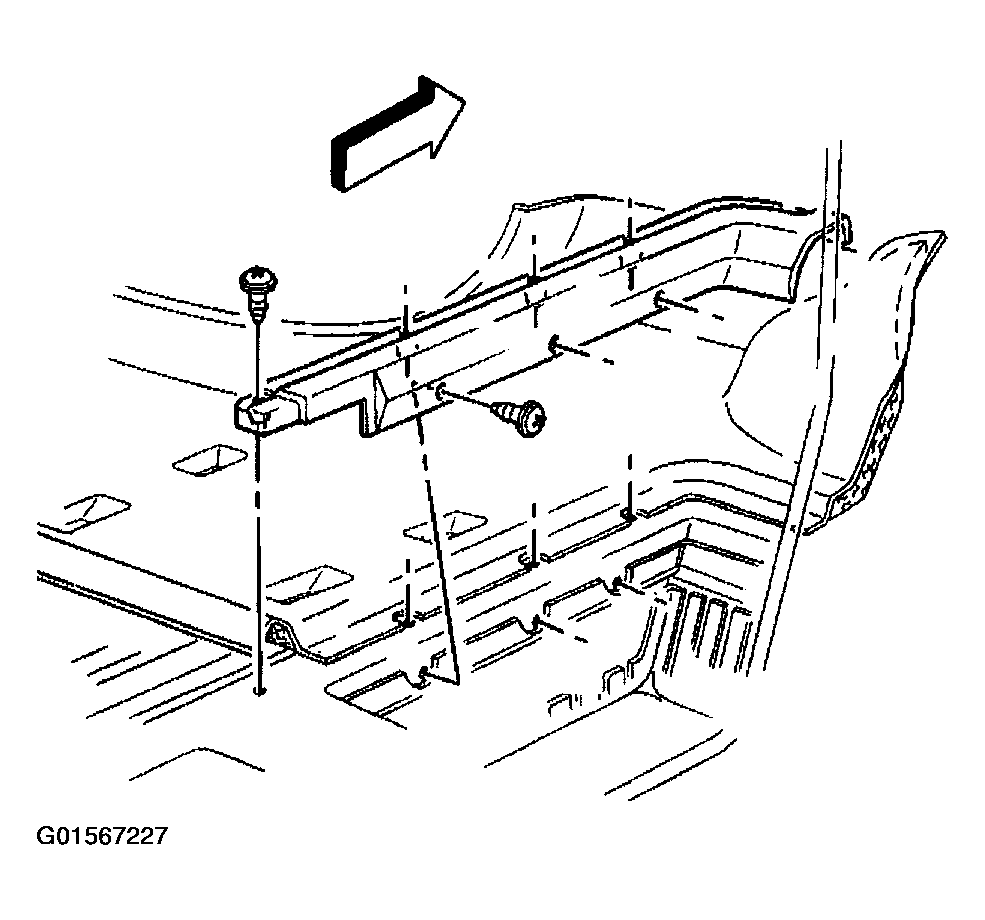

    Fig 3: Installing Right Front Door Step Trim Plate
    G01567227Courtesy of GENERAL MOTORS CORP.
  4. Install the screws that retain the sliding door step trim plate to the vehicle.

    Tighten

    Tighten the screws that retain the sliding door step trim plate to 2 N.m (18 lb in).

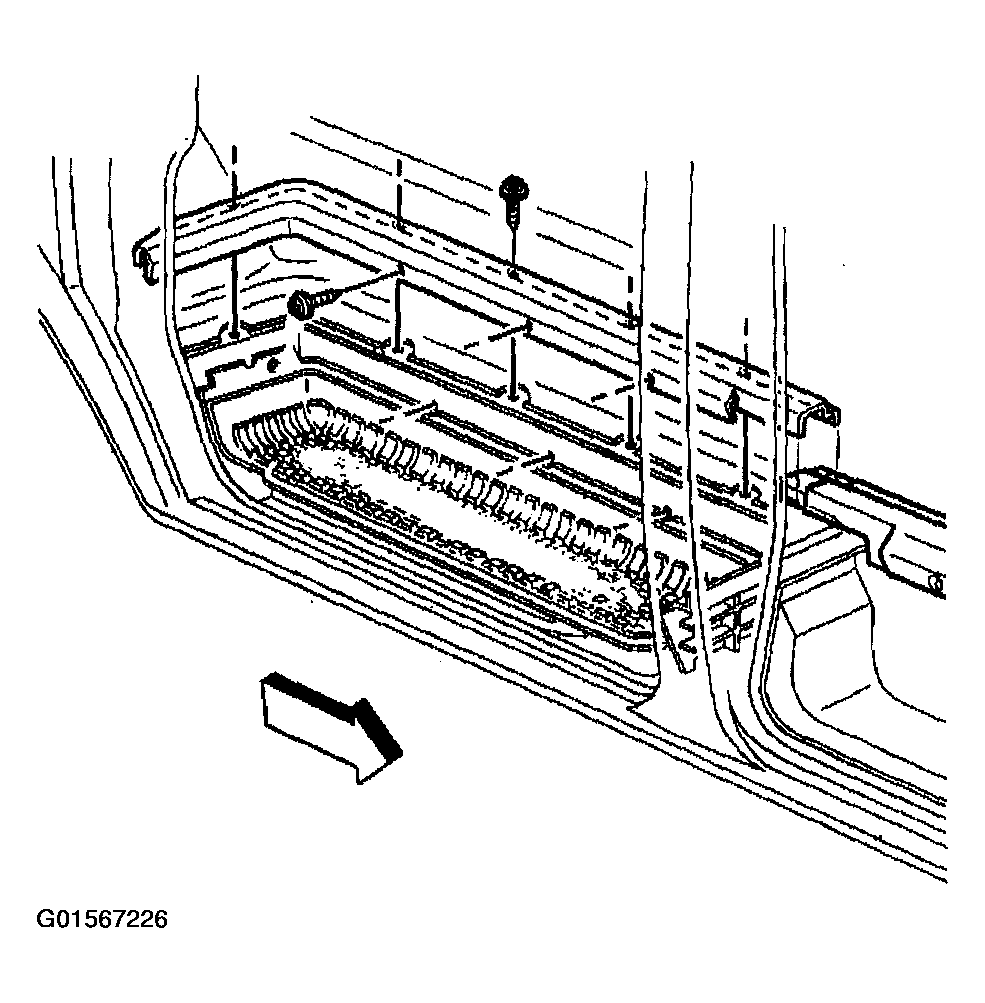

    Fig 4: Installing Sliding Door Step Trim Plate
    G01567226Courtesy of GENERAL MOTORS CORP.
  5. Install the screws that retain the rear trim plate to the vehicle.

    Tighten

    Tighten the screws that retain the rear trim plate to 2 N.m (18 lb in).

  6. Close the door(s).
