Installation Procedure

WARNING: This page is about a different car, the 2003 GMC Safari and 2003 Chevrolet Astro. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the grille to the vehicle.
    NOTE: Refer to FASTENER NOTICE in Cautions and Notices.
  2. Install the screws to grille to radiator support.

    Tighten

    Tighten the screws to the grille to radiator support to 3 N.m (27 lb in).

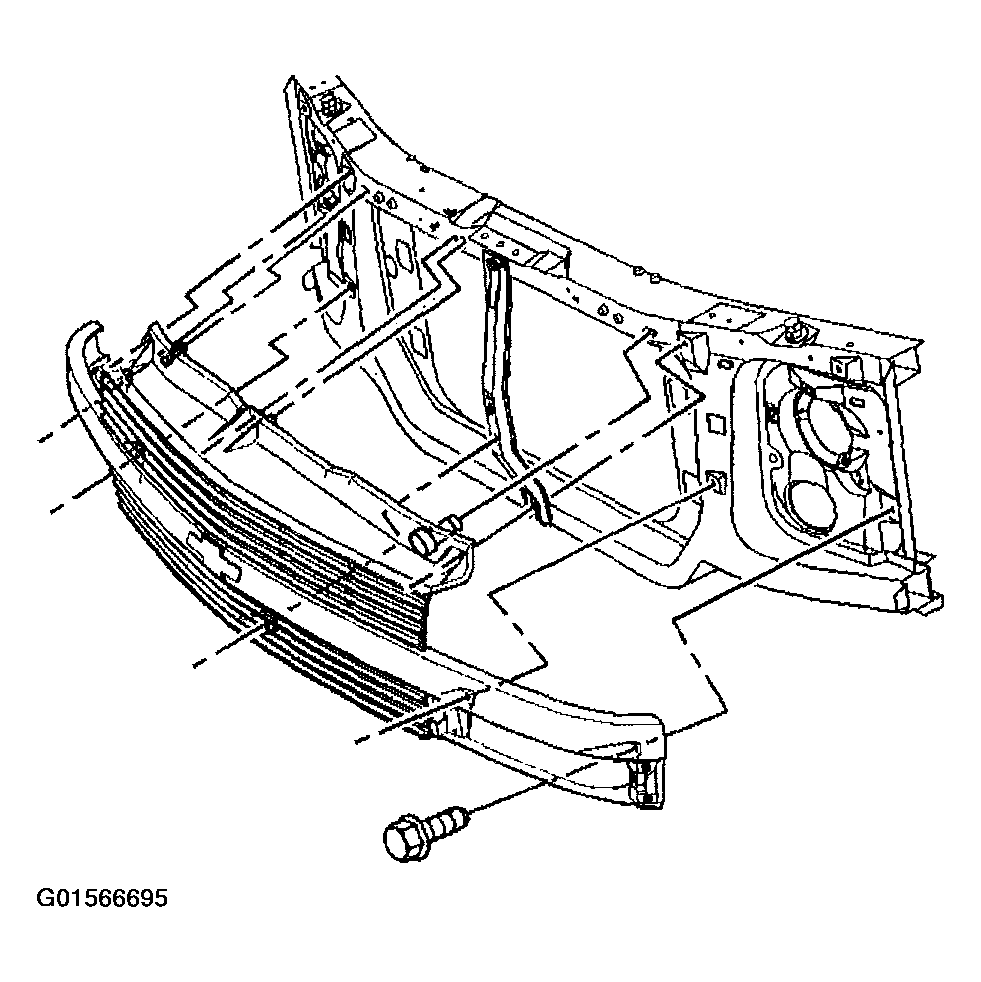

    Fig 1: Installing Grille To Vehicle
    G01566695Courtesy of GENERAL MOTORS CORP.
  3. Install the park/turn signal lamp. Refer to PARK/TURN SIGNAL LAMP REPLACEMENT in Lighting Systems.
