Installation Procedure

WARNING: This page is about a different car, the 2003 GMC Safari and 2003 Chevrolet Astro. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the grille molding to the vehicle.

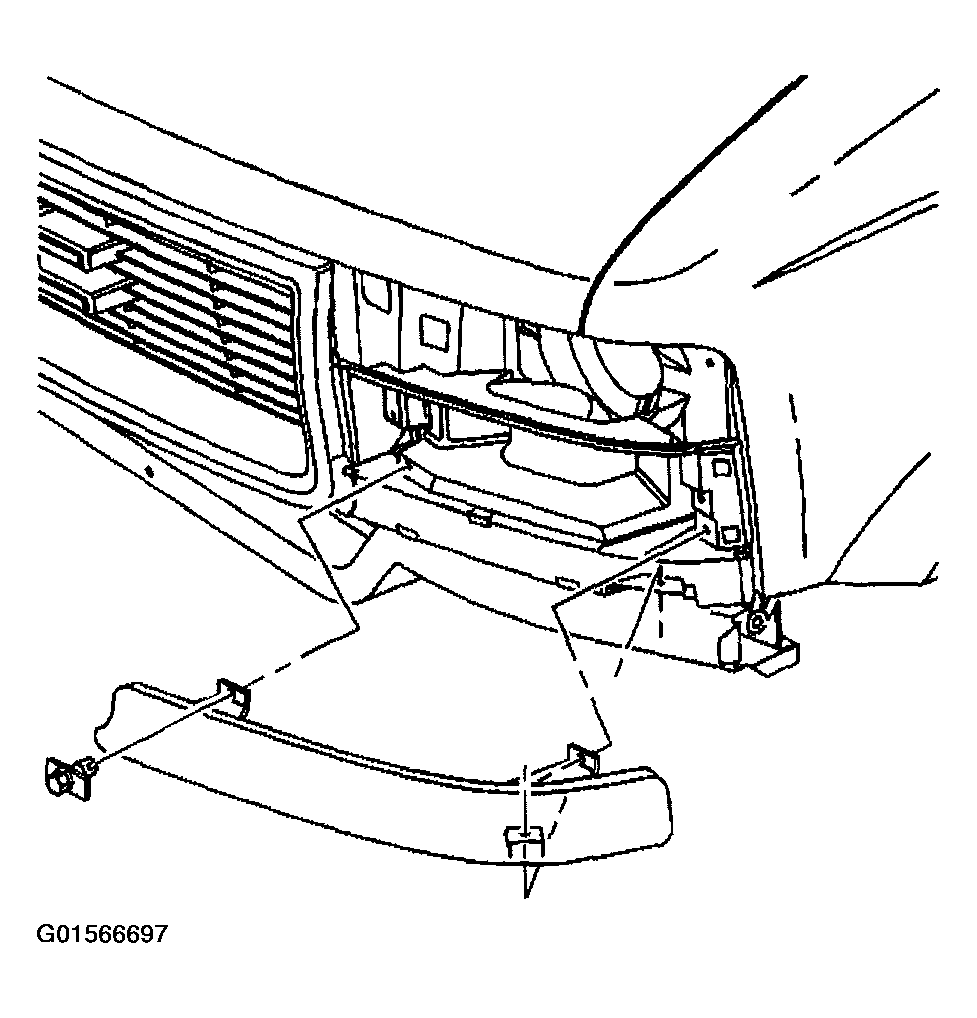

    Fig 1: Installing Grille Molding To Vehicle
    G01566697Courtesy of GENERAL MOTORS CORP.
  2. Install the push-in fasteners that retain the grille molding.
  3. Install the grille. Refer to GRILLE REPLACEMENT .
