Installation Procedure

WARNING: This page is about a different car, the 2003 GMC Safari and 2003 Chevrolet Astro. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the grille emblem to the grille.
    NOTE: Refer to FASTENER NOTICE in Cautions and Notices.
  2. Install the nuts to the back side of the grille emblem.

    Tighten

    Tighten the emblem nuts to the grille to 2.5 N.m (22 lb in).

  3. Install the grille to the vehicle. Refer to GRILLE REPLACEMENT .

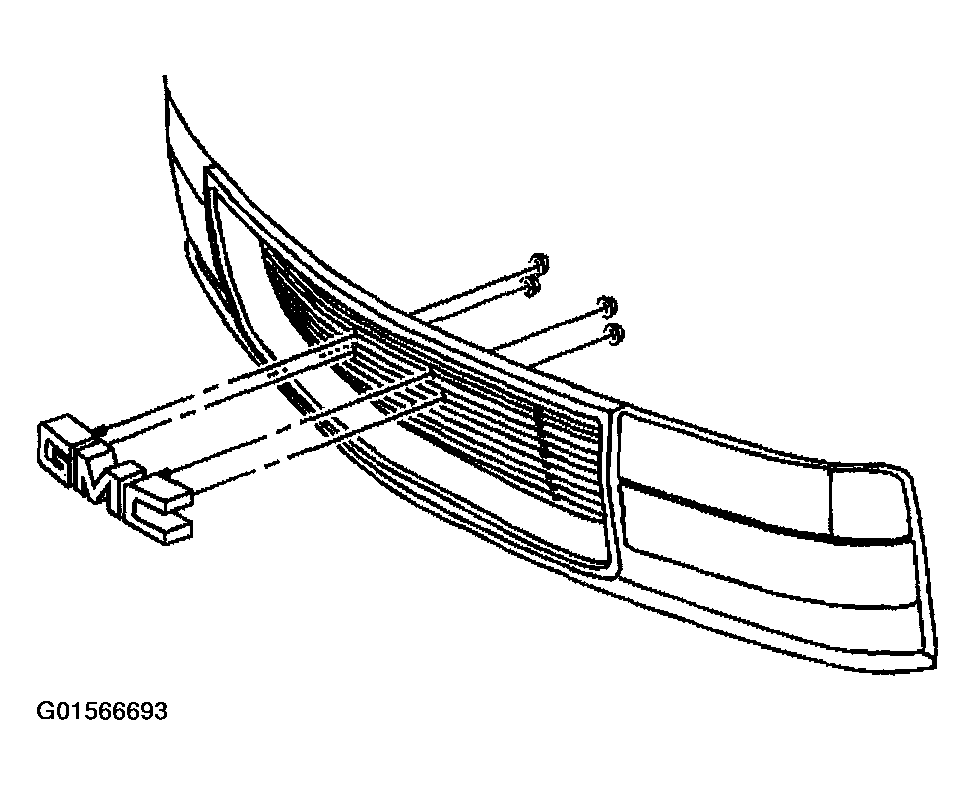

    Fig 1: Installing Grille Emblem To Grille
    G01566693Courtesy of GENERAL MOTORS CORP.
