Installation Procedure

WARNING: This page is about a different car, the 2003 GMC Safari and 2003 Chevrolet Astro. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the cladding to the body. Refer to CLADDING REPLACEMENT - ADHESIVE RETAINED .
    NOTE: Refer to FASTENER NOTICE in Cautions and Notices.

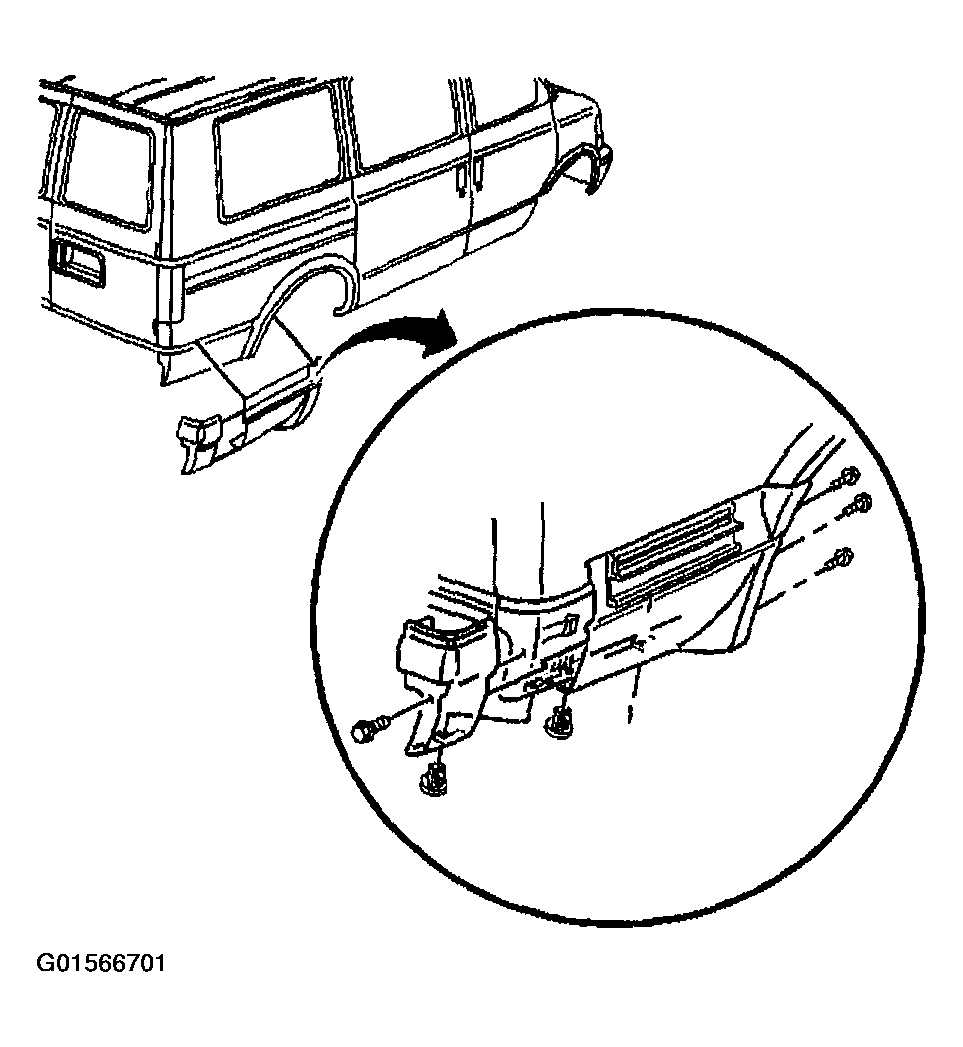

    Fig 1: Installing Cladding To Body
    G01566701Courtesy of GENERAL MOTORS CORP.
  2. Install the cladding screws.

    Tighten

    Tighten the cladding screws to 2 N.m (18 lb in).

  3. Install the cladding retainers.
  4. Install the rear corner extension molding.
  5. Install the rear corner extension molding retainers.
