Installation Procedure

WARNING: This page is about a different car, the 2003 GMC Safari and 2003 Chevrolet Astro. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the retaining rail to the body.
    NOTE: Refer to FASTENER NOTICE in Cautions and Notices.

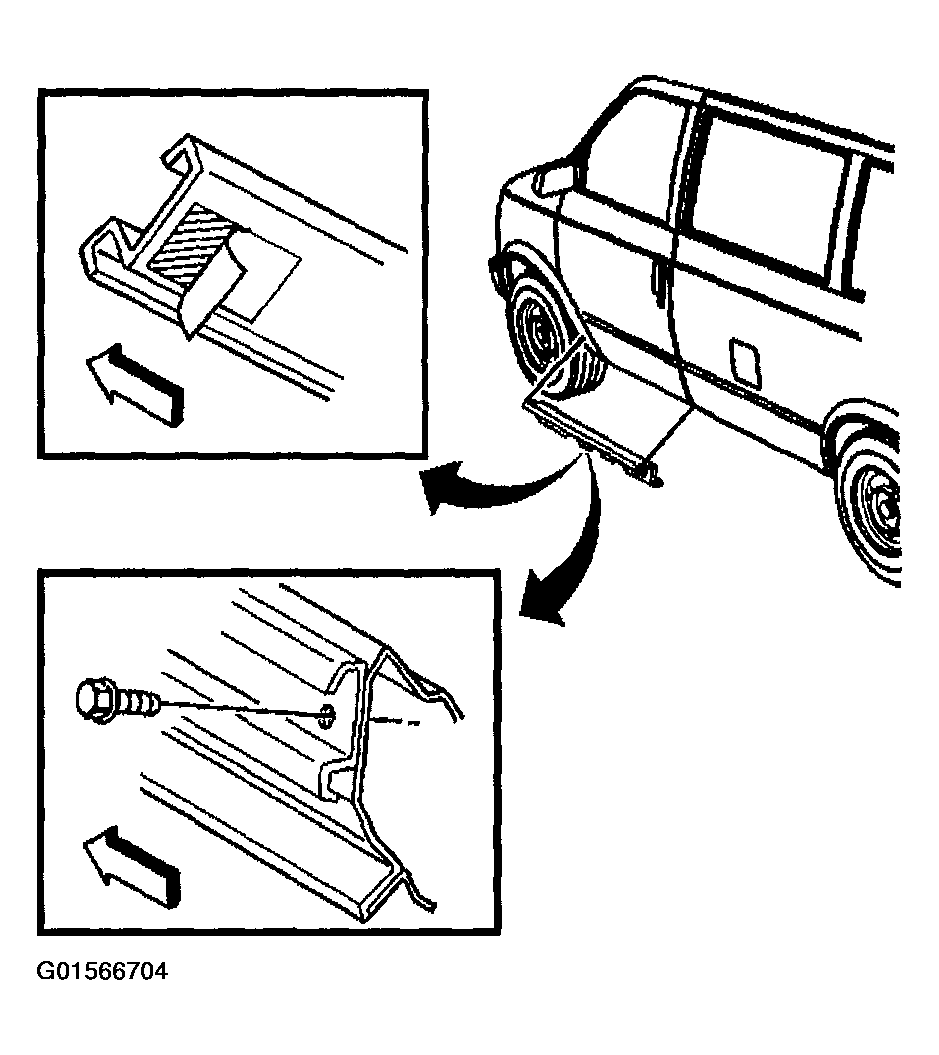

    Fig 1: Installing Retaining Rail To Body (Left Rocker Panel)
    G01566704Courtesy of GENERAL MOTORS CORP.
  2. Install the retaining rail screws.

    Tighten

    Tighten the retaining rail screws to 2 N.m (18 lb in).

  3. Install the cladding to the vehicle.
  4. Install the nut on the back of the cladding to the stud.

    Tighten

    Tighten the nut to 7 N.m (62 lb in).

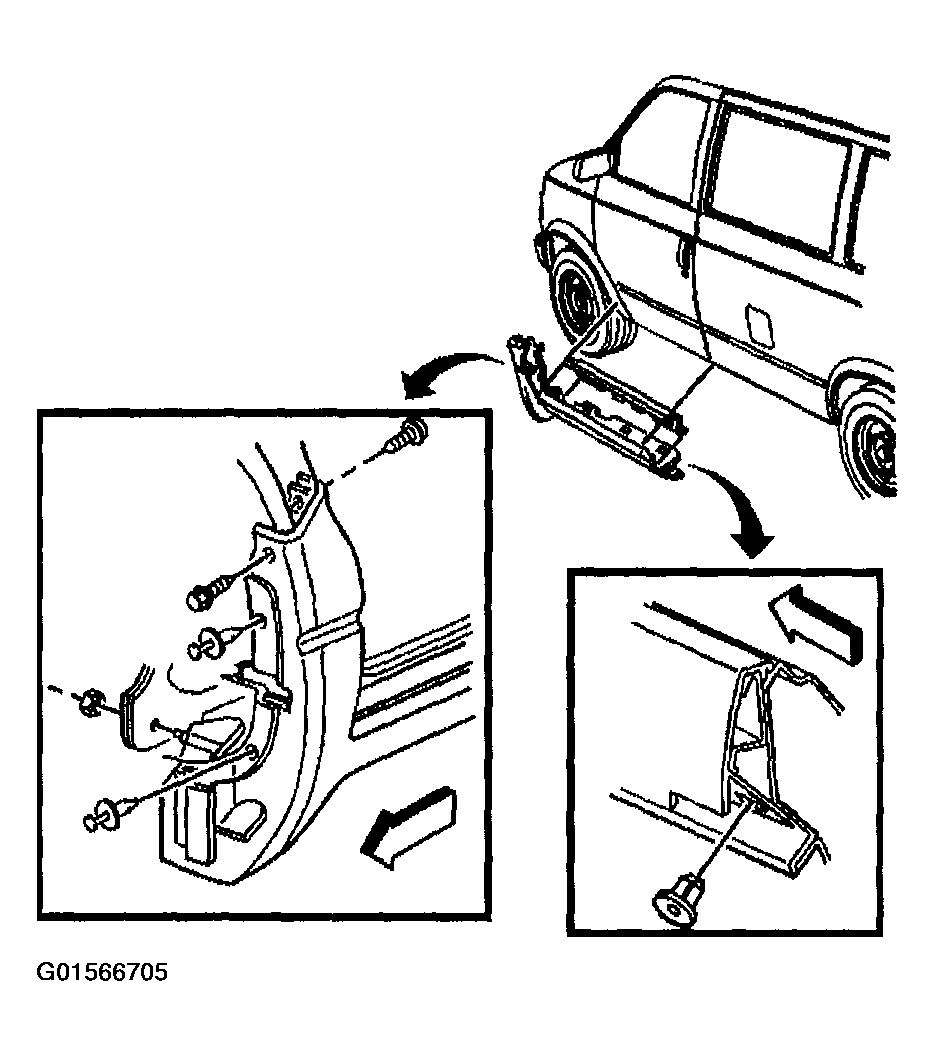

    Fig 2: Installing Cladding To Vehicle (Left Rocker Panel)
    G01566705Courtesy of GENERAL MOTORS CORP.
  5. Install the screws into the cladding.

    Tighten

    Tighten the screws to 2 N.m (18 lb in).

  6. Install the retainers into the wheelhouse extension flange.
