Installation Procedure

WARNING: This page is about a different car, the 2003 GMC Safari and 2003 Chevrolet Astro. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the cladding to the rear quarter panel. Refer to CLADDING REPLACEMENT - ADHESIVE RETAINED .
    NOTE: Refer to FASTENER NOTICE in Cautions and Notices.

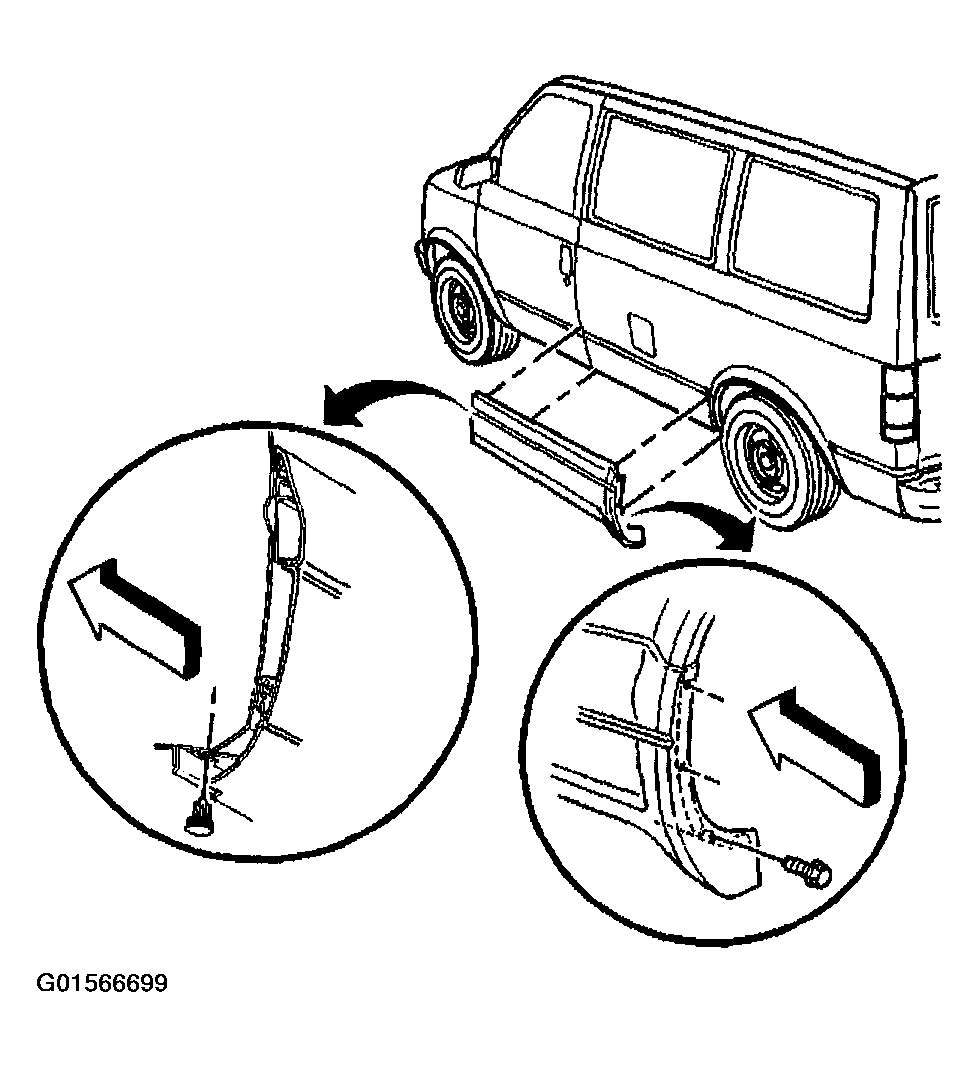

    Fig 1: Installing Cladding To Rear Quarter Panel
    G01566699Courtesy of GENERAL MOTORS CORP.
  2. Install the wheel opening screws.

    Tighten

    Tighten the wheel opening screws to 2 N.m (18 lb in).
