Audible Warnings Schematics (Power, Seat Belt/Ignition Key Alarm/Door Jamb Switches)

WARNING: This page is about a different car, the 2003 GMC Safari and 2003 Chevrolet Astro. However, it is still accessible from the selected car via links, so may be relevant.

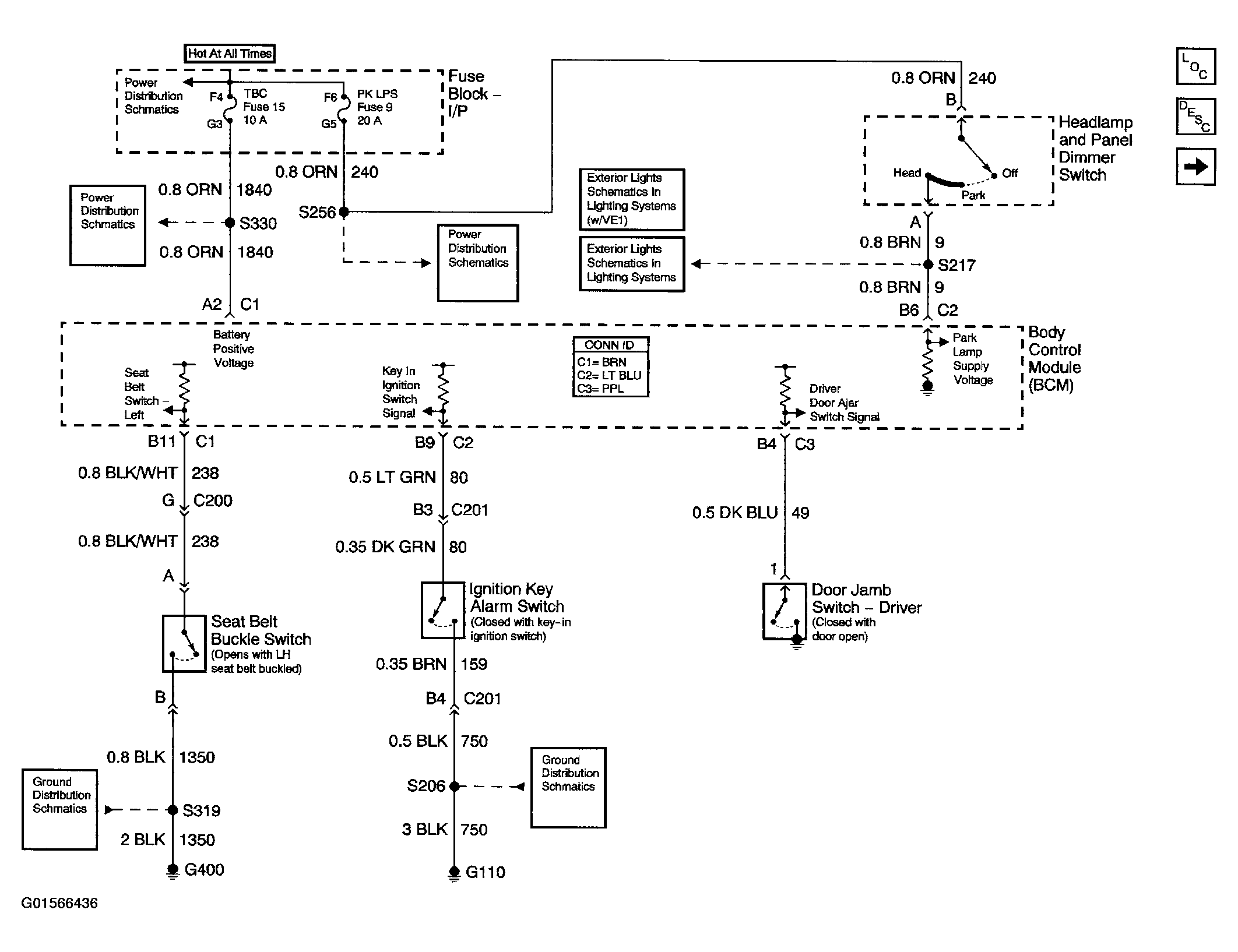

Fig 1: Audible Warnings Schematics (Power, Seat Belt/Ignition Key Alarm/Door Jamb Switches)
G01566436Courtesy of GENERAL MOTORS CORP.

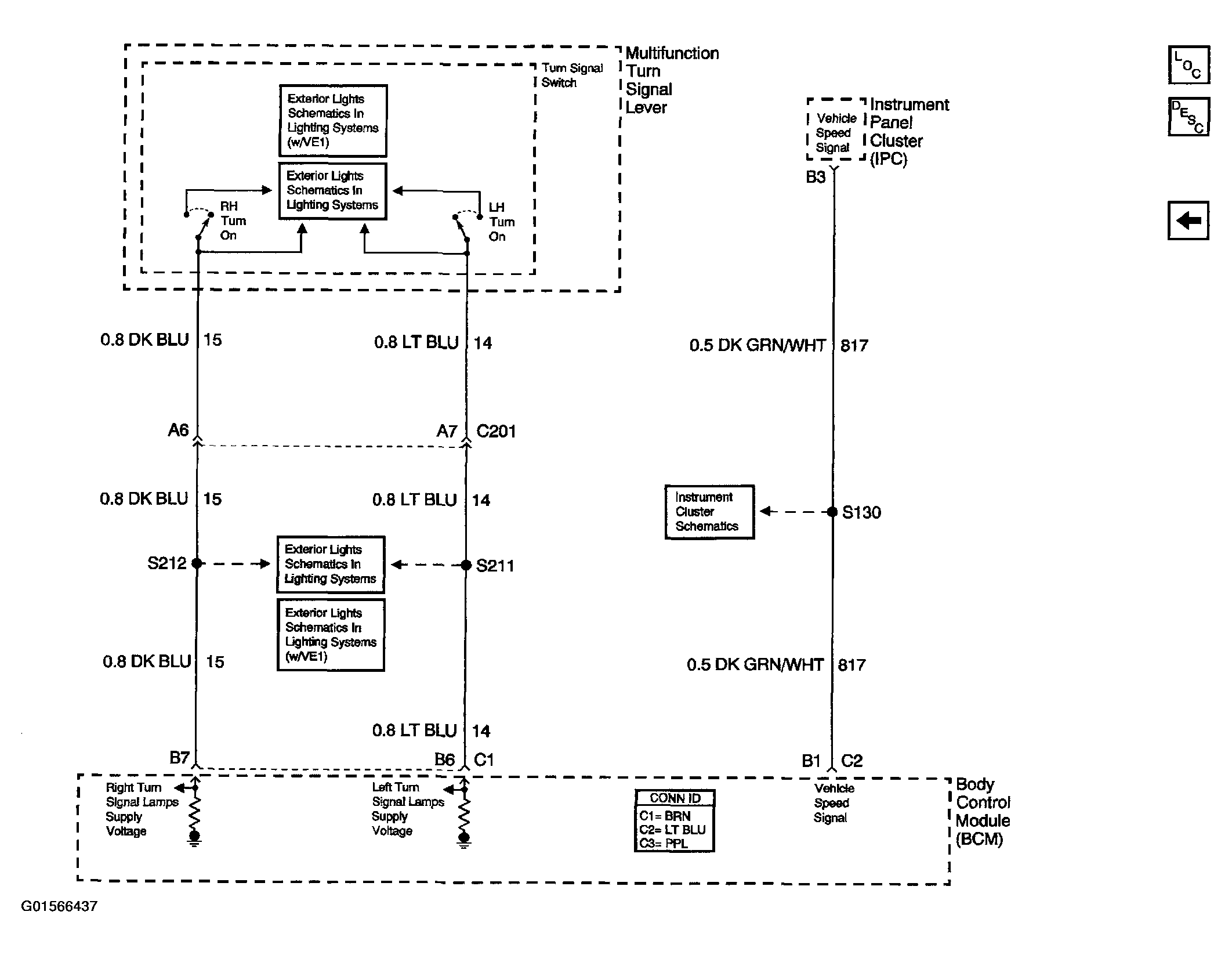

Fig 2: Audible Warnings Schematics (Turn Signal Switch, Vehicle Speed Signal)
G01566437Courtesy of GENERAL MOTORS CORP.
