Installation Procedure

WARNING: This page is about a different car, the 2003 GMC Safari and 2003 Chevrolet Astro. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the bulb to the compartment lamp switch.
  2. Connect the electrical connector to the switch.
  3. Install the compartment lamp switch and press in order to engage the tabs.
  4. Close the instrument panel storage compartment.

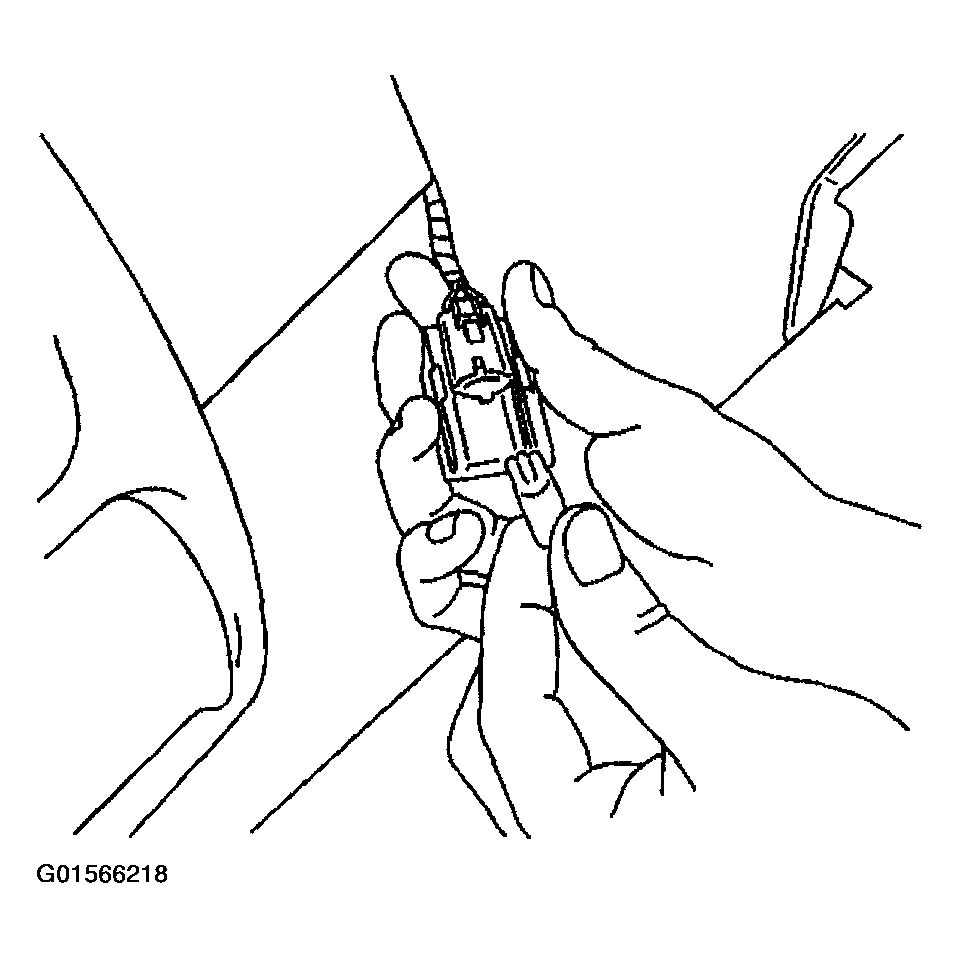

    Fig 1: Installing Instrument Panel (I/P) Storage Compartment Lamp
    G01566218Courtesy of GENERAL MOTORS CORP.
