Installation Procedure

WARNING: This page is about a different car, the 2003 GMC Safari and 2003 Chevrolet Astro. However, it is still accessible from the selected car via links, so may be relevant.
  1. Connect the electrical connection to the DRL photo sensor (1).
  2. Insert the DRL photo sensor (1) and turn counterclockwise 1/4 turn in order to seat.
  3. Install the defogger grille located in the center of the dash by push downward.

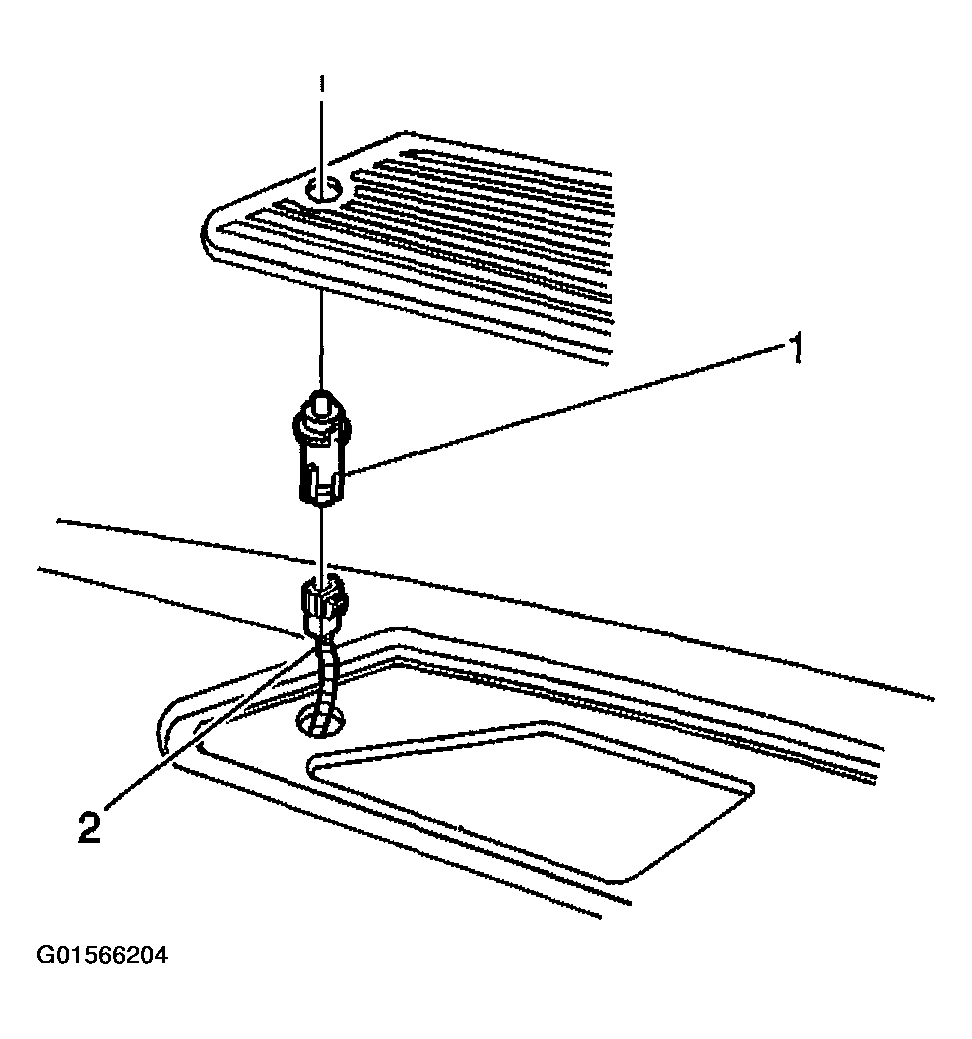

    Fig 1: Installing Ambient Light Sensor
    G01566204Courtesy of GENERAL MOTORS CORP.
