Installation Procedure

WARNING: This page is about a different car, the 2003 GMC Safari and 2003 Chevrolet Astro. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the new bulb (If required).
  2. Install the lens or reflector to the vehicle.
  3. Insert the front tab of the lens or reflector into the slot in the door panel.
  4. Pivot the lens or reflector into the door panel.
  5. Press the lens or reflector at the rear until the lens or reflector snaps into the door panel.

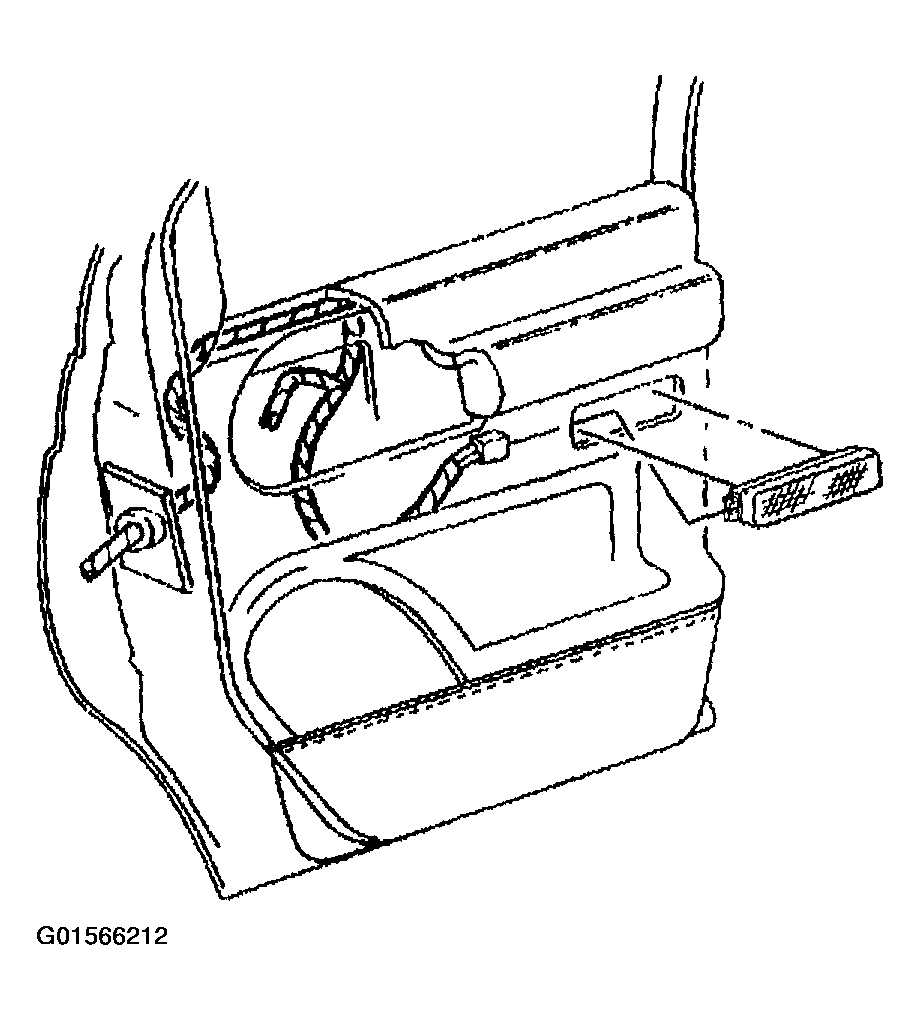

    Fig 1: Installing Courtesy Lamp/Reflector
    G01566212Courtesy of GENERAL MOTORS CORP.
