Ambient Air Temperature Sensor Resistance

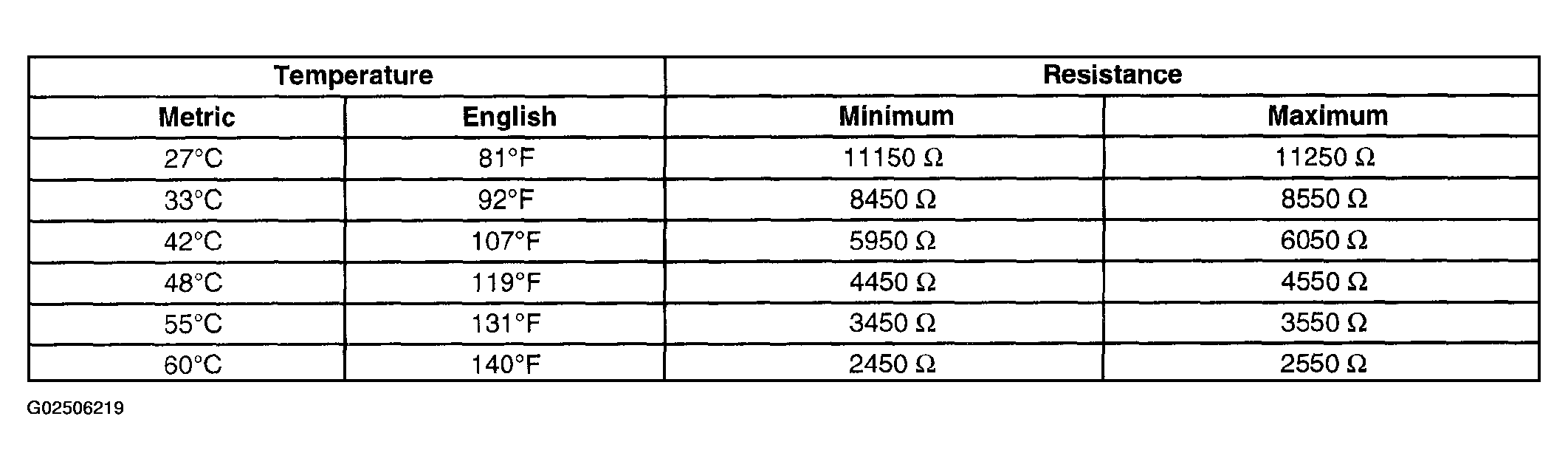

Fig 1: Ambient Air Temperature Sensor Resistance Table

G02506219

Courtesy of GENERAL MOTORS CORP.
