Removal Procedure

  1. Remove the electrical center cover.
  2. Locate the relay. Refer to Electrical Center Identification Views  to locate the relay in the electrical center.

    Important:

    • Always note the orientation of the relay.
    • Make sure the electrical center is secure, as not to put added stress on the wires or terminals.
  3. Using the J 43244  (1) position the tool on opposing corners of the relay (2).
    NOTE: Use J 43244  to pull the relay straight out from the electrical center terminals. The use of pliers or a flat bladed tool could damage the electrical center.
  4. Remove the relay (2) from the electrical center.

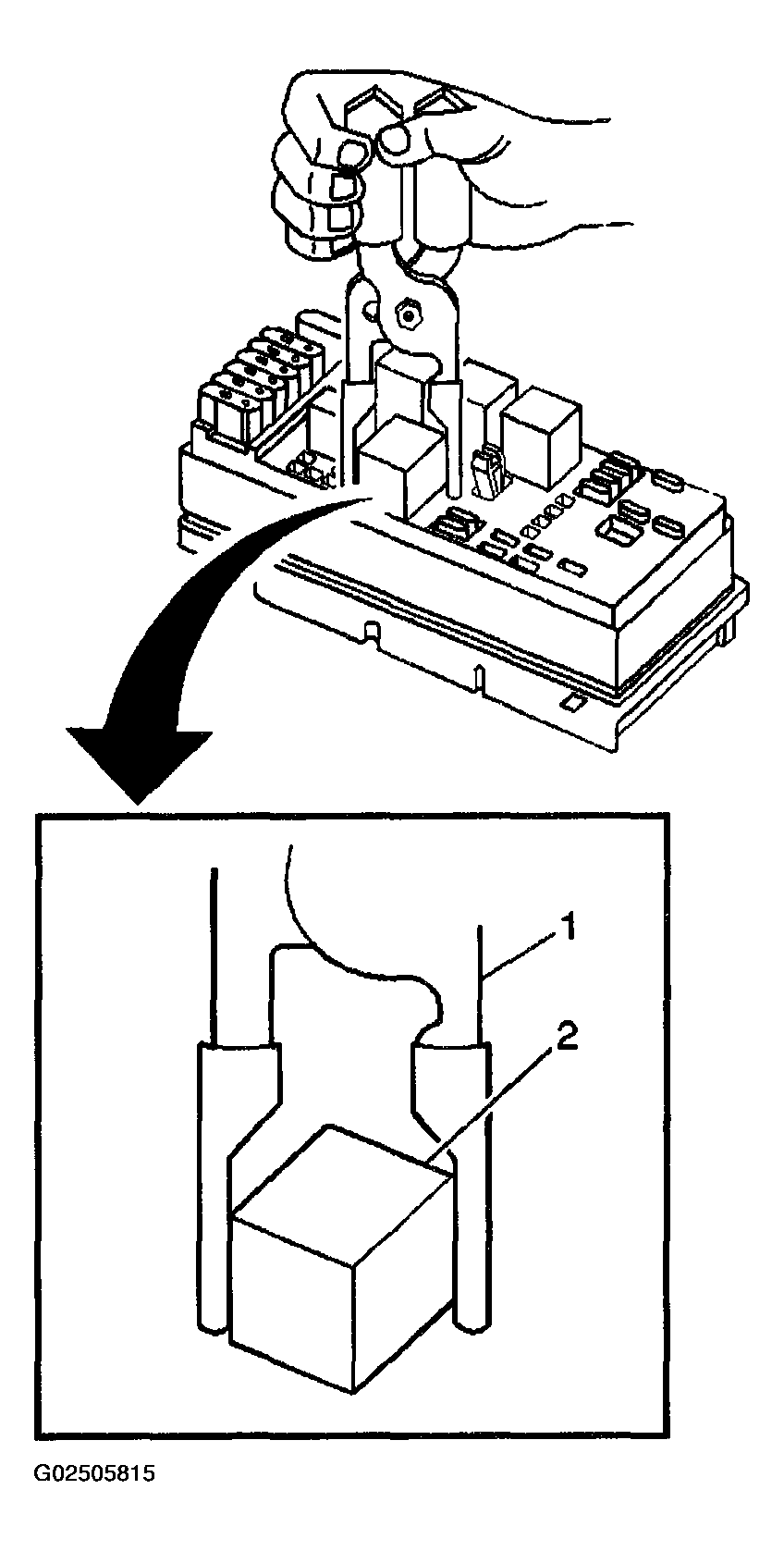

    Fig 1: Removing Relay From Electrical Center
    G02505815Courtesy of GENERAL MOTORS CORP.
