Power & Grounding Component Views

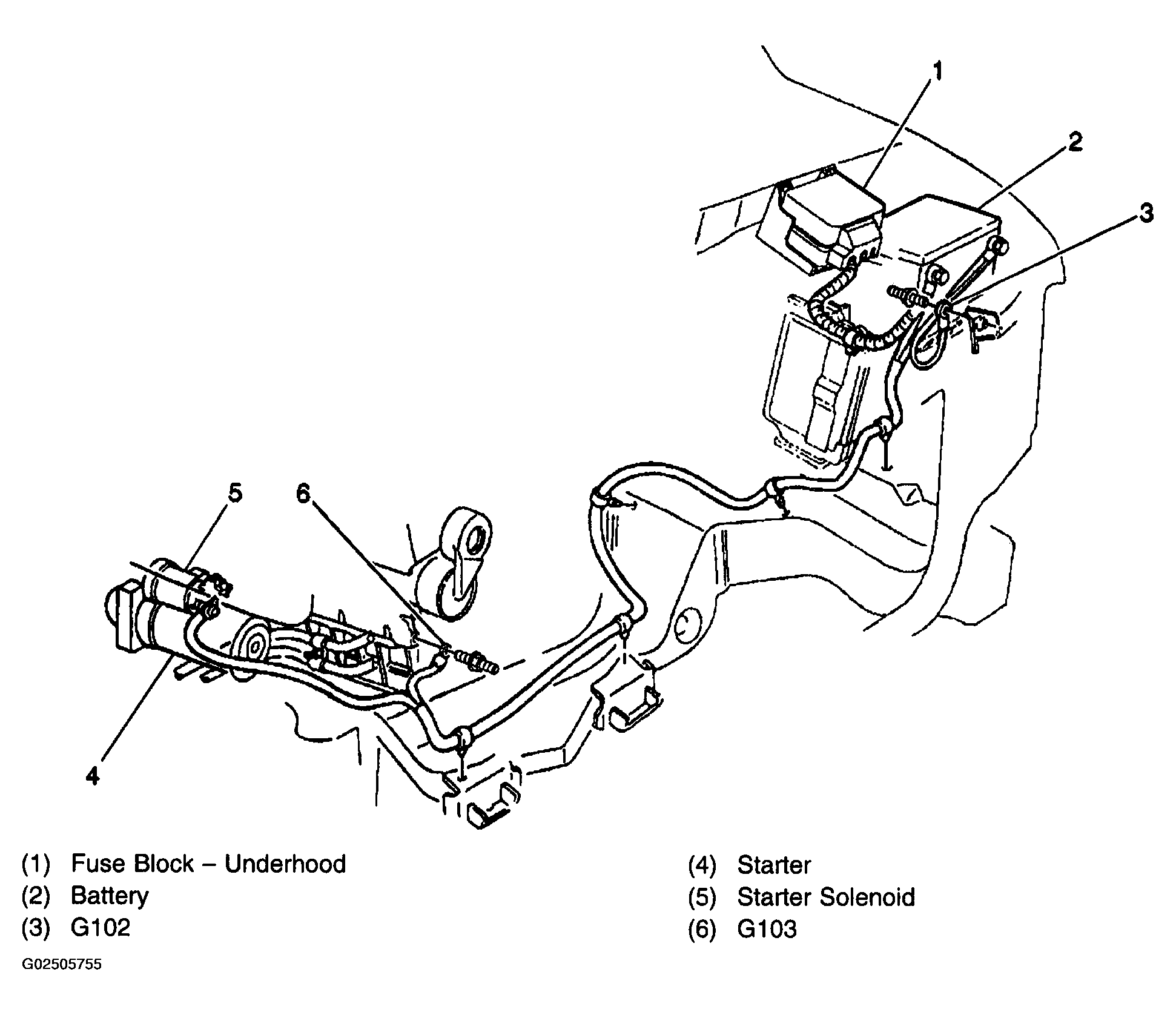

Fig 1: Battery Wiring (RWD)
Courtesy of GENERAL MOTORS CORP.

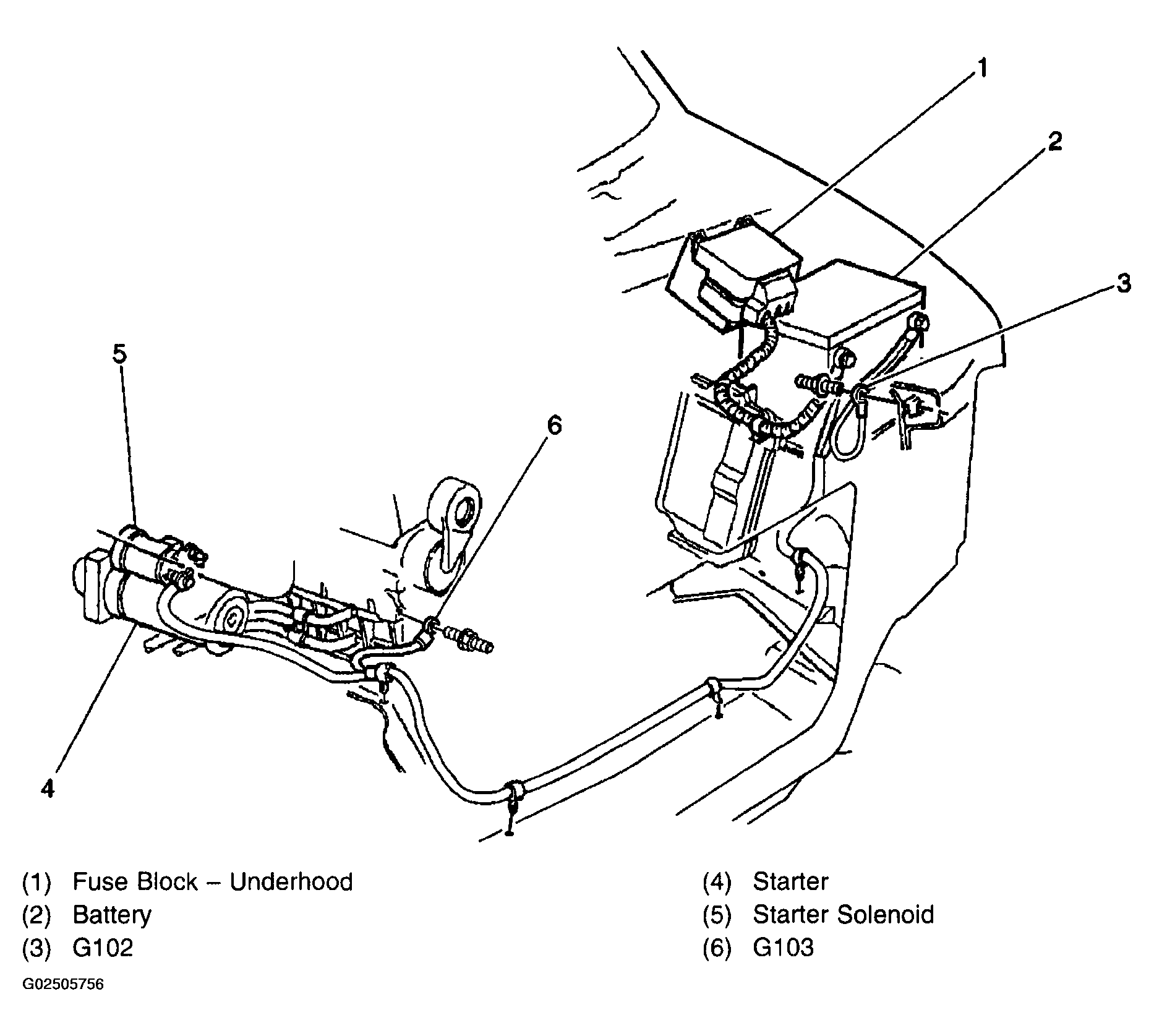

Fig 2: Battery Wiring (AWD)
Courtesy of GENERAL MOTORS CORP.

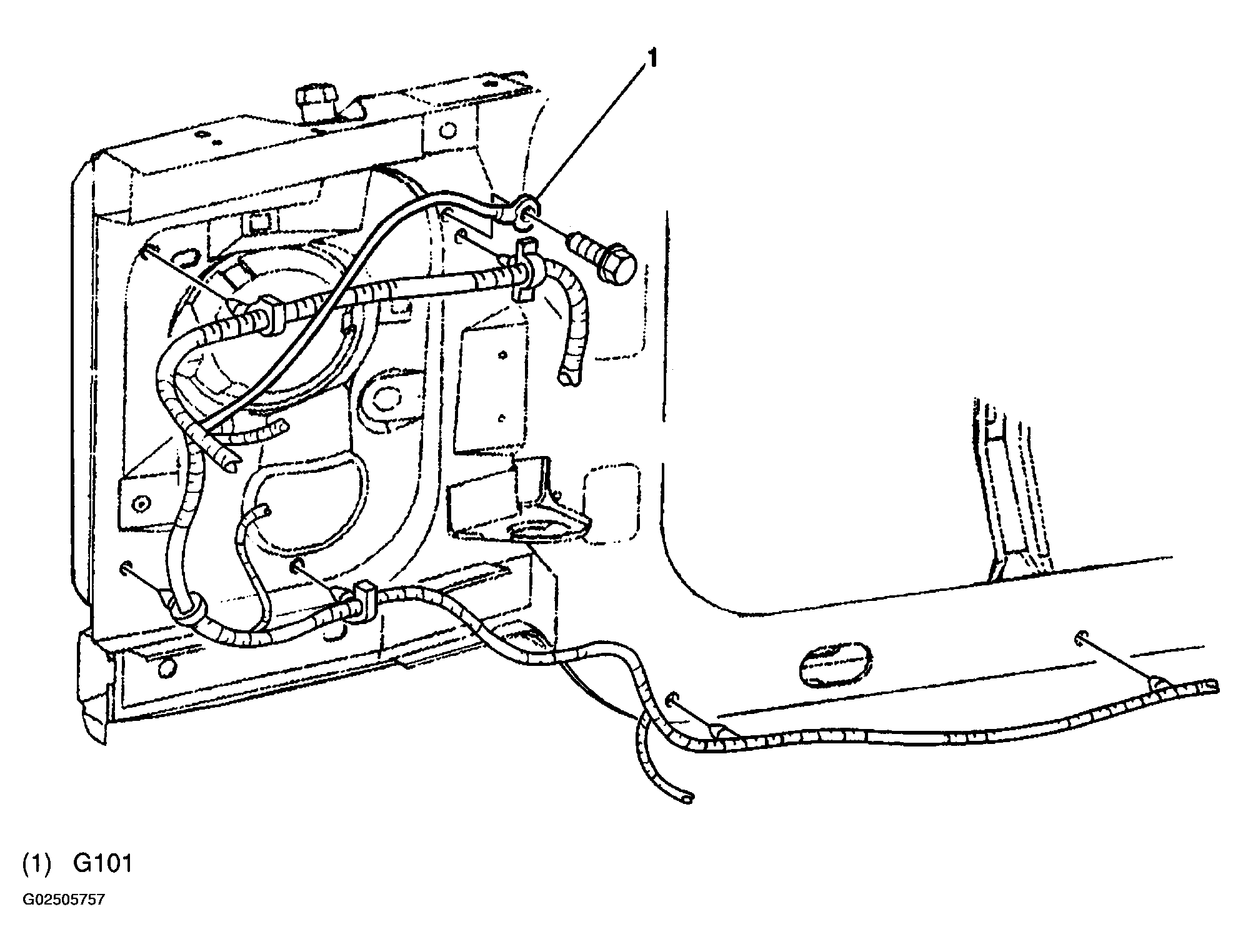

Fig 3: LH Forward Lamp Ground
Courtesy of GENERAL MOTORS CORP.

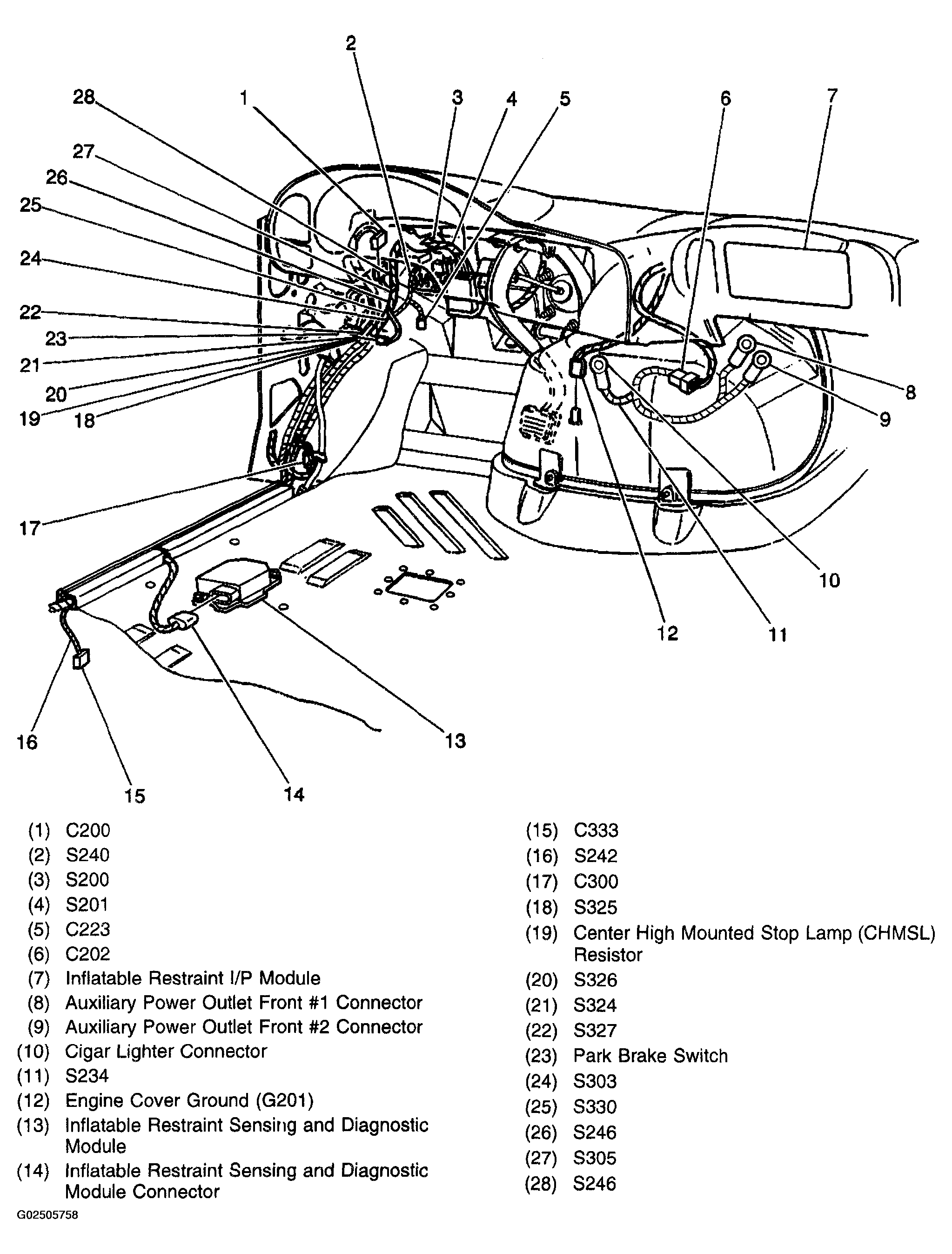

Fig 4: Left Front Interior Wiring
Courtesy of GENERAL MOTORS CORP.

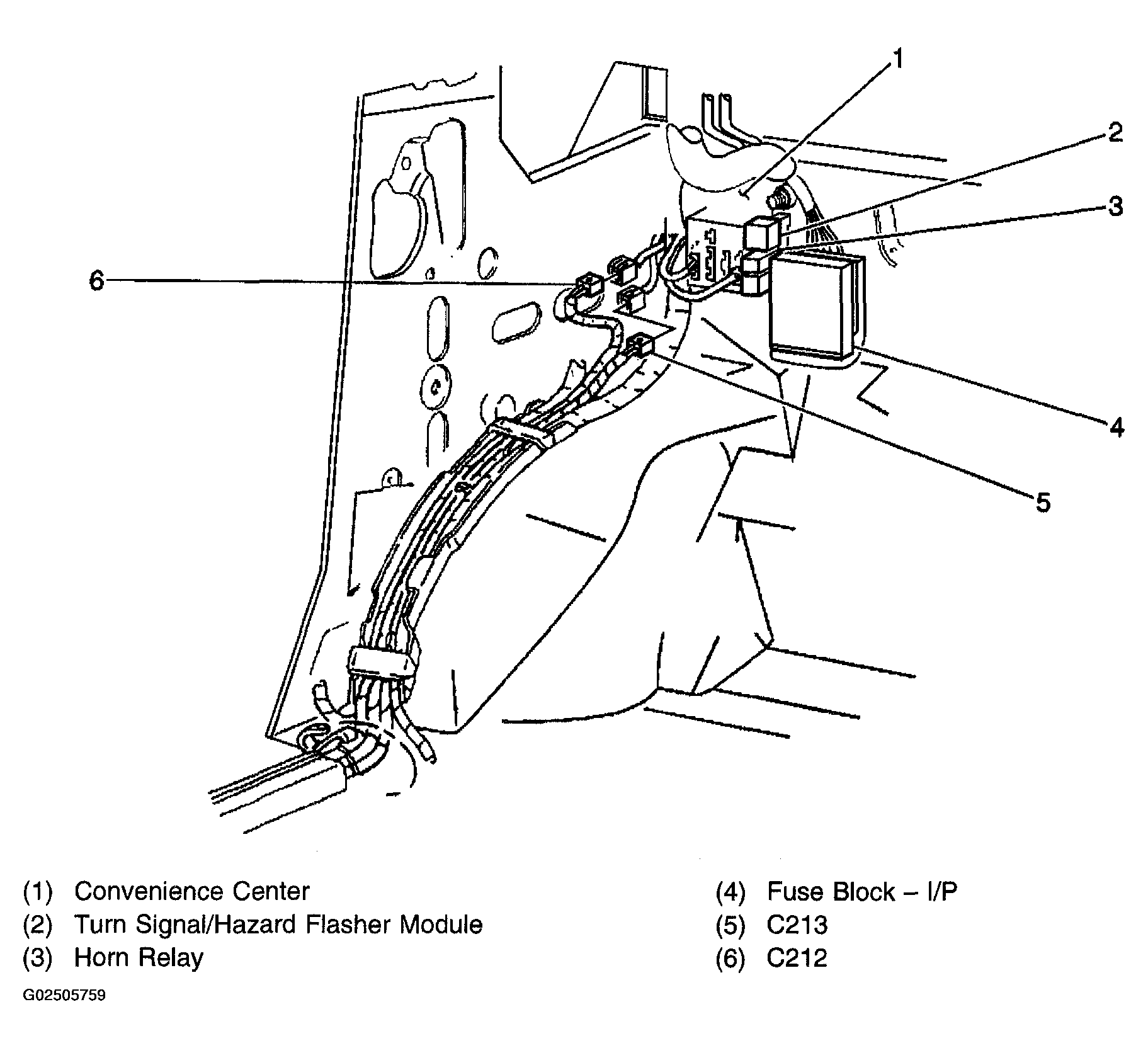

Fig 5: Fuse Block - I/P Location View
Courtesy of GENERAL MOTORS CORP.

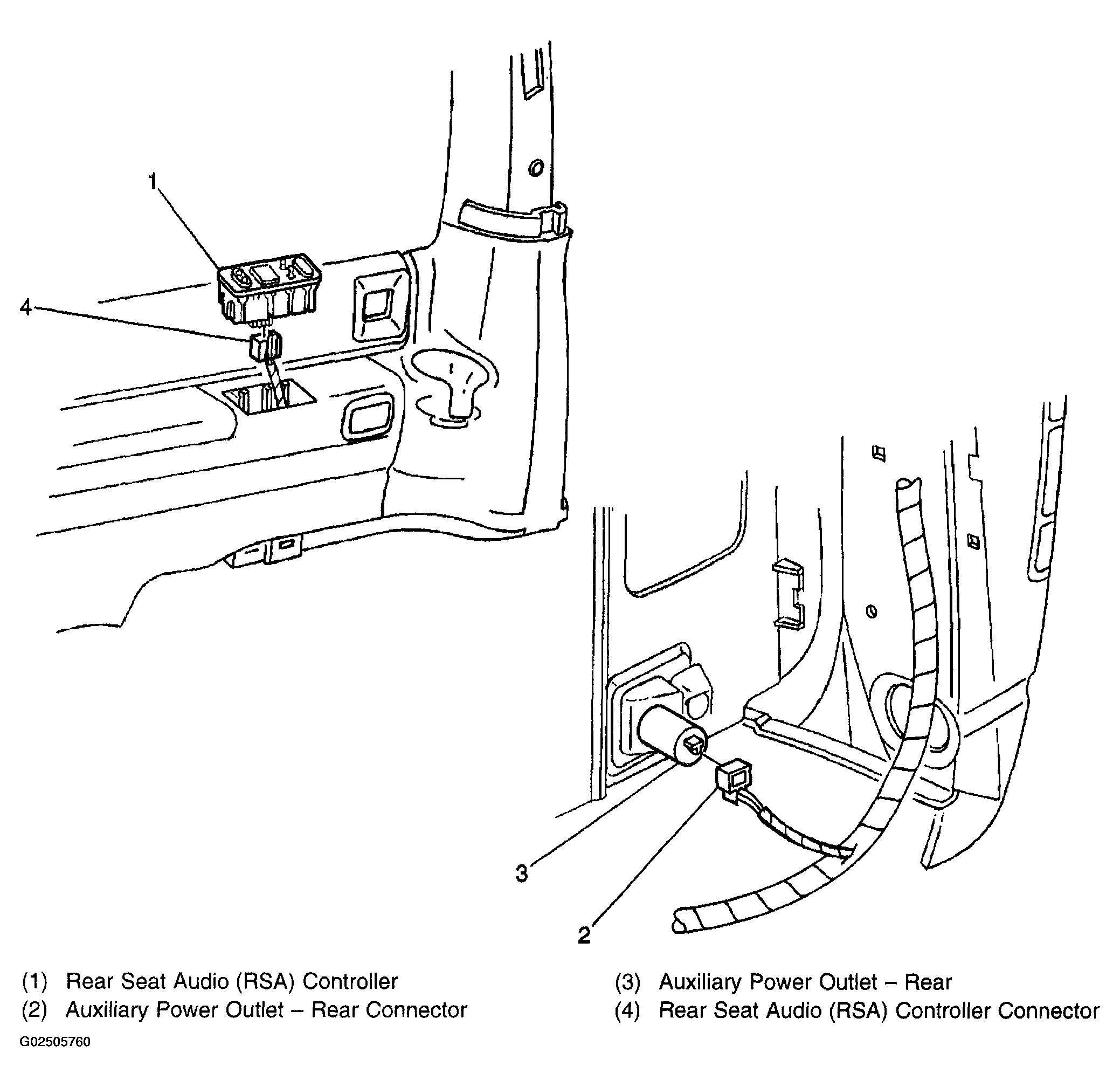

Fig 6: RSA Controller/Auxiliary Power Outlet - Rear Wiring
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
