Wheel Bearing Wear - Rear Drive Axle (Tapered): Misalignment

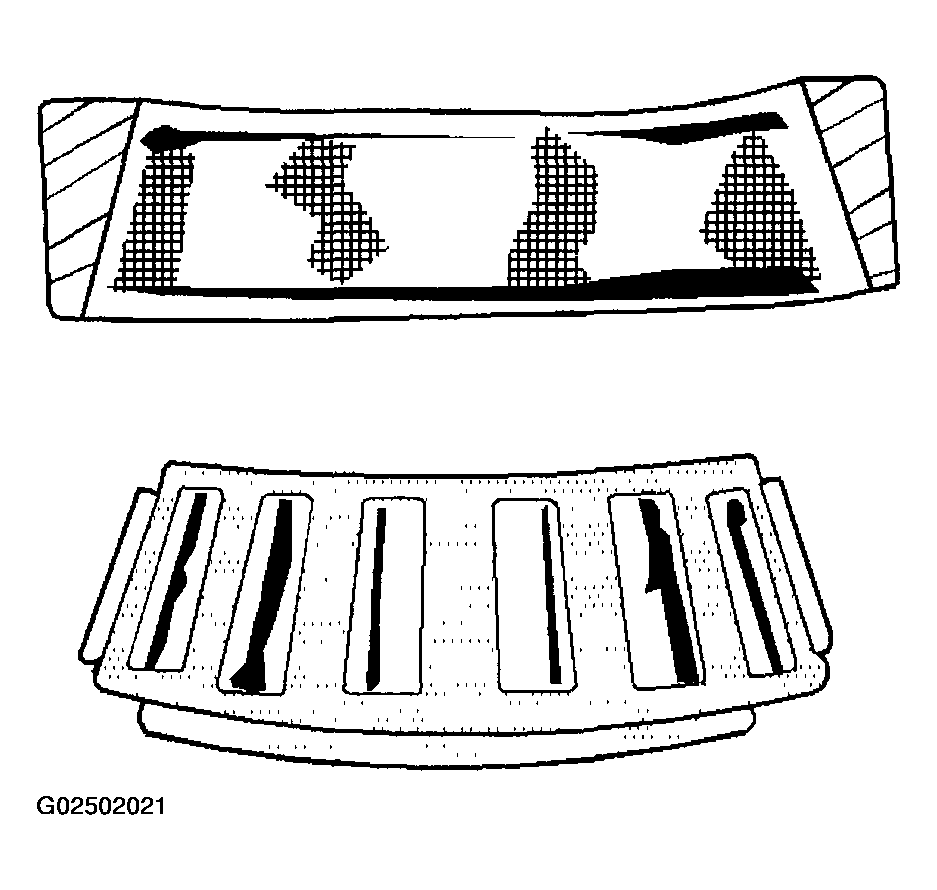

Fig 1: Misalignment Pattern

Courtesy of GENERAL MOTORS CORP.

A misaligned outer race due to a foreign object. Clean the related parts. Replace the bearing. Ensure the races are properly sealed.
