Wheel Bearing Wear - Rear Drive Axle (Tapered): Galling

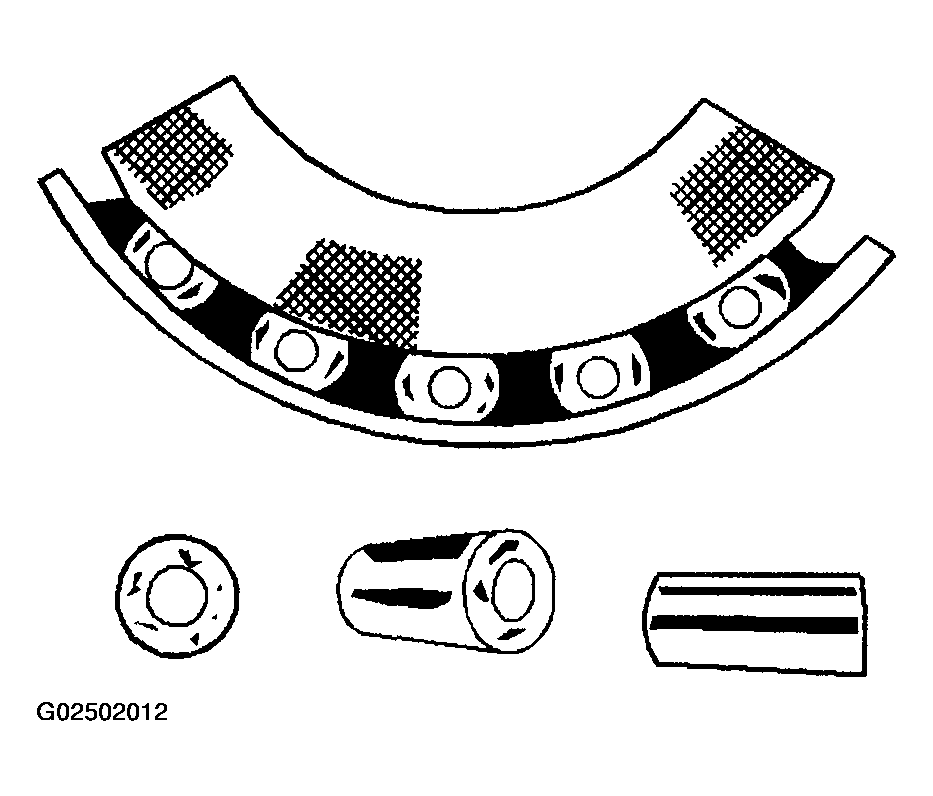

Fig 1: Galling Pattern
G02502012Courtesy of GENERAL MOTORS CORP.

Metal smears on the roller ends due to overheating, lubricant failure, or lubricant overload. Replace the bearing. Check the seals. Check for proper lubrication.
