Wheel Bearing Wear - Rear Drive Axle (Tapered): Etching

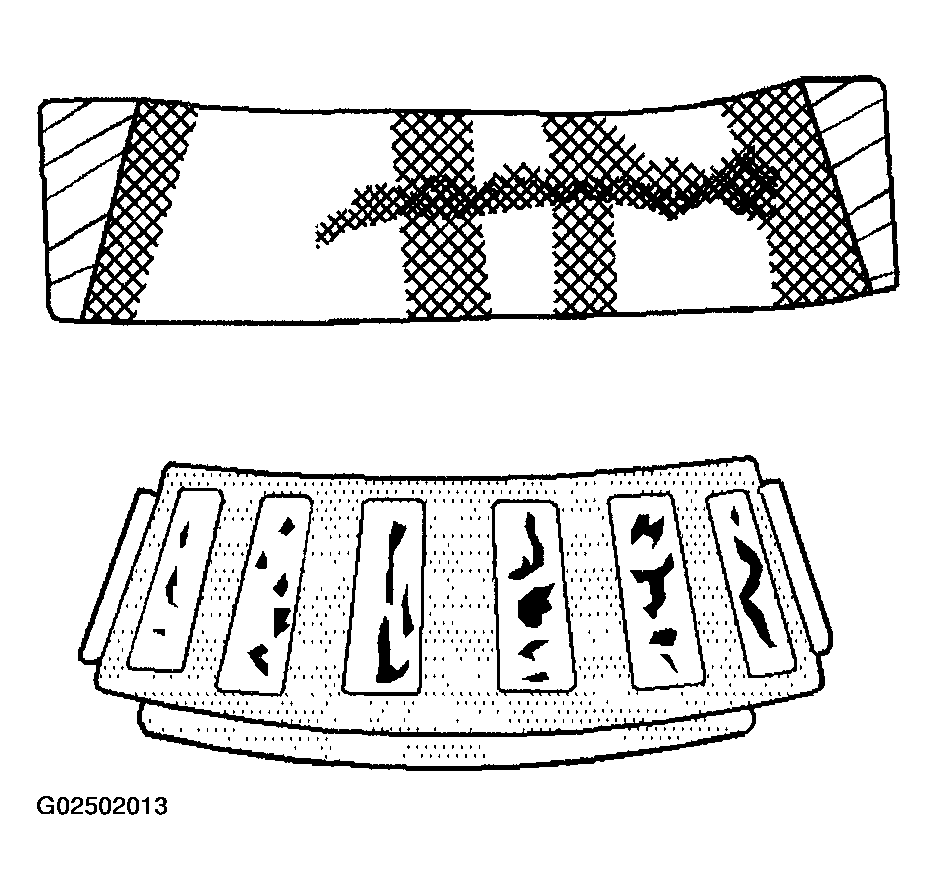

Fig 1: Etching Pattern

Courtesy of GENERAL MOTORS CORP.

Bearing surfaces appear gray or grayish black in color, with related etching away of material usually at roller spacing. Replace the bearings. Check the seals. Check for proper lubrication.
