Wheel Bearing Wear - Rear Drive Axle (Tapered): Brinelling

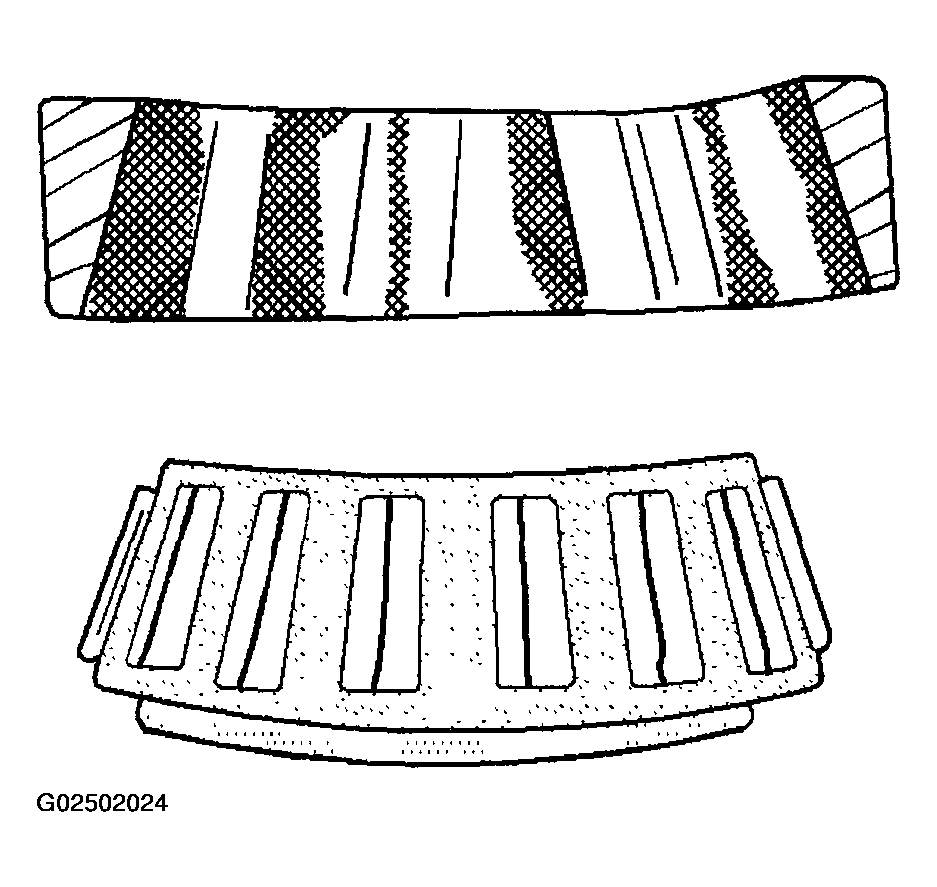

Fig 1: Brinelling Pattern
G02502024Courtesy of GENERAL MOTORS CORP.

Surface indentations in the race way caused by the rollers under impact loading or caused from vibration while the bearing is not rotating. Replace a rough or noisy bearing.
