Double Edge Pitting

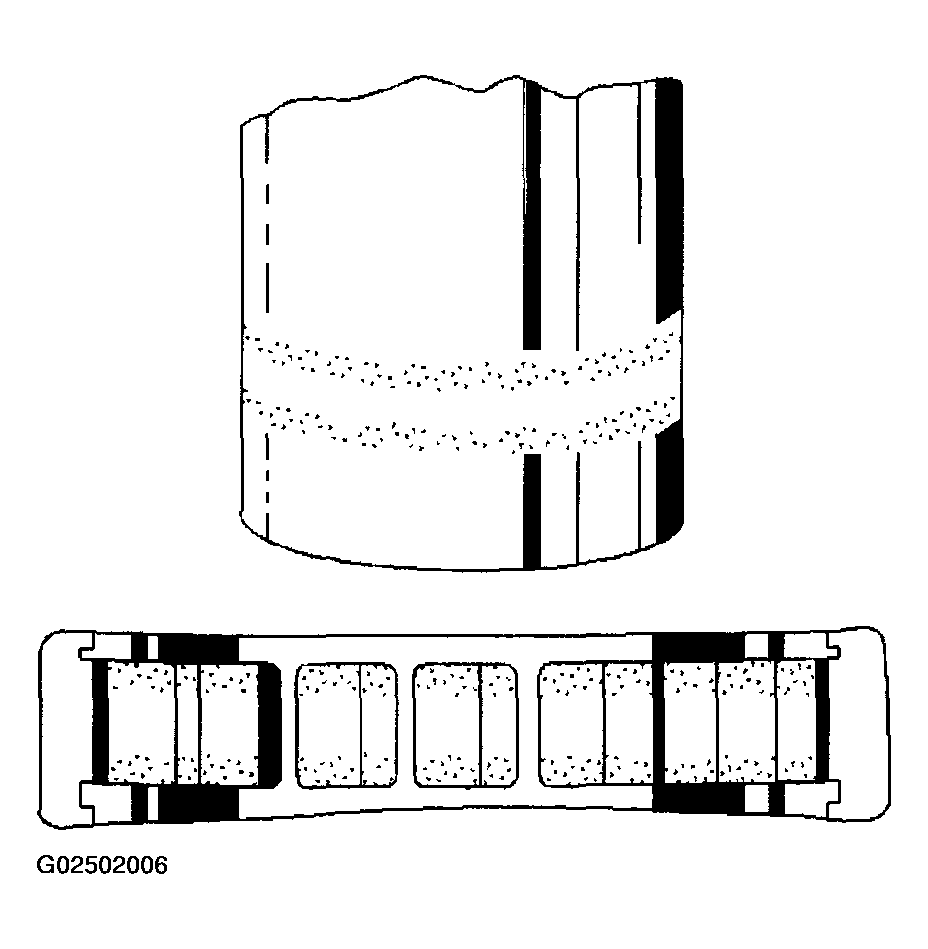

Fig 1: Bearing Double Edge Pitting Pattern
G02502006Courtesy of GENERAL MOTORS CORP.

Flaking of surface metal results from fatigue, usually at both edges of the race and rollers. Replace the bearing. Clean all related parts. Replace the shaft if damaged.
