Wheel Bearing Wear - Rear Drive Axle (Straight): Brinelling

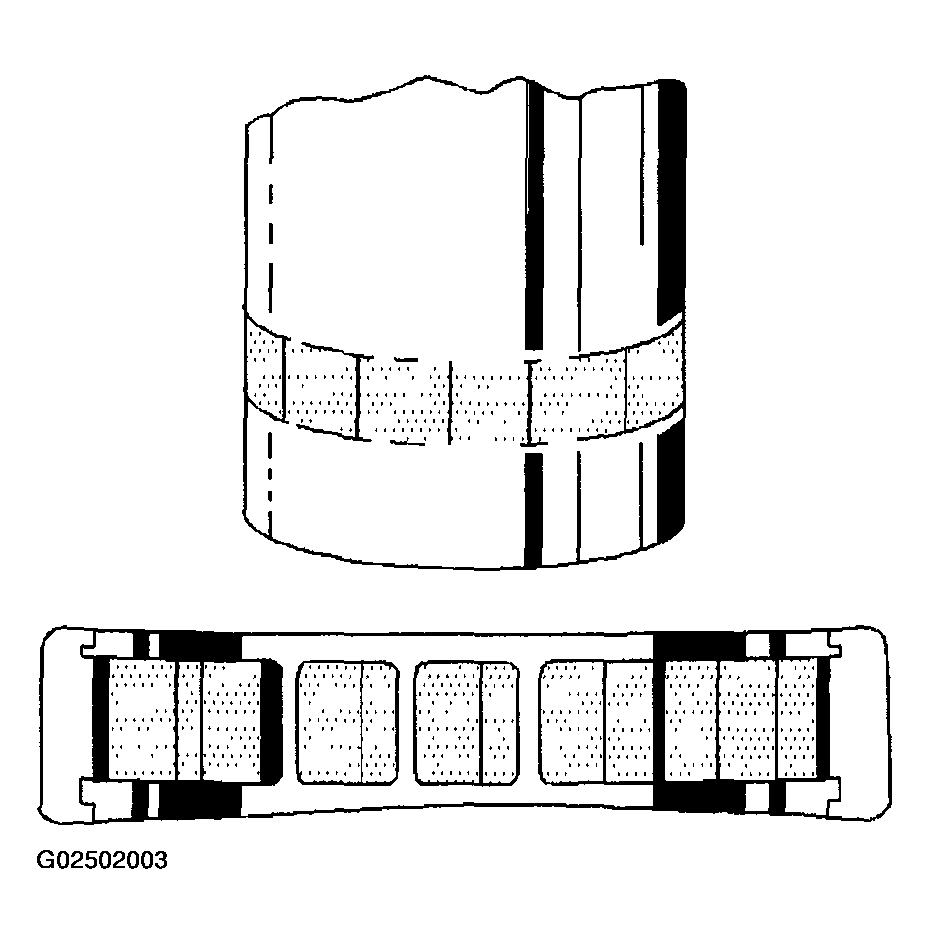

Fig 1: Bearing Brinelling Pattern

Courtesy of GENERAL MOTORS CORP.

Surface indentations in the raceway can be caused by roll either under impact loading or vibration while the bearing is not rotating. Replace the bearing if rough or noisy. Replace the shaft if damaged.
