Wheel Bearing Wear - Front Drive Axle (Tapered): Misalignment

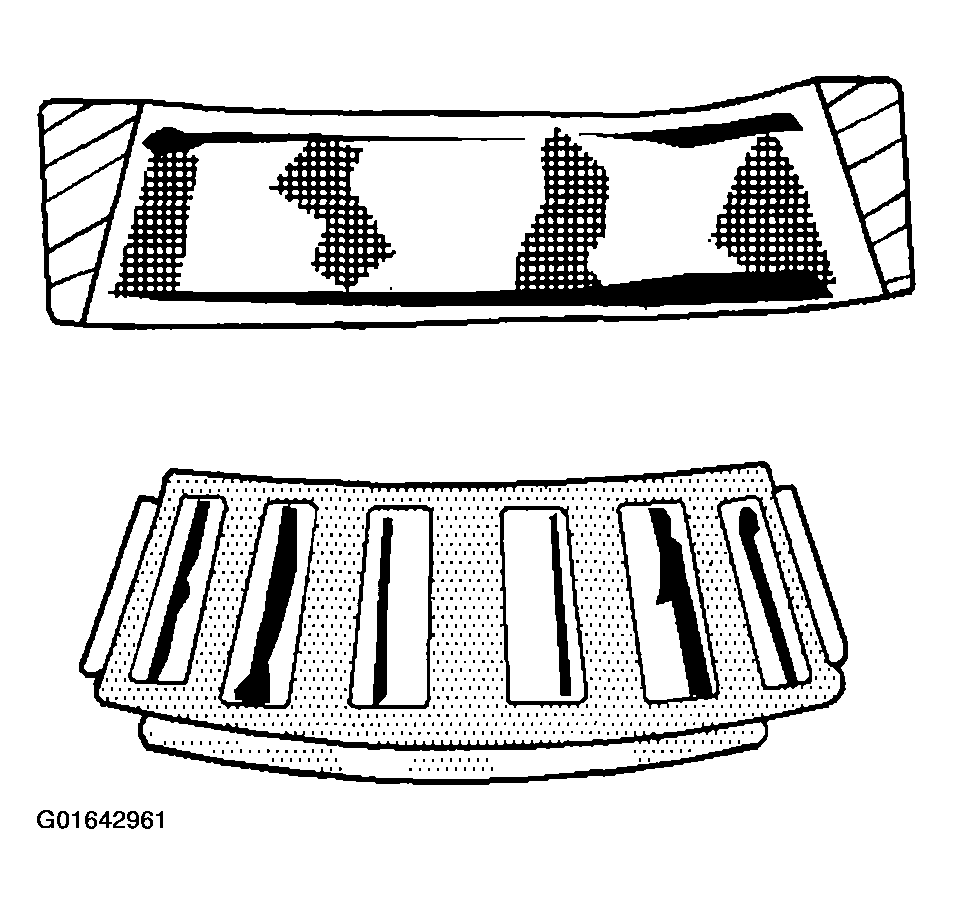

Fig 1: Tapered Roller Bearing Wear - Misalignment

Courtesy of GENERAL MOTORS CORP.

A misaligned outer race due to a foreign object. Clean the related parts. Replace the bearing. Ensure the races are properly sealed.
