Installation Procedure

  1. Install the armrest cover to the armrest, if you removed the cover.

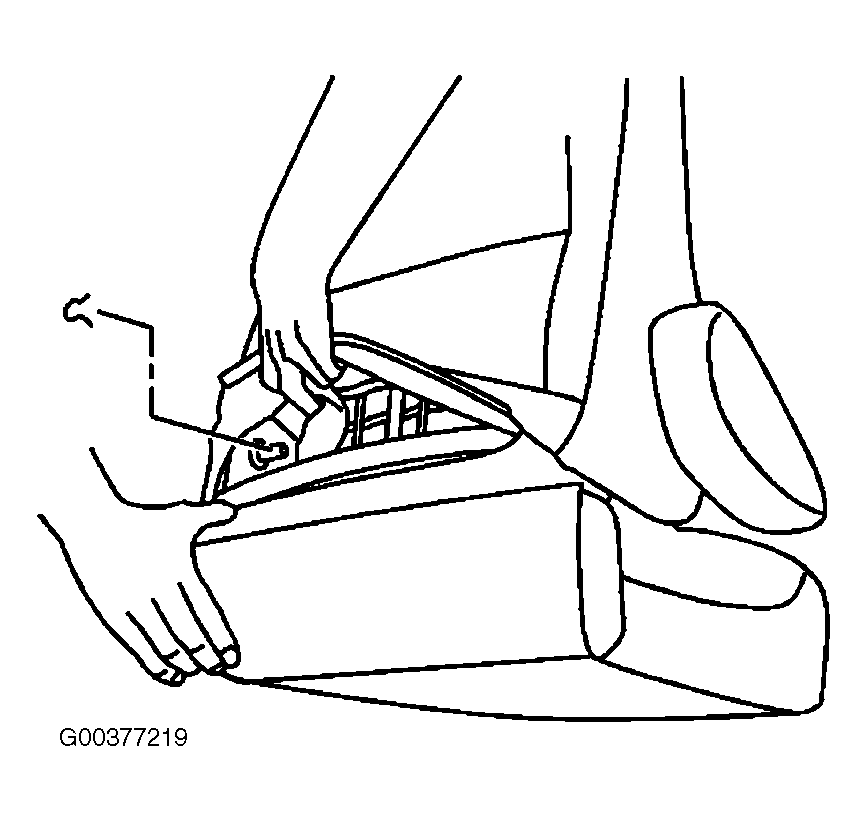

  2. Install the armrest from the seat back. See Figure.
  3. Reach inside the seat back and install the armrest retaining clip.
    • Install the clip with the opening facing down.
    • Observe the fit of the clip once installed. If the clip is loose when fitted in the groove in the seat back frame, remove the clip and crimp the clip closed slightly. Repeat this procedure until the clip fits snugly in the groove, or install a new clip.
  4. Zip the seat back cover. See Figure.
  5. Install the upper and lower seat back latch and seat back hinge trim. Refer to Seat Back Hinge Trim Replacement - Rear Left  and Seat Back Hinge Trim Replacement - Rear Right (YC6)  .
  6. Fold up the seat back.
  7. Install the rear bench seat to the vehicle. Refer to Seat Replacement - Rear Bench (2001)  or Seat Replacement - Rear Bench (2002)  .
