Instrument Cluster Schematics

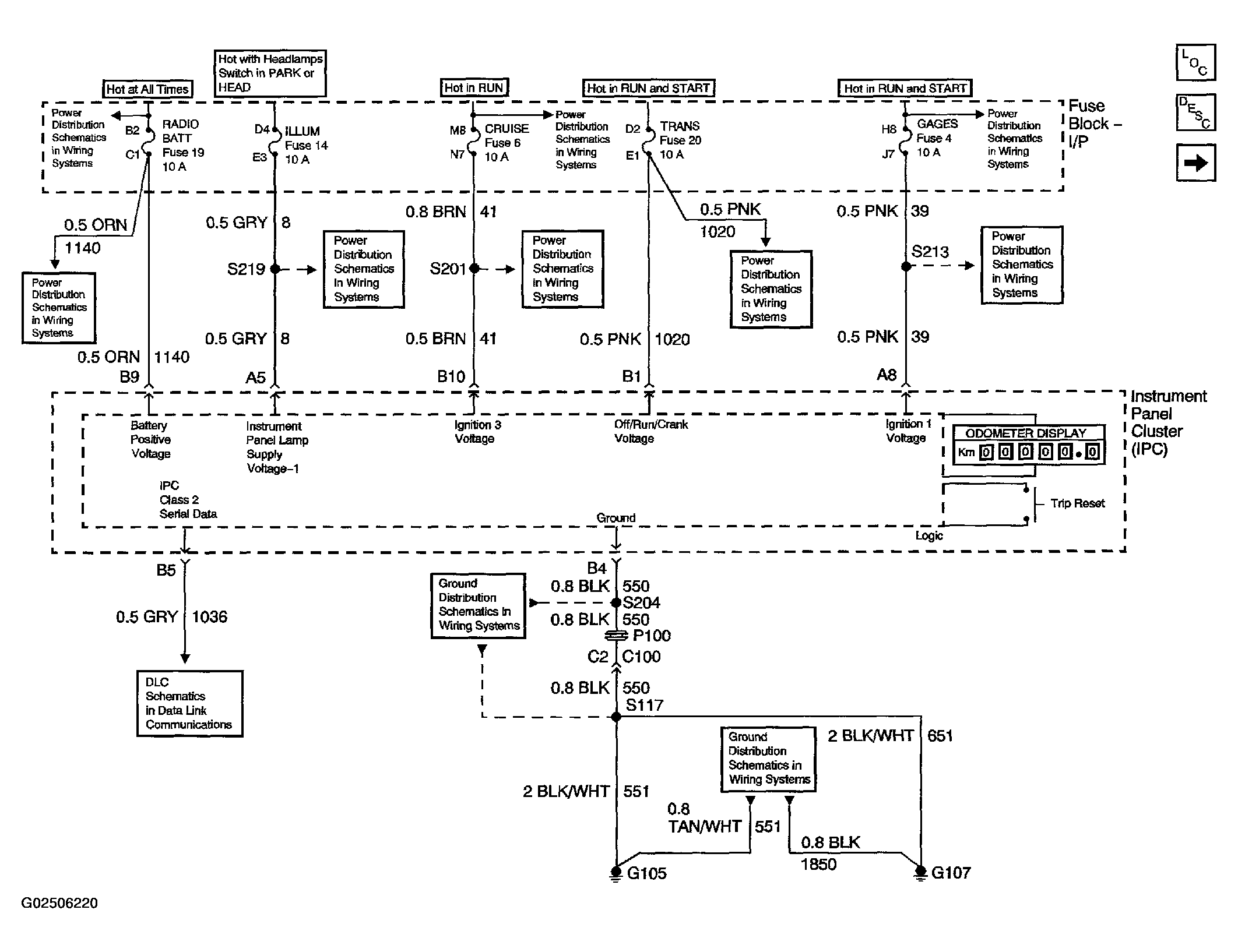

Fig 1: Instrument Cluster Wiring Schematic (Power, Grounds & Data Link Connector)
G02506220Courtesy of GENERAL MOTORS CORP.

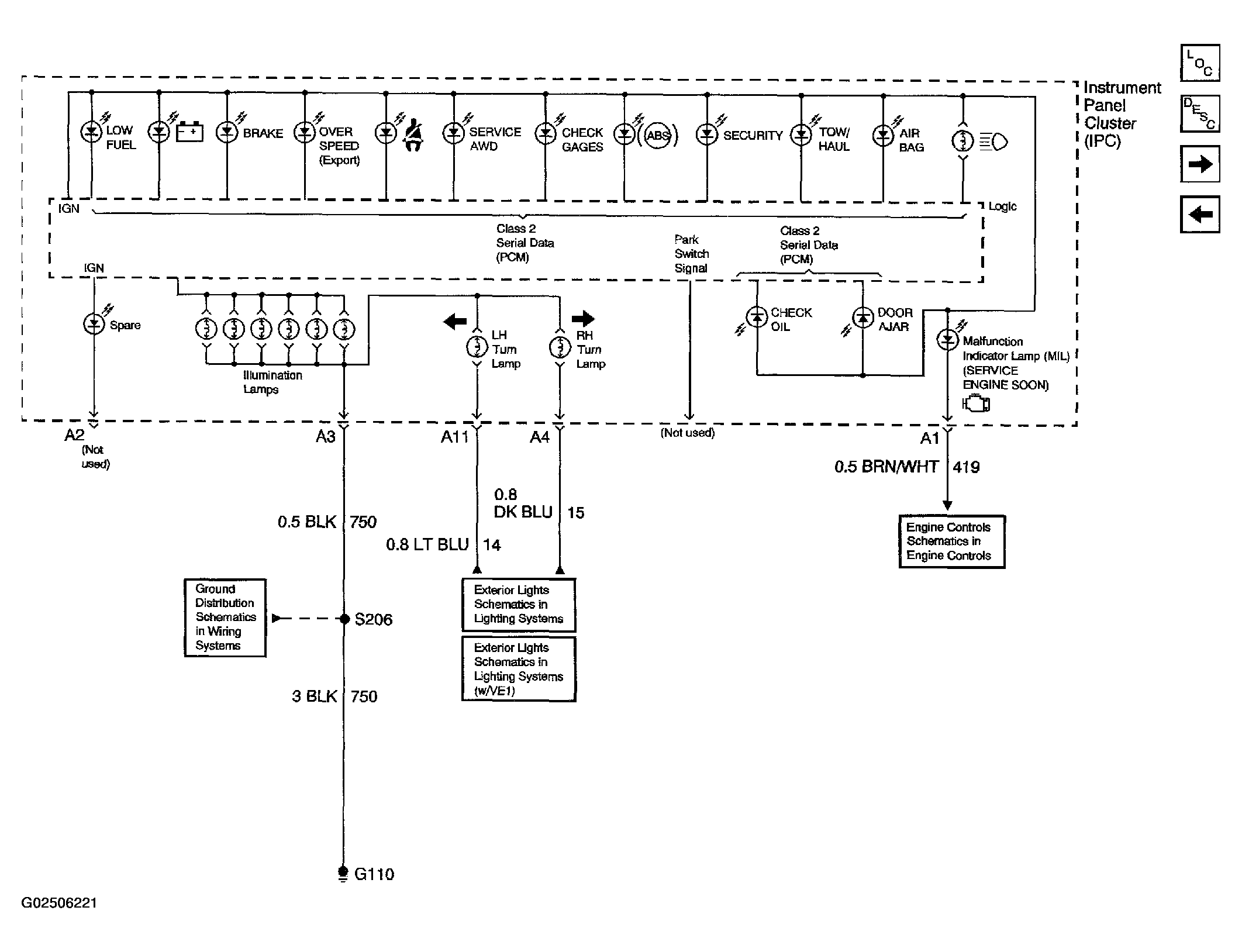

Fig 2: Instrument Cluster Wiring Schematic (Indicators)
G02506221Courtesy of GENERAL MOTORS CORP.

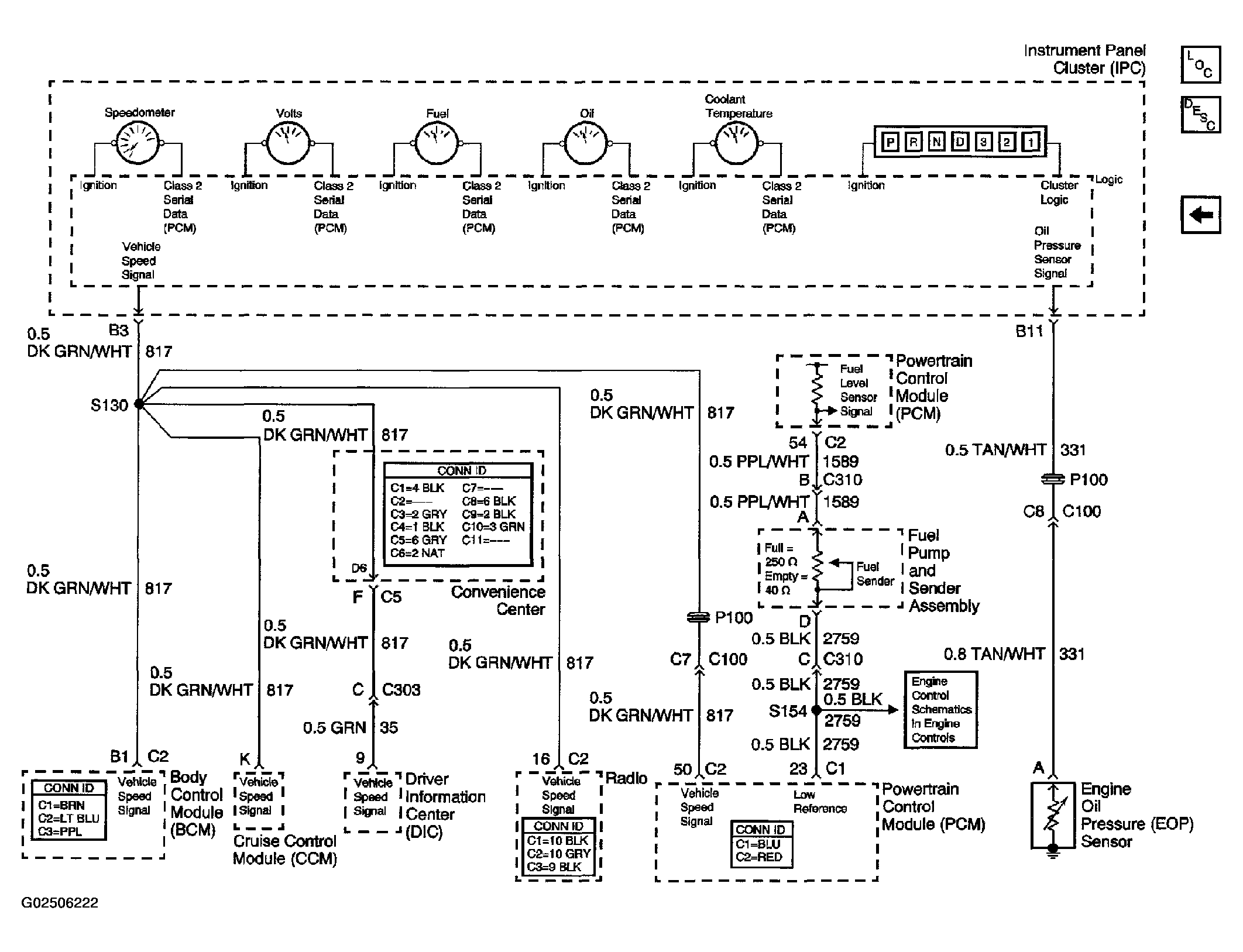

Fig 3: Instrument Cluster Wiring Schematic (Gages)
G02506222Courtesy of GENERAL MOTORS CORP.
