Hazard Lamps Inoperative

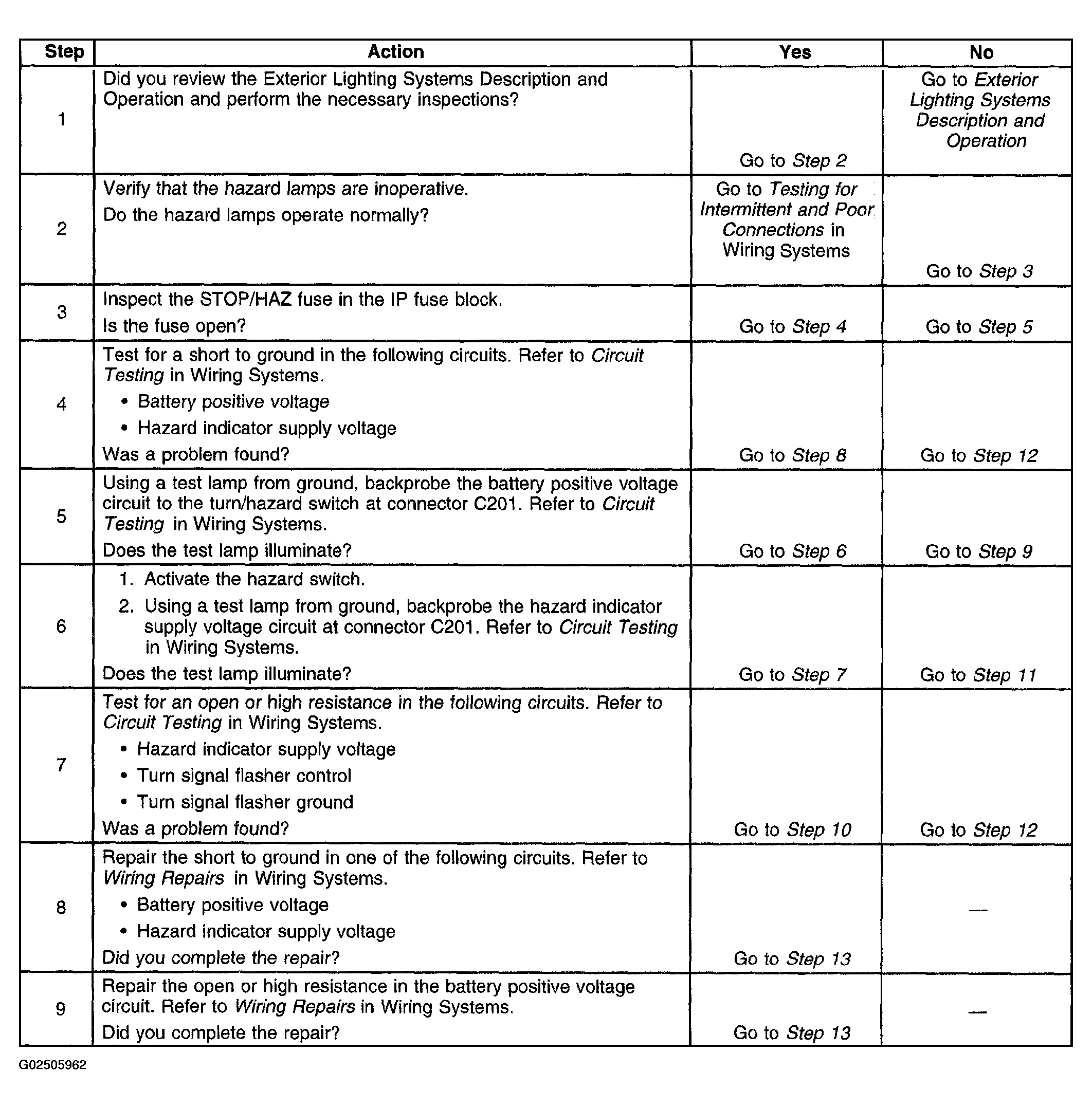

Fig 1: Hazard Lamps Inoperative Diagnosis (Steps 1-9)

G02505962

Courtesy of GENERAL MOTORS CORP.

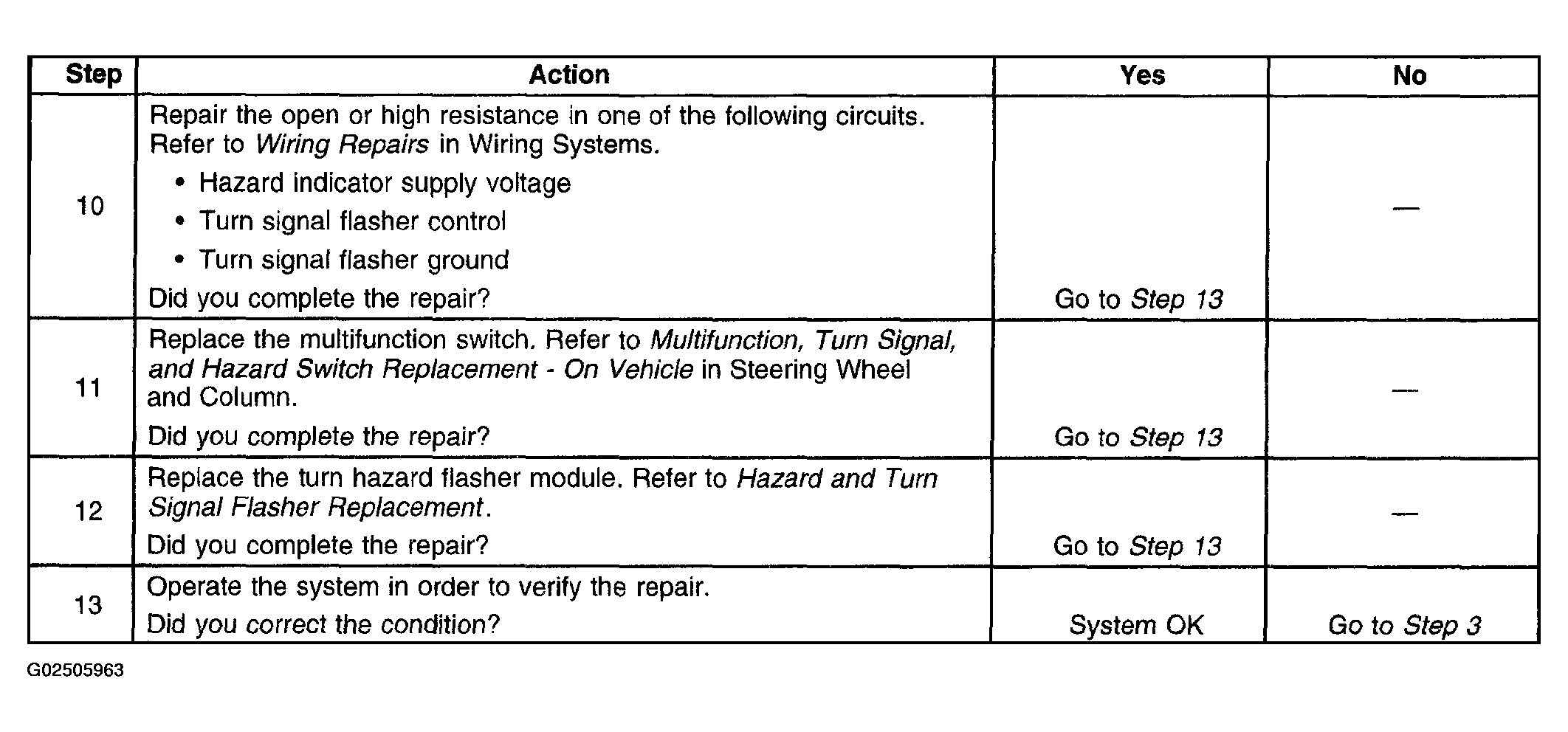

Fig 2: Hazard Lamps Inoperative Diagnosis (Steps 10-13)

G02505963

Courtesy of GENERAL MOTORS CORP.
