Drive Chain (Drive Link) Stretch Check

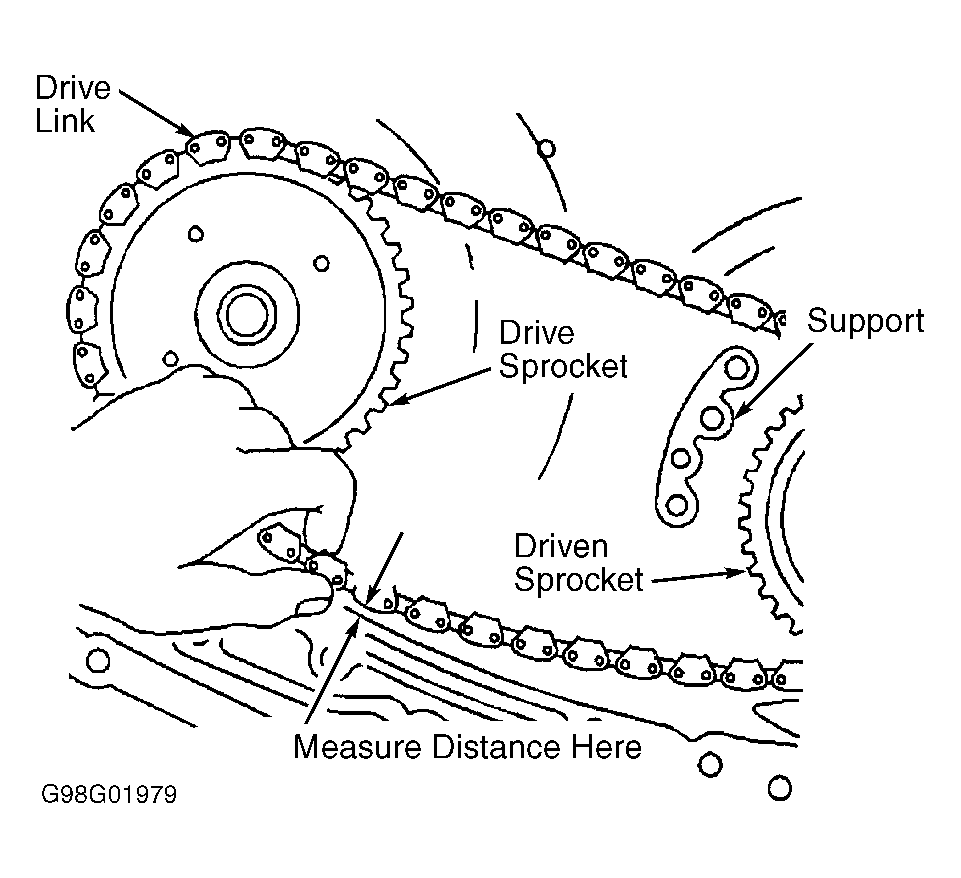

Ensure driven sprocket support assembly and both sprockets are fully seated. Pull drive link toward case at indicated location. See Figure. Measure distance between case and drive link. If measurement is .126" (3.2 mm) or more, drive link may be reused. If measurement is less than .126" (3.2 mm), replace drive link.
