Input Shaft Oil Seal Ring Replacement

  1. Remove solid oil seal rings from input shaft. Inspect seal ring grooves for nicks or burrs. Lubricate each oil seal ring, and position individually onto Seal Protector (J-34741-1). See Fig 1.
  2. Quickly slide each seal into ring groove when protector is in position. Using Seal Driver (J-34741-2), push ring over seal protector. Size seal with Seal Sizer (J-34741-3). Gently twist seal sizer over each seal. Leave sizer in place until input clutch housing installation.

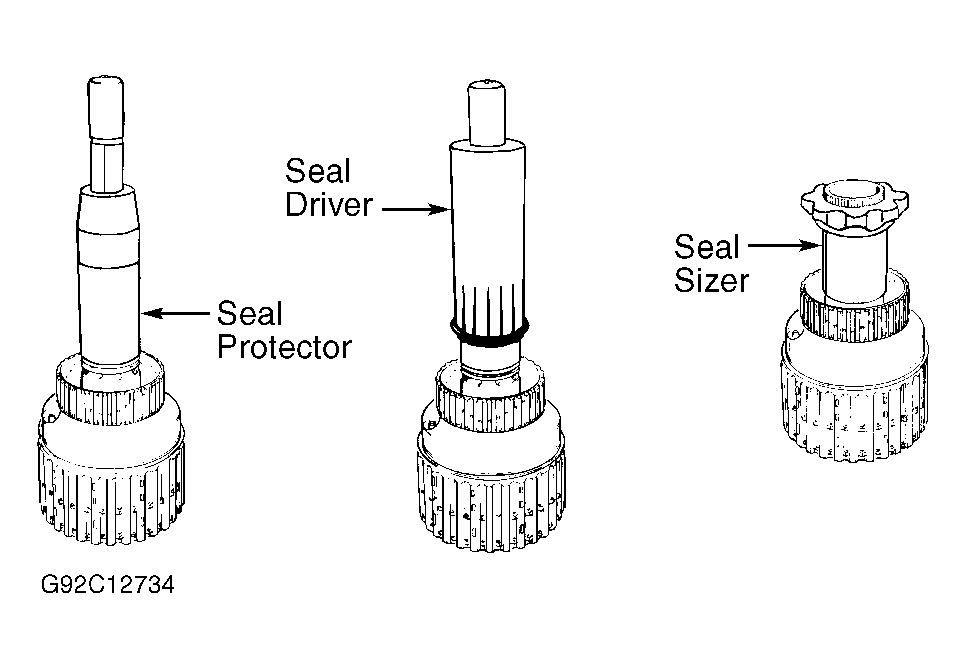

Fig 1: Installing & Sizing Seal Rings To Housing
G92C12734Courtesy of GENERAL MOTORS CORP.
