Disassembly & Reassembly

Using 1/4" drift and hammer, remove check ball valve from input clutch housing. To reassemble, use 3/8" drift and hammer to install check ball valve into input clutch housing. See Fig 1.

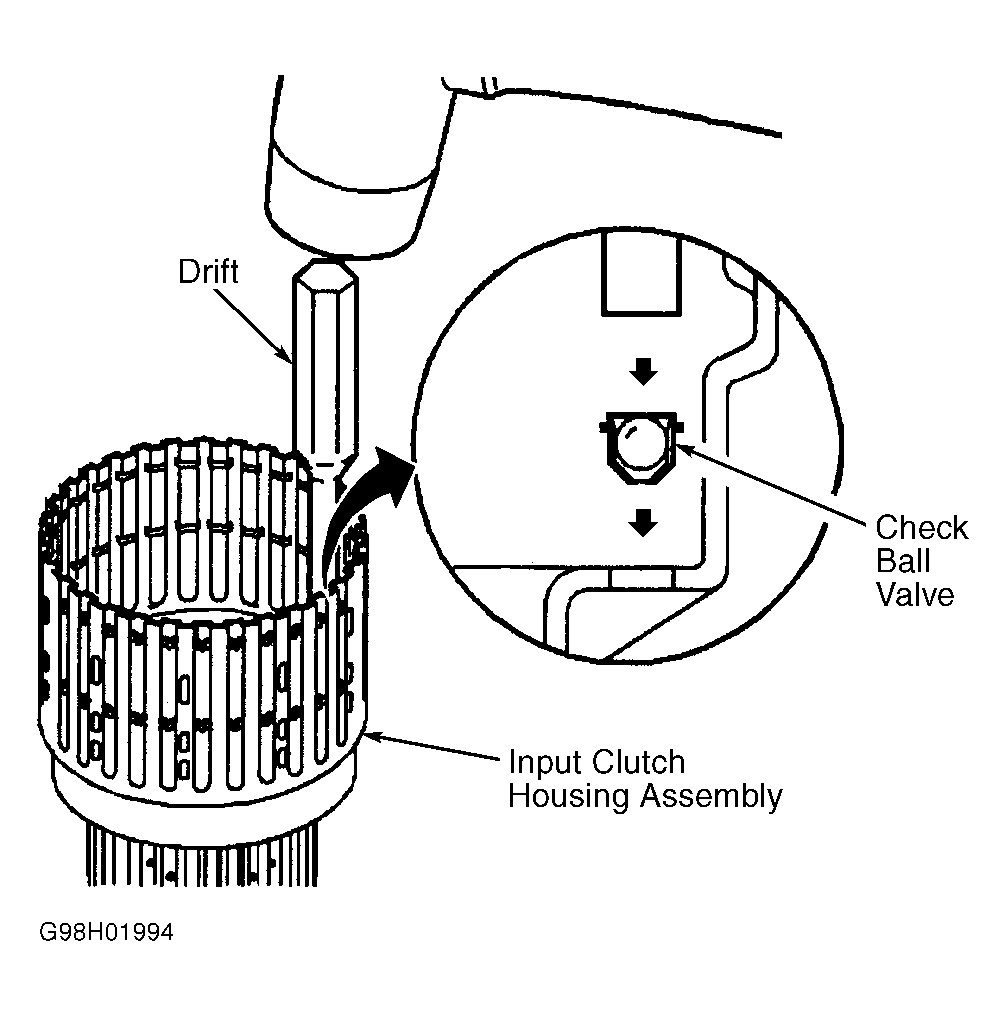

Fig 1: Installing Input Clutch Housing Check Ball Valve

Courtesy of GENERAL MOTORS CORP.
