Drive Sprocket & Turbine Shaft: Reassembly

1. Insert turbine shaft into drive sprocket and install retaining ring. See Fig 1.
2. Install Turbine Shaft Seal Installer/Expander (J-29569-1) onto chain side of turbine shaft. Coat turbine shaft seal installer/expander with petroleum jelly. Slide turbine shaft oil seal rings into position. See Fig 4.
3. Using Turbine Shaft Seal Installer/Compressor (J-29569-2), size chain side turbine shaft oil seal rings. See Fig 5.
4. Install Turbine Shaft Seal Installer/Expander (J-29829-1A) onto converter side of turbine shaft. Coat turbine shaft seal installer/expander with petroleum jelly. Slide turbine shaft oil seal ring into position. See Fig 6.
5. Using Turbine Shaft Seal Installer/Compressor (J-29829-2), size converter side turbine shaft oil seal ring. See Fig 7.

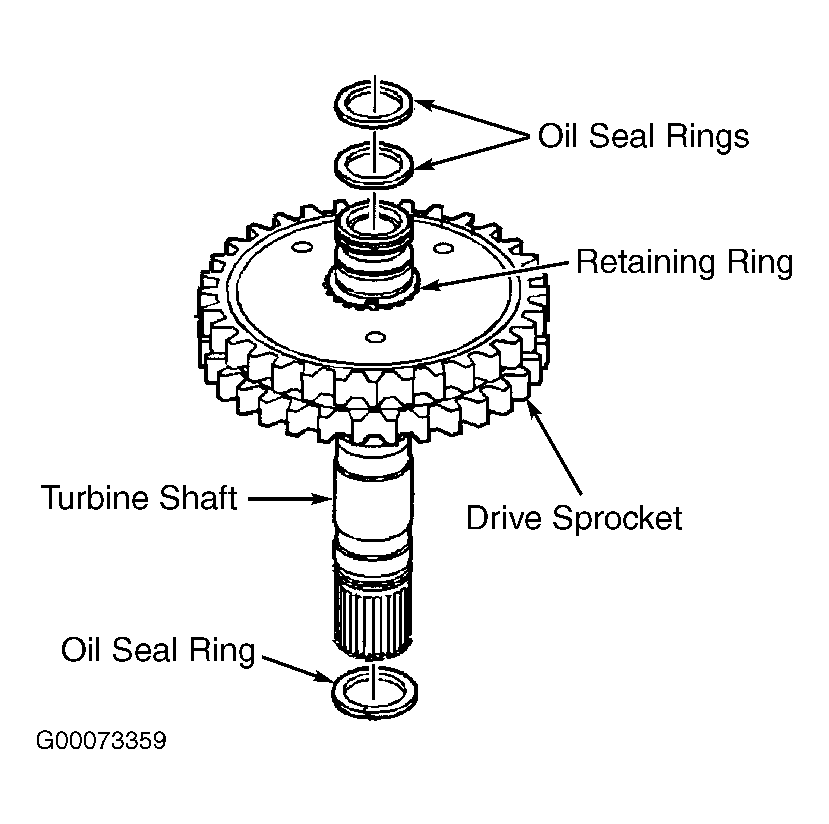

Fig 1: Removing Turbine Shaft Oil Seal Rings & Drive Sprocket

Courtesy of GENERAL MOTORS CORP.

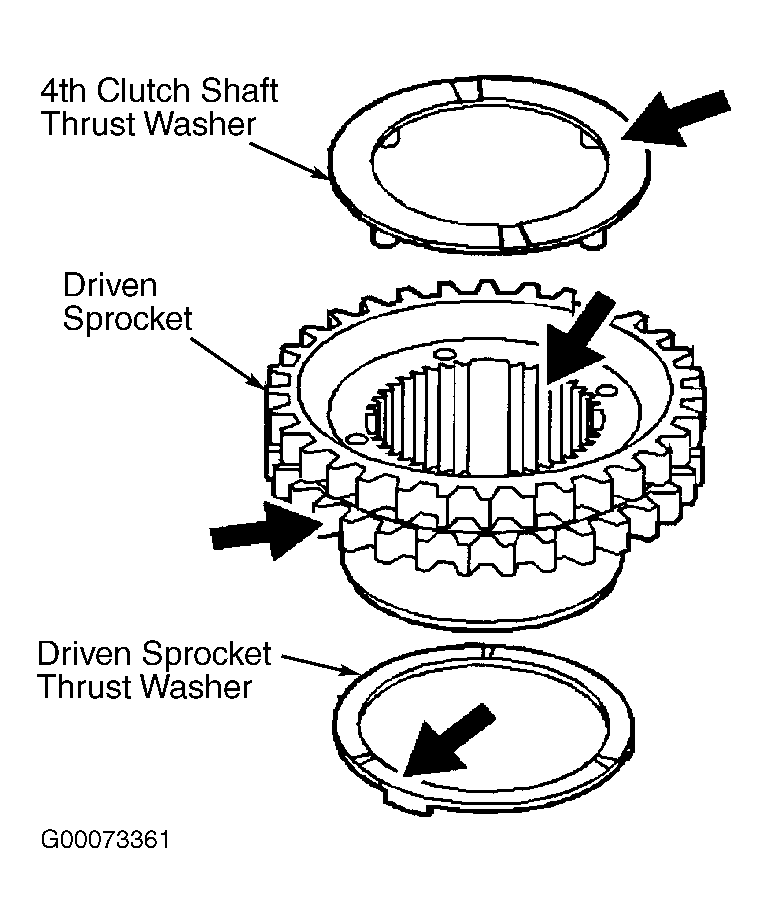

Fig 2: Inspecting Driven Sprocket Assembly

Courtesy of GENERAL MOTORS CORP.

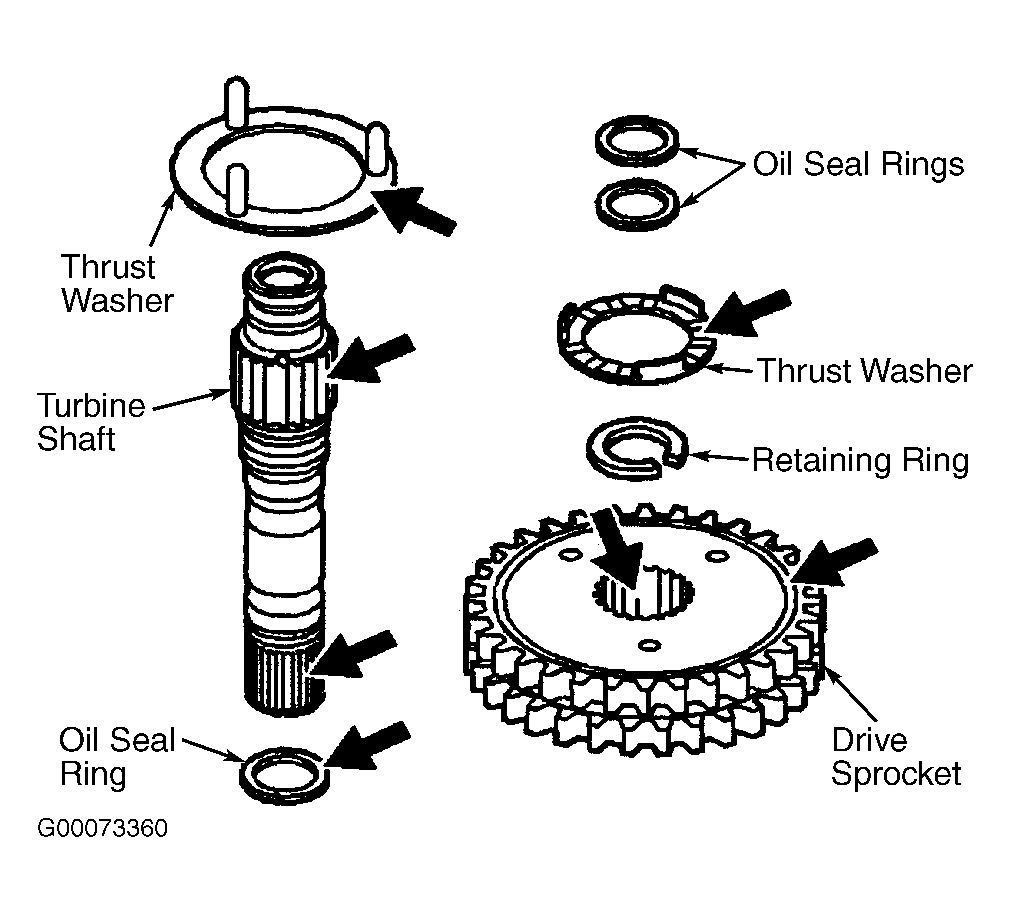

Fig 3: Inspecting Drive Sprocket & Turbine Shaft Assembly

Courtesy of GENERAL MOTORS CORP.

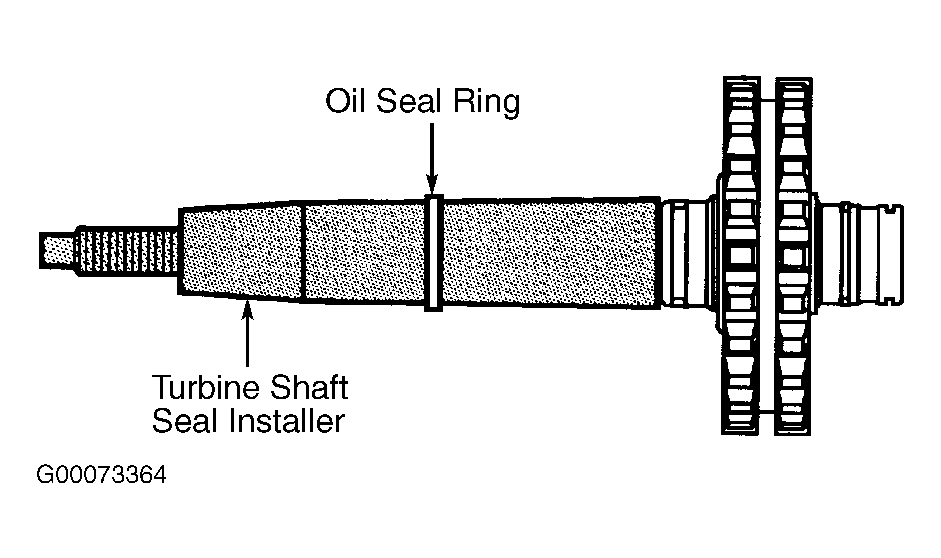

Fig 4: Installing Turbine Shaft Oil Seal Rings (Chain Side)

Courtesy of GENERAL MOTORS CORP.

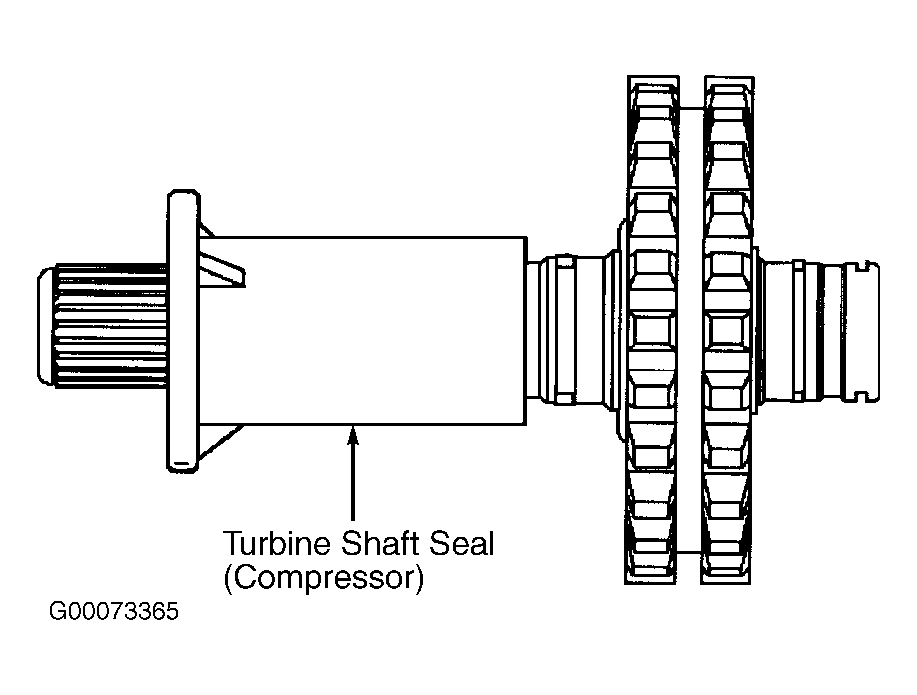

Fig 5: Sizing Turbine Shaft Oil Seal Rings (Chain Side)

Courtesy of GENERAL MOTORS CORP.

Fig 6: Installing Turbine Shaft Oil Seal Rings (Converter Side)

Courtesy of GENERAL MOTORS CORP.

Fig 7: Sizing Turbine Shaft Oil Seal Rings (Converter Side)

Courtesy of GENERAL MOTORS CORP.
