Disassembly & Reassembly

NOTE: If check ball valve does not leak, DO NOT replace.

Remove check ball valve from housing using 1/4" drift and hammer. See Fig 1. Tap in NEW check ball assembly using same drift and hammer. See Fig 2.

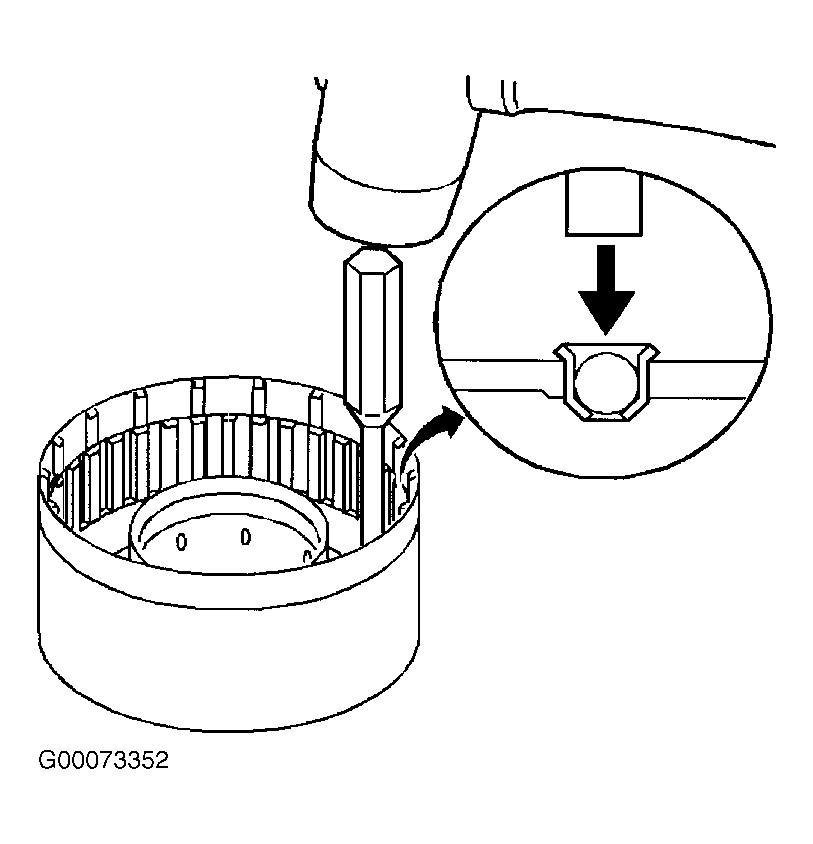

Fig 1: Removing 2nd Clutch Housing Check Ball Valve

Courtesy of GENERAL MOTORS CORP.

Fig 2: Installing 2nd Clutch Housing Check Ball Valve

Courtesy of GENERAL MOTORS CORP.
